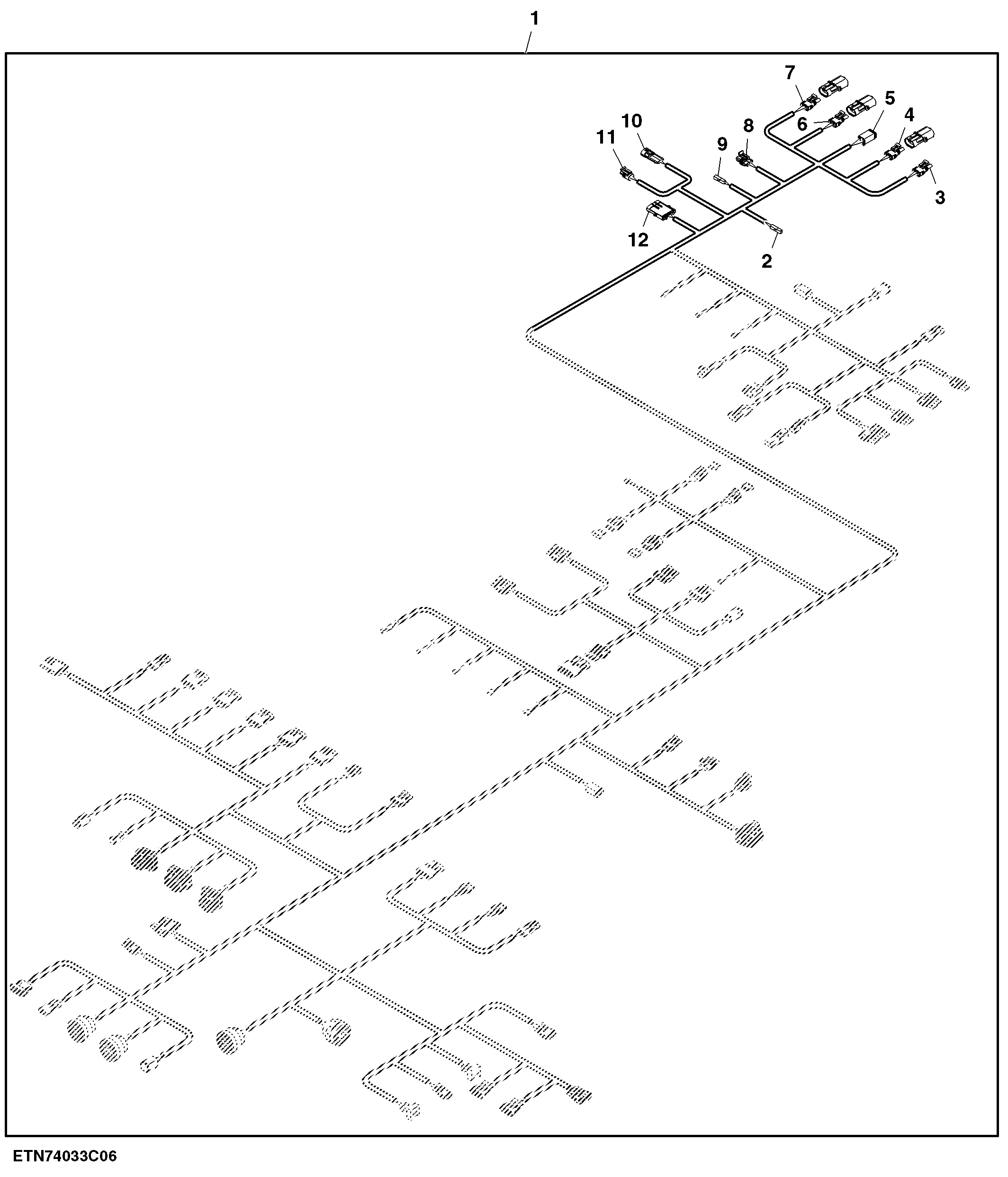

Engine Wiring Harness and Connectors (6of6)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11501375	1	Wiring Harness	-
2	0361309022	1	Diode Wiring Harness	-
3	R78060	1	Elec. Connector Terminal	-
3	57M9218	1	Elec. Connector Seal	-
3	57M9216	1	Elec. Connector Seal	-
3	RE12363	1	Electrical Connector Assy	Park Brake Solenoid
4	RE12363	1	Electrical Connector Assy	Position Tracking Solenoid
4	R78053	1	Electrical Connector Assy	-
4	57M9218	1	Elec. Connector Seal	-
4	57M9216	1	Elec. Connector Seal	-
5	57M7535	1	Elec. Connector Terminal	Brake Pressure Sensor
5	57M8196	1	Elec. Connector Housing	-
6	RE12363	1	Electrical Connector Assy	Variable Speed Solenoid
6	R78053	1	Electrical Connector Assy	-
6	R78060	1	Elec. Connector Terminal	-
6	57M9218	1	Elec. Connector Seal	-
7	R78060	1	Elec. Connector Terminal	-
7	57M9216	1	Elec. Connector Seal	-
7	IM56352	1	Elec. Connector Accessory	-
7	RE12363	1	Electrical Connector Assy	High/Low Solenoid
7	R78053	1	Electrical Connector Assy	-
8	57M7309	1	Elec. Connector Housing	Hydraulic Filter Restriction
8	57M7297	1	Elec. Connector Terminal	-
8	57M9218	1	Elec. Connector Seal	-
8	57M9190	1	Clip	-
9	0361309022	1	Diode Wiring Harness	-
10	R104919	1	Elec. Connector Terminal	-
10	57M9215	1	Elec. Connector Seal	-
10	57M7256	1	Elec. Connector Housing	Hydraulic Oil Level
11	57M7850	1	Elec. Connector Housing	Hydraulic Oil Temperature
11	57M7829	1	Elec. Connector Terminal	-
12	R78055	1	Electrical Connector Assy	Feed Roller Fwd/Rev Solenoid
12	R78058	1	Elec. Connector Terminal	-
12	57M9190	1	Clip	-
12	57M9216	1	Elec. Connector Seal	-
12	R78061	1	Elec. Connector Terminal	-

Engine Wiring Harness and Connectors (6of6)
