Engine Accessories, 6090 Engine, 6090HT804-RE533130

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	0051339118	4	Bolt	-
2	0151326578	1	Torsional Damper	-
3	11M7023	1	Cotter Pin	4 X 32 mm
4	12H302	4	Lock Washer	1/4"
5	14M7296	2	Flange Nut	M10
6	19H1948	4	Cap Screw	1/4" X 3/4"
7	19H3065	8	Cap Screw	3/8" X 2"
8	19M7662	12	Cap Screw	M10 X 30
9	19M7807	1	Screw	M10 X 60
10	19M7810	1	Screw	M10 X 80
11	19M7835	2	Screw	M10 X 35
12	19M7935	6	Cap Screw	M10 X 55
13	24H1652	6	Washer	13/32" X 11/16" X 7/64"
14	24M7028	1	Washer	10.500 X 20 X 2 mm
15	AT56657	1	Hose Clamp	-
16	CB01438063	1	Tube	-
17	CB01446322	1	Spindle	-
18	CB01487116	1	Hub	-
19	CB01489002	1	Plate	-
20	CB11481388	1	Bracket	-
21	CB01493162	1	Bulk Hose	-
22	M805013	1	Fan	-
23	R120801	1	Dipstick Tube	-
24	N14822	2	Screw	9.525 X 19.050 mm (3/8" X 3/4")
25	R135602	1	V-Belt	LGTH = 1900 mm, WIDTH = 27.86 mm
26	24H1305	20	Washer	13/32" X 13/16" X 0.065"
27	R97097	1	Hose	-
28	RE25110	2	Clamp	-
29	RE500250	1	Filler Cap	-
30	RG38467	1	Diesel Engine	SUB FOR RE533130
31	YZ16838	1	Transmission	-
32	AN221429	1	Compressor	-
33	AXT11284	1	Hose	-
34	28H3385	1	Bushing	0.423" X 0.675" X 1/2"
35	19H3742	1	Screw	3/8" X 1-5/8"
36	CXT13157	1	Hose	-
37	T24959	1	Clamp	-
38	RE535345	1	Fitting	-
38	R163559	1	O-Ring	-
39	N10215	1	Lock Nut	-
40	N153973	1	Hose Fitting	-
41	AR21837	2	Clamp	-
42	38H1135	1	Shoulder Fitting	-
43	38H1356	1	Tube Nut	-

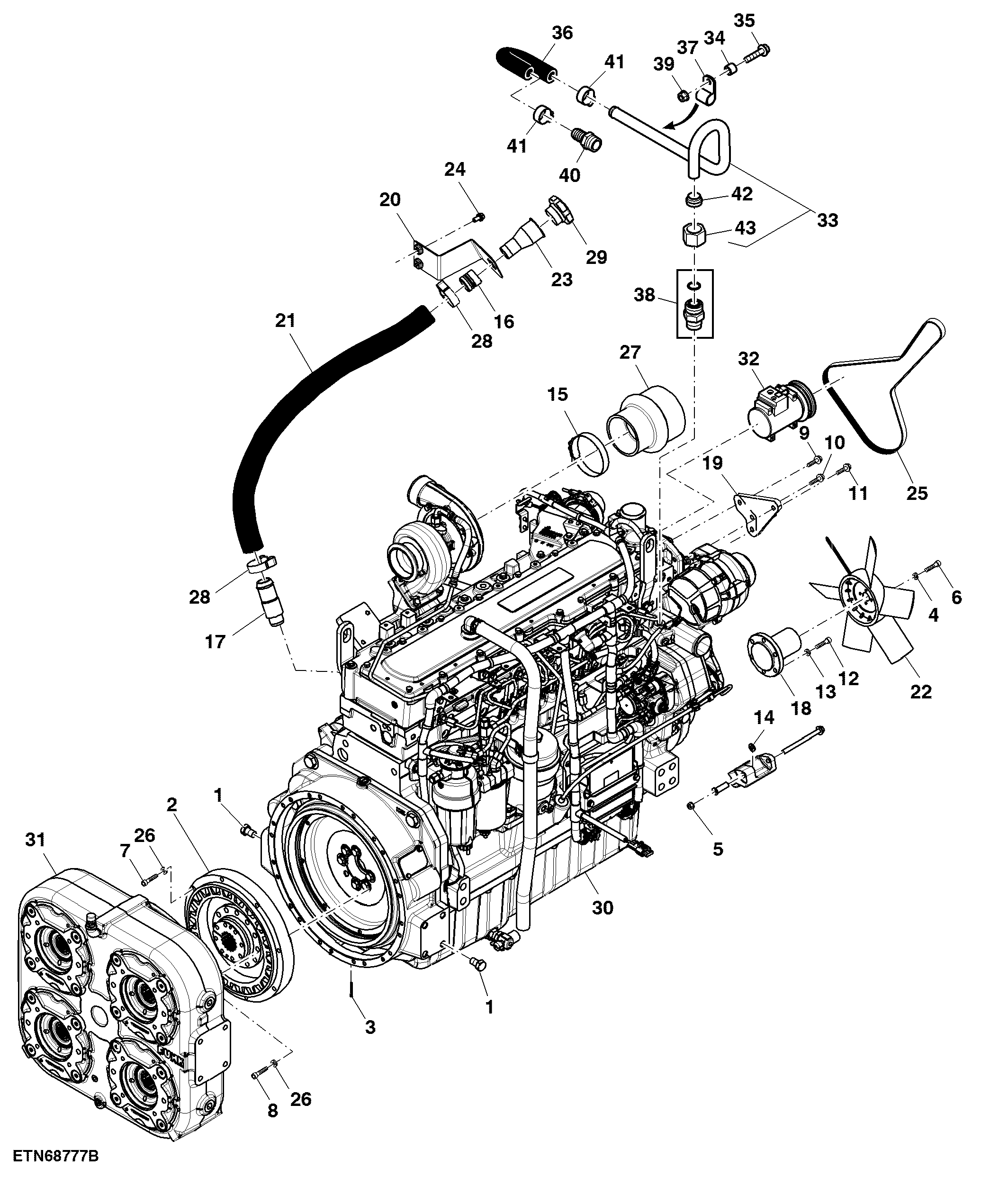

Engine Accessories, 6090 Engine, 6090HT804-RE533130
