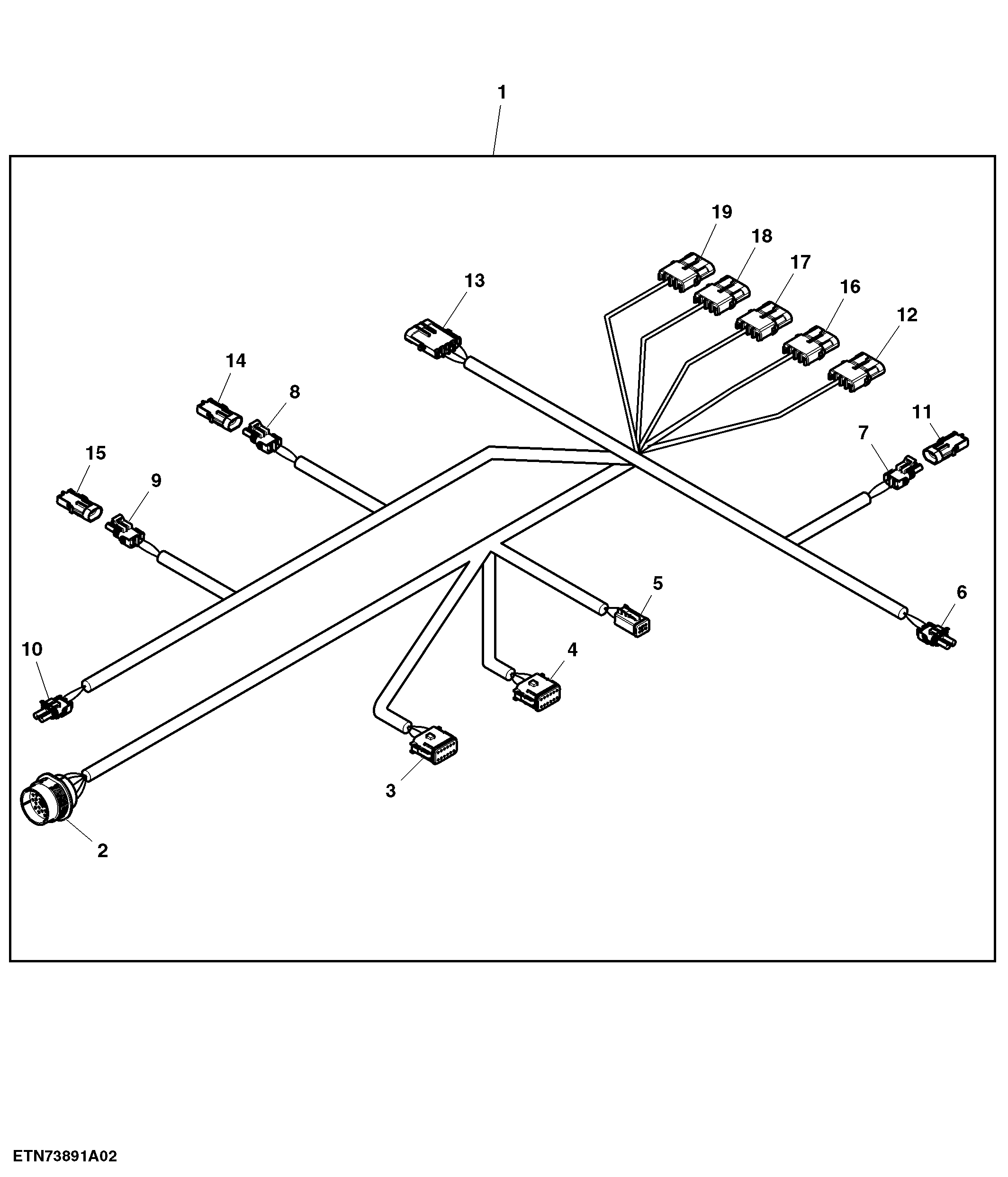

Elevator Harness and Connectors

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11502691	1	Wiring Harness	-
2	57M7752	1	Elec. Connector Housing	Extension Main Harness
2	N282070	1	Elec. Connector Terminal	-
2	N282068	1	Elec. Connector Terminal	-
3	57M7634	1	Electrical Connector Assy	Diode Module 1
3	N282070	1	Elec. Connector Terminal	-
3	N282068	1	Elec. Connector Terminal	-
3	57M7681	1	Elec. Connector Terminal	-
4	57M7634	1	Electrical Connector Assy	Diode Module 2
4	57M7681	1	Elec. Connector Terminal	-
4	N282070	1	Elec. Connector Terminal	-
5	N282070	3	Elec. Connector Terminal	-
5	57M7681	1	Elec. Connector Terminal	-
5	57M7535	1	Elec. Connector Terminal	Diode Module
6	RE12363	1	Electrical Connector Assy	Right Elevator Light
6	R78060	2	Elec. Connector Terminal	-
6	57M9216	2	Elec. Connector Seal	-
7	RE12363	1	Electrical Connector Assy	Beacon Lights
7	R78060	2	Elec. Connector Terminal	-
7	57M9216	2	Elec. Connector Seal	-
8	RE12363	1	Electrical Connector Assy	Elevator Speed Solenoid
8	R78060	2	Elec. Connector Terminal	-
8	57M9216	2	Elec. Connector Seal	-
9	57M9216	2	Elec. Connector Seal	-
9	RE12363	1	Electrical Connector Assy	Beacon Lights
9	R78060	2	Elec. Connector Terminal	-
10	RE12363	1	Electrical Connector Assy	Left Elevator Light
10	R78060	2	Elec. Connector Terminal	-
10	57M9216	2	Elec. Connector Seal	-
11	R78053	1	Electrical Connector Assy	-
12	R78053	1	Electrical Connector Assy	Secondary Extractor SV1
12	R78061	2	Elec. Connector Terminal	-
12	57M9216	2	Elec. Connector Seal	-
13	R78053	1	Electrical Connector Assy	Elevator Unload SV5
13	R78061	1	Elec. Connector Terminal	-
13	57M9216	1	Elec. Connector Seal	-
14	R78053	1	Electrical Connector Assy	-
15	R78053	1	Electrical Connector Assy	-
16	R78055	1	Electrical Connector Assy	Elevator FWD/REV SV6
16	R78061	4	Elec. Connector Terminal	-
16	57M9216	4	Elec. Connector Seal	-
17	R78055	1	Electrical Connector Assy	Elevator UP/DOWN SV3
17	R78061	4	Elec. Connector Terminal	-
17	57M9216	4	Elec. Connector Seal	-
18	R78055	1	Electrical Connector Assy	Bin Flap SV4
18	R78061	4	Elec. Connector Terminal	-
18	57M9216	4	Elec. Connector Seal	-
19	R78055	1	Electrical Connector Assy	Secondary Hood Rotate SV2
19	R78061	4	Elec. Connector Terminal	-
19	57M9216	4	Elec. Connector Seal	-
