Открытый узел

Air Conditioner and Heating Components, Cab

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7264	2	Lock Nut	M4
2	14M7303	2	Flange Nut	M6
3	19M7796	3	Screw	M6 X 30
4	19M7862	20	Screw	M6 X 20
5	24M7117	2	Washer	4.300 X 9 X 0.800 mm
6	37M7089	1	Screw	M6 X 12
7	AE73290	1	Hose	LGTH = 1800 mm
8	AE73291	1	Hose	LGTH = 1800 mm
9	AH89557	1	Clip	-
10	AH90990	3	Clip	-
11	AH125505	1	Resistor	-
12	AH134884	1	Support	-
13	AH144084	1	Switch	Low Pressure
14	AH150260	1	Heat Exchanger	-
15	AH167731	1	Blower Motor	-
16	AH203871	1	Valve	Expansion
17	AN372116	1	Wiring Harness	-
18	AT301492	1	Flow Control Hyd. Valve	-
19	AT498724	1	Thermostat	12 V, SUB FOR AT427916 AND AT433043
20	CB01482559	1	Blower Motor	-
21	H114038	3	Screw	-
22	H115031	1	Cover	-
23	H115521	4	Isolator	Fan Motor
24	H118619	1	Seal	-
25	H119362	26	Screw	-
26	H123998	4	Screw	-
27	H124185	1	Fan	-
28	H126590	1	Cover	-
29	H127978	1	Dust Shield	-
30	H129887	2	Absorber	-
31	H130091	1	Shield	-
32	H146429	1	Fitting	-
33	H153721	1	Coupling	-
34	H153722	1	Coupling	-
35	H153888	1	Hydraulic Hose	LGTH = 340 mm
36	H153889	1	Hose	LGTH = 1500 mm
37	H156922	2	Hose Clamp	-
38	H156923	4	Hose Clamp	-
39	H161021	1	Housing	-
40	-	1	Part 40	CTL 1800 mm, MF TY22330
41	H169555	1	Housing	-
42	H169859	1	Housing	-
43	H173793	1	Housing	-
44	H177592	2	Housing	-
45	H228178	1	Blower Fan	-
46	R10093	1	O-Ring	-
47	R33259	2	O-Ring	-
48	R50456	1	Grommet	-
49	R50636	1	Grommet	-
50	R113050	1	O-Ring	-

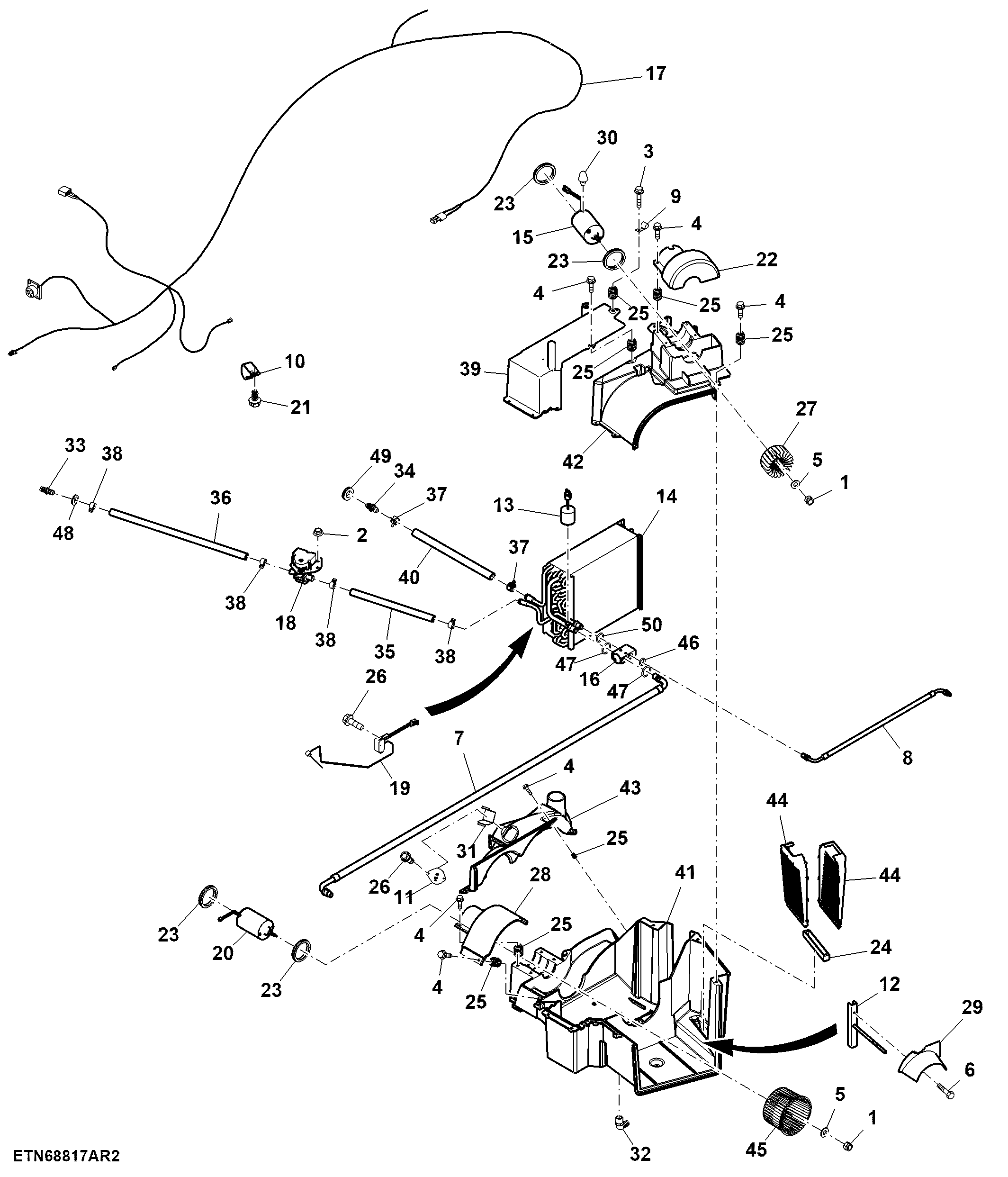

Air Conditioner and Heating Components, Cab
