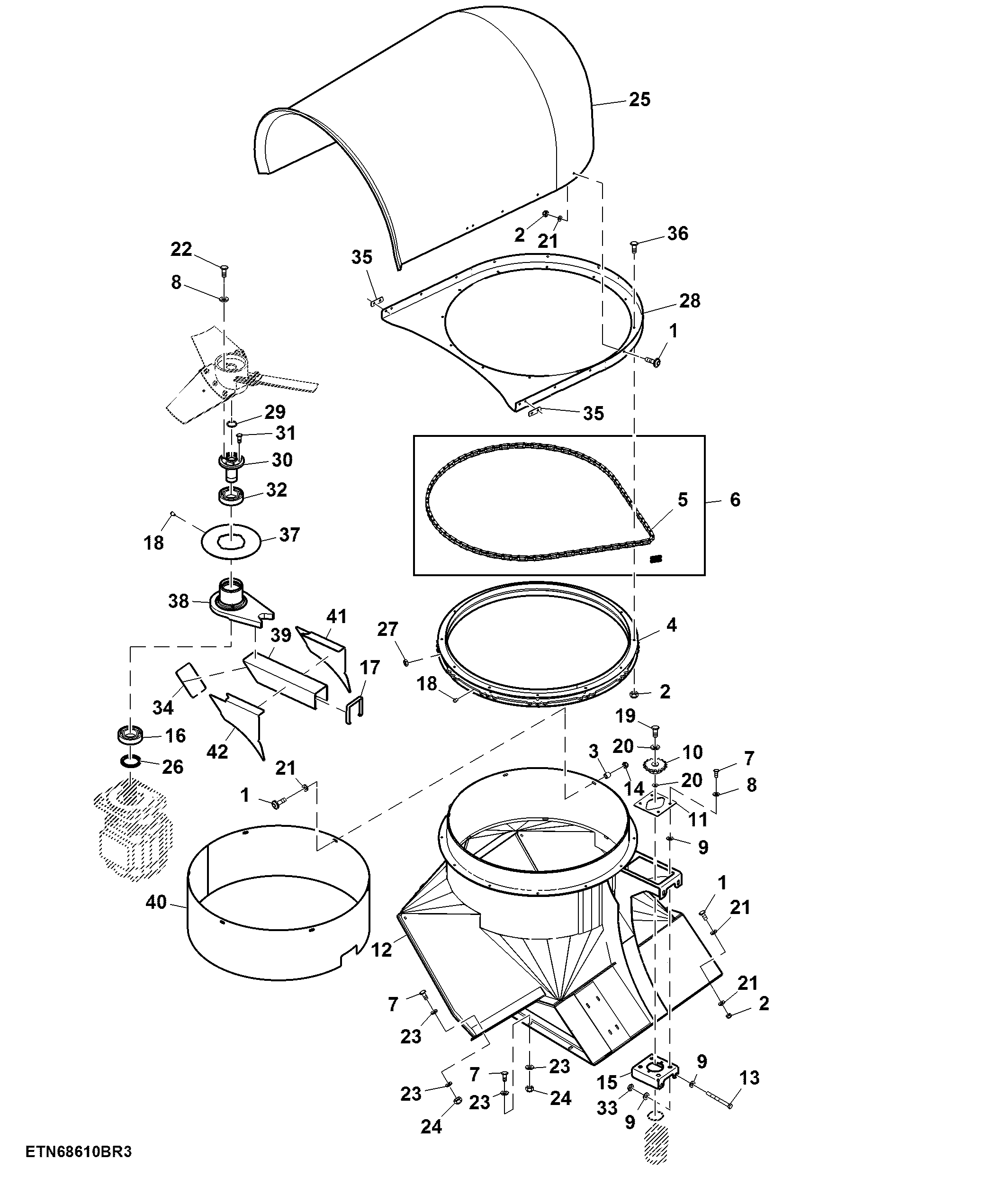

Secondary Extractor GP, Housing, Option 6410, 6420

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3239	6	Cap Screw	3/8" X 1-1/4"
2	T11234	30	Lock Nut	9.525 mm (3/8")
3	CB01452528	6	Spacer	-
4	CB11472855	1	Rotator	-
5	0211308168	1	Roller Chain	-
6	SW2060COUS	1	Chain Link	-
7	19H2898	12	Cap Screw	1/2" X 1-1/4"
8	12H301	10	Lock Washer	1/2"
9	0050021074	8	Washer	-
10	0220286626	1	Chain Sprocket	-
11	0290286247	1	Clamp	-
12	CB11491427	1	Housing	SUB FOR CB11472858
13	19H2218	2	Cap Screw	1/2" X 5"
14	T54568	4	Lock Nut	9.525 mm (3/8")
15	CB11473017	1	Sliding Shield	-
16	JD9279	1	Ball Bearing	-
17	CB01492975	1	Sealing Trim	-
18	JD7844	2	Lubrication Fitting	-
19	19H1914	1	Cap Screw	1/4" X 1"
20	24H1776	1	Washer	5/16" X 47/64" X 0.065"
21	24H1219	28	Washer	7/16" X 1" X 0.083"
22	19H2472	6	Cap Screw	1/2" X 1", Use Loctite 271, Torque To 88 Ft-Lbs
23	24H1211	16	Washer	9/16" X 1-3/8" X 0.105"
24	BP12214	8	Lock Nut	12.700 mm (1/2")
25	CB01486999	1	Hood	SUB FOR CB01412238
26	0470049286	1	Snap Ring	-
27	14H649	14	Nut	1/4"
28	CB11488003	1	Mounting Parts	Mount Assy-Secondary Extractor
29	0470049289	1	Plug	-
30	0251308308	1	Adapter	-
31	22H841	1	Set Screw	1/4" X 1/4"
32	0121328953	1	Cylindrical Roller Bearing	-
33	14H826	2	Nut	1/2"
34	CB01492975	1	Sealing Trim	-
35	CB01488010	2	Sheet	-
36	19H2676	12	Cap Screw	3/8" X 1"
37	0290209094	1	Cover	-
38	1190209095	1	Lug	-
39	CB01424813	1	Structural Tube	-
40	CB01452630	1	Wear Ring	-
41	CB01491018	1	Gusset	LH
42	CB01491019	1	Gusset	RH
