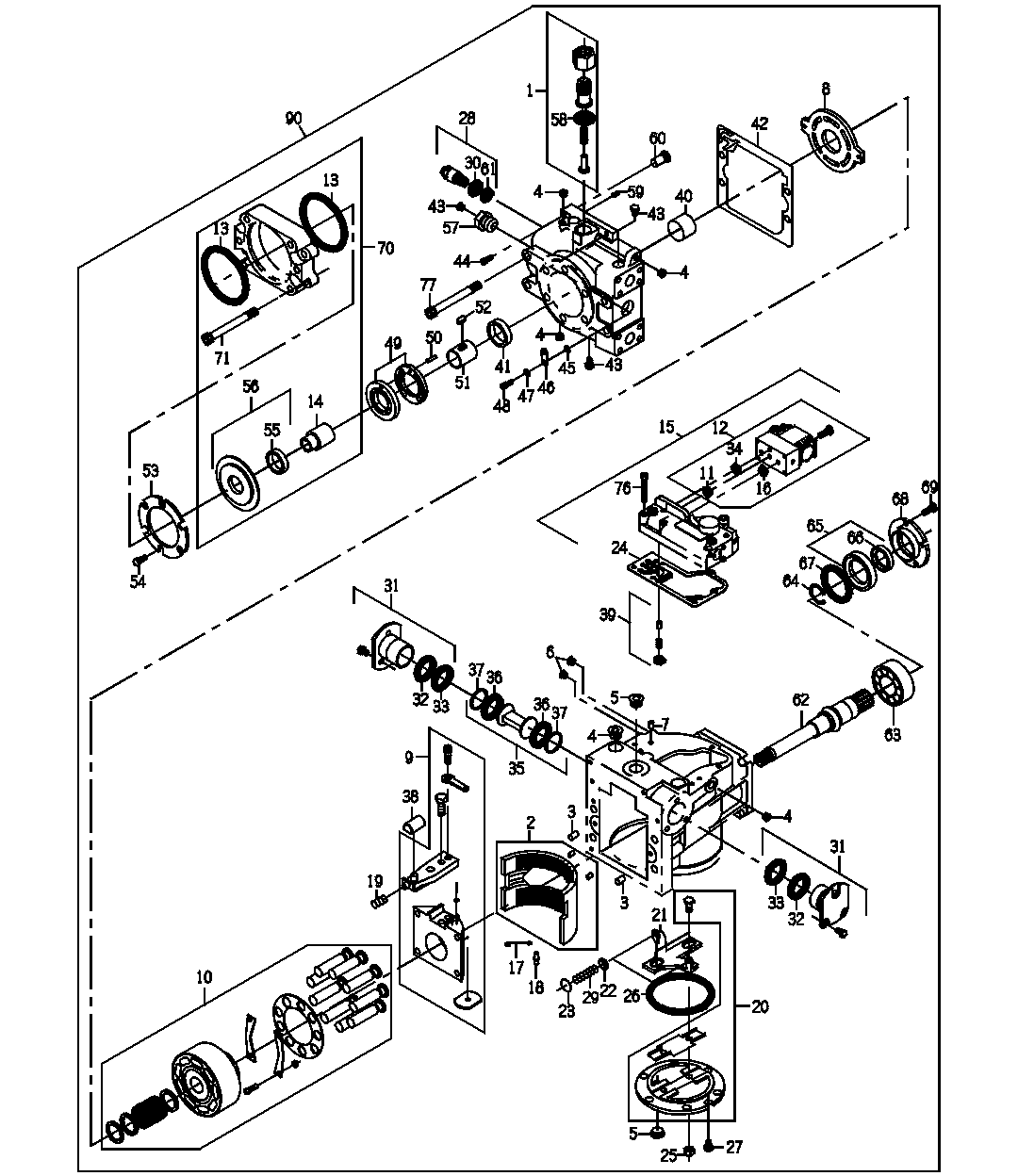

PUMP, GROUND DRIVE, LEFT {WHEEL}(CONT.)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
40	N203487	1	Bushing	-
41	N203486	1	Bushing	-
42	N203484	1	Gasket	(INCLD IN 0631333093 FLANGE KIT &amp; CB01487605 SEAL KIT)
43	R27218	3	Fitting Plug	-
44	T210934	2	Cap Screw	-
45	AT214860	1	Spacer	-
46	AT214861	1	Lug	-
47	24H1136	2	Washer	11/32" X 11/16" X 0.065"
48	19M8123	1	Screw	M8 X 45
49	0631325608	1	Pump Repair Kit	-
50	0631308911	1	Pin	-
51	0631325609	1	Shaft	-
52	N203496	1	Shaft Key	-
53	N316532	1	Plate	(SUB FOR 0631305844)
54	T155680	6	Screw	-
55	N203486	1	Bushing	(INCLD IN AT216565 PUMP CHARGE COVER &amp; 0631333093 FLANGE KIT)
56	AT216565	1	Cover	(INCLD IN 0631333093 FLANGE KIT)
57	0071339071	1	Plug	-
58	T165493	1	O-Ring	(INCLD IN AT214824 PRESSURE RELIEF VALVE &amp; CB01487605 SEAL KIT)
59	R151095	2	Plug	-
60	AT214853	2	Check Valve	-
61	N203491	2	O-Ring	(INCLD IN AN202212 VALVE &amp; CB01487605 SEAL KIT)
62	N203483	1	Shaft	-
63	AN205354	1	Ball Bearing	-
64	N208924	1	Snap Ring	-
65	AN204825	1	Seal Kit	-
66	N203503	1	Seal	(INCLD IN AN204825 SEAL KIT)
67	N203494	1	O-Ring	-
68	N208939	1	Retainer	-
69	19M8627	4	Screw	M6 X 20
70	0631333093	1	Flange	-
71	19M9507	4	Screw	(INCLD IN 0631333093 FLANGE KIT) M12 X 120
76	19M8541	6	Screw	(INCLD IN 0631356771 VALVE) M6 X 50
77	0631309445	4	Bolt	-
90	CB11487661	1	Hydraulic Pump	PUMP, GROUND DRIVE, LEFT {WHEEL}
98	CB01487605	1	Seal Kit	-

PUMP, GROUND DRIVE, LEFT {WHEEL}(CONT.)
