Открытый узел

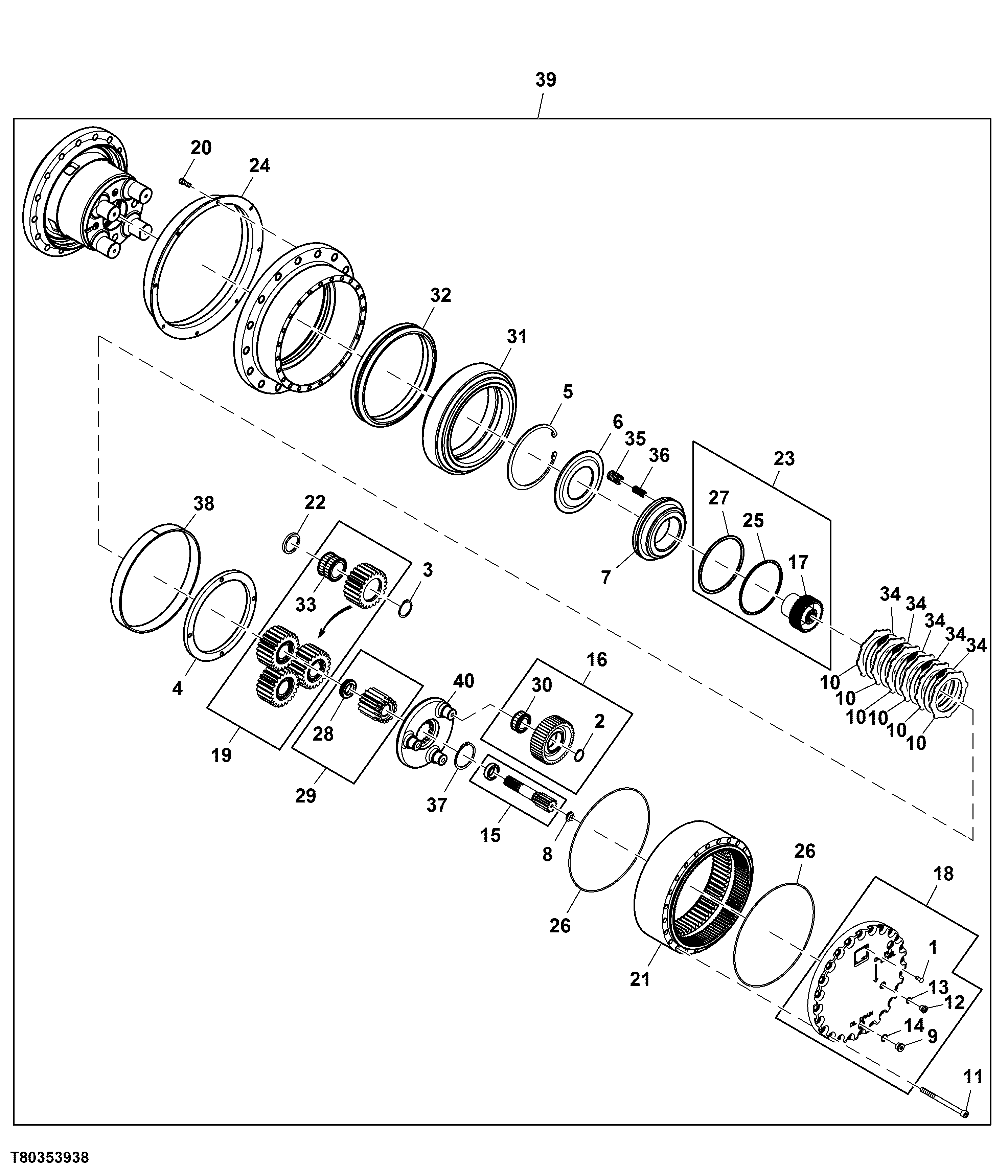

Planetary Final Drive Components (100987 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	25M3827	2	Groove Pin	3 X 8 mm
2	40M1831	3	Snap Ring	-
3	40M1837	4	Snap Ring	-
4	CE19652	1	Lock Nut	-
5	CE19689	1	Snap Ring	-
6	CE20403	1	Washer	-
7	CE21711	1	Piston	SUB FOR CE20406; ALSO ORDER CE21705 AND CE21707
8	CE31550	1	Bushing	SUB FOR CE20498; ALSO ORDER CE21706
9	CE20502	2	Drain Plug	ALSO ORDER CE20775
10	CE20586	6	Clutch Plate	ALSO ORDER (5) DE20632, CE21705 AND CE21707
11	CE20622	24	Socket Head Screw	-
12	CE20714	1	Drain Plug	ALSO ORDER CE20774
13	CE20774	1	O-Ring	-
14	CE20775	2	O-Ring	-
15	DE30821	1	Gear Kit	-
16	DE30822	3	Gear Kit	USE WITH DE20510
16	DE20822	3	Planetary Assembly	USE WITH DE31312 OR DE31284
17	CE20827	1	Splined Coupling	-
18	DE30824	1	Cover	ALSO ORDER CE21706
19	DE30825	1	Gear Kit	-
20	19M7657	8	Screw	M8 X 25, USE WITH DE20510 OR DE31312
21	CE31716	1	Ring Gear	-
22	CE20843	4	Washer	-
23	CE33936	1	Splined Coupling	ALSO ORDER CE20827, CE21705 AND CE21707; SUB FOR CE32749
24	CE32724	1	Plate	USE WITH DE20510 OR DE31312
25	CE21705	1	O-Ring	-
26	CE21706	2	O-Ring	-
27	CE21707	1	O-Ring	-
28	CE22079	1	Thrust Washer	ALSO ORDER CE21706
29	DE30823	1	Gear Kit	-
30	DE19913	3	Cylindrical Roller Bearing	ALSO ORDER 40M1831 AND CE21706
31	DE19918	1	Ball Bearing	-
32	DE20236	1	Seal	ALSO ORDER CE19652, (4) 40M1837 AND (2) CE21706
33	DE20631	4	Cylindrical Roller Bearing	ALSO ORDER 40M1837 AND (2) CE21706
34	DE20632	5	Brake Disk	ALSO ORDER (6) CE20586, CE21705 AND CE21707
35	T204336	12	Compression Spring	-
36	T204337	12	Compression Spring	-
37	40M7065	1	Snap Ring	-
38	CE19872	1	Spacer	-
39	DE31817	1	Drive	SUB FOR DE31284, DE31312 OR DE20510
39	KXT10049	1	Shield Kit	INCLUDES (8) 19M7657,(16) 19M8002,(16) 19M8639,(2) 19M7969,(2) T155766,(2) CXT12252,(2) CXT12272,(2) 19M7946,(2) T78313,CE32724; USE WITH DE31312
40	CE20829	1	Planet Pinion Carrier	-

Planetary Final Drive Components (100987 - )

Нет текстового описания
