Lines GP, Elevator, Pump To Swing Table (090588 - 090755)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11456057	1	Hydraulic Hose	-
2	AT205083	2	Cap	-
3	X6C5OX-S	2	Elbow Fitting	-
4	0881342678	1	Hydraulic Hose	-
5	X41T3-16-16	1	Elbow Fitting	-
6	X16S6X-S	1	Tee Fitting	(SUB FOR 0071342068)
7	X16-12F5OX-S	1	Adapter Fitting	-
8	CB11437898	1	Pressure Relief Valve	-
9	CB11437600	1	Hydraulic Hose	-
10	R26448	2	O-Ring	(INCLD IN 0070028756 FITTING) 11.887 X 1.981 mm (0.468" X 5/64")
11	X16WTX-WLN-S	4	Union Fitting	(SUB FOR 0071341066)
12	CB11438015	1	Hydraulic Hose	-
13	CB11438016	1	Hydraulic Hose	-
14	U12547	4	O-Ring	(INCLD IN 0070033020 &amp; 0071341813 FTGS, AT32331 ELBOW FTG, R27175 DRAIN PLUG) 23.470 X 2.946 mm (0.924" X 0.116")
15	AT32331	1	Elbow Fitting	-
16	R27175	1	Drain Plug	-
17	CB01462657	1	Hyd Actuated Control Valve	INCL IN 8
18	XPD36BTX	2	Diagnostic Coupling	-
19	CB11438017	1	Hydraulic Hose	-
20	N111995	2	Elbow Fitting	-
21	19H2732	2	Cap Screw	3/8" X 2-3/4"
22	24H1219	3	Washer	7/16" X 1" X 0.083"
23	T11234	3	Lock Nut	9.525 mm (3/8")
24	T153064	1	Clamp	-
25	CB11437981	1	Hydraulic Hose	-
26	X8-12F5OX-S	1	Adapter Fitting	-
27	AT54268	1	Tee Fitting	-
28	CB01462662	1	Hyd Actuated Control Valve	(INCLD IN CB11437898 PRESSURE RELIEF VALVE)
29	AT209899	2	Seal Kit	(INCLD IN CB01462657 &amp; CB01462662 VALVES)
30	CB11482411	1	Hydraulic Hose	-
31	X8WTX-WLN-S	1	Union Fitting	-

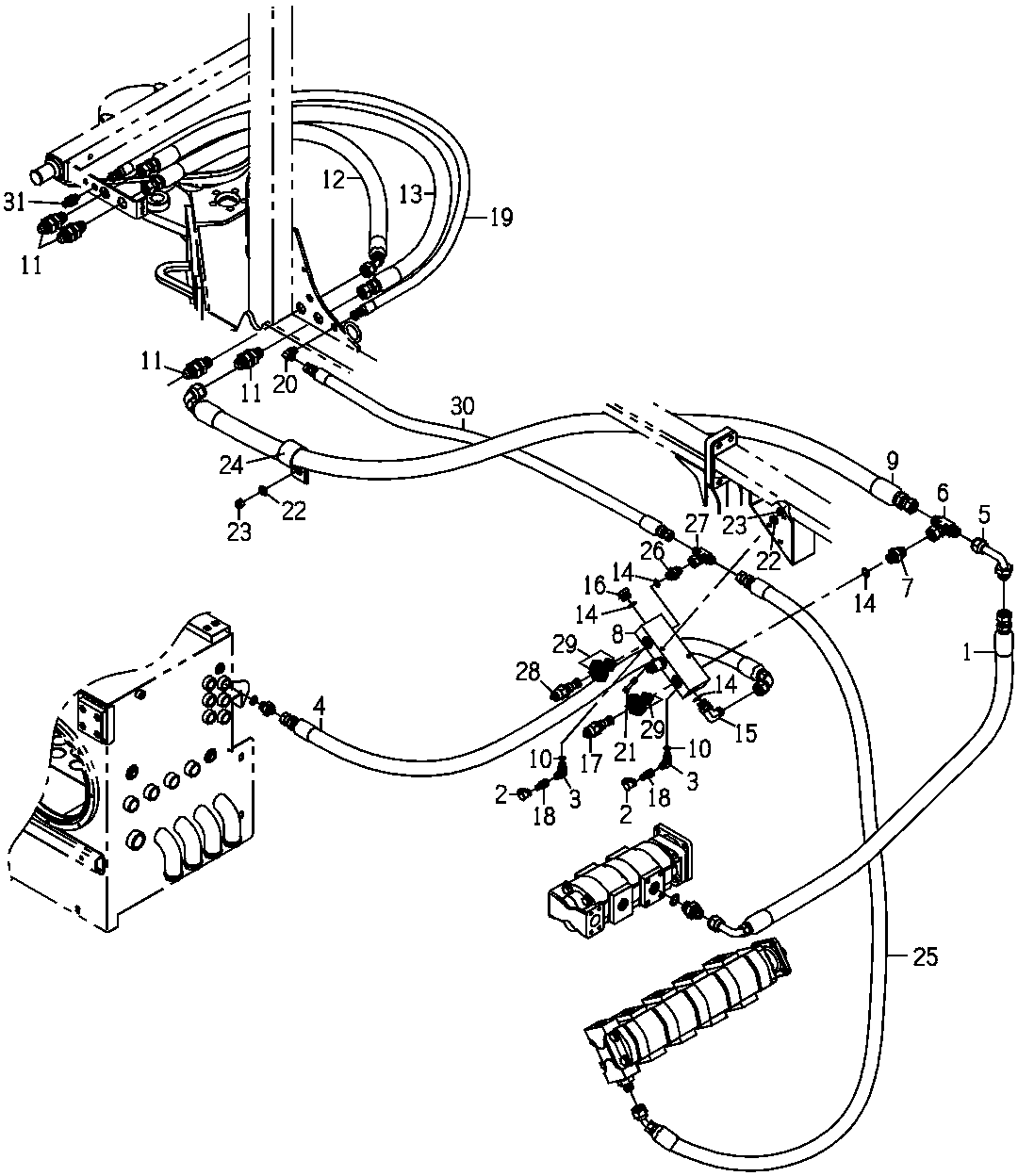

Lines GP, Elevator, Pump To Swing Table (090588 - 090755)

Нет текстового описания
