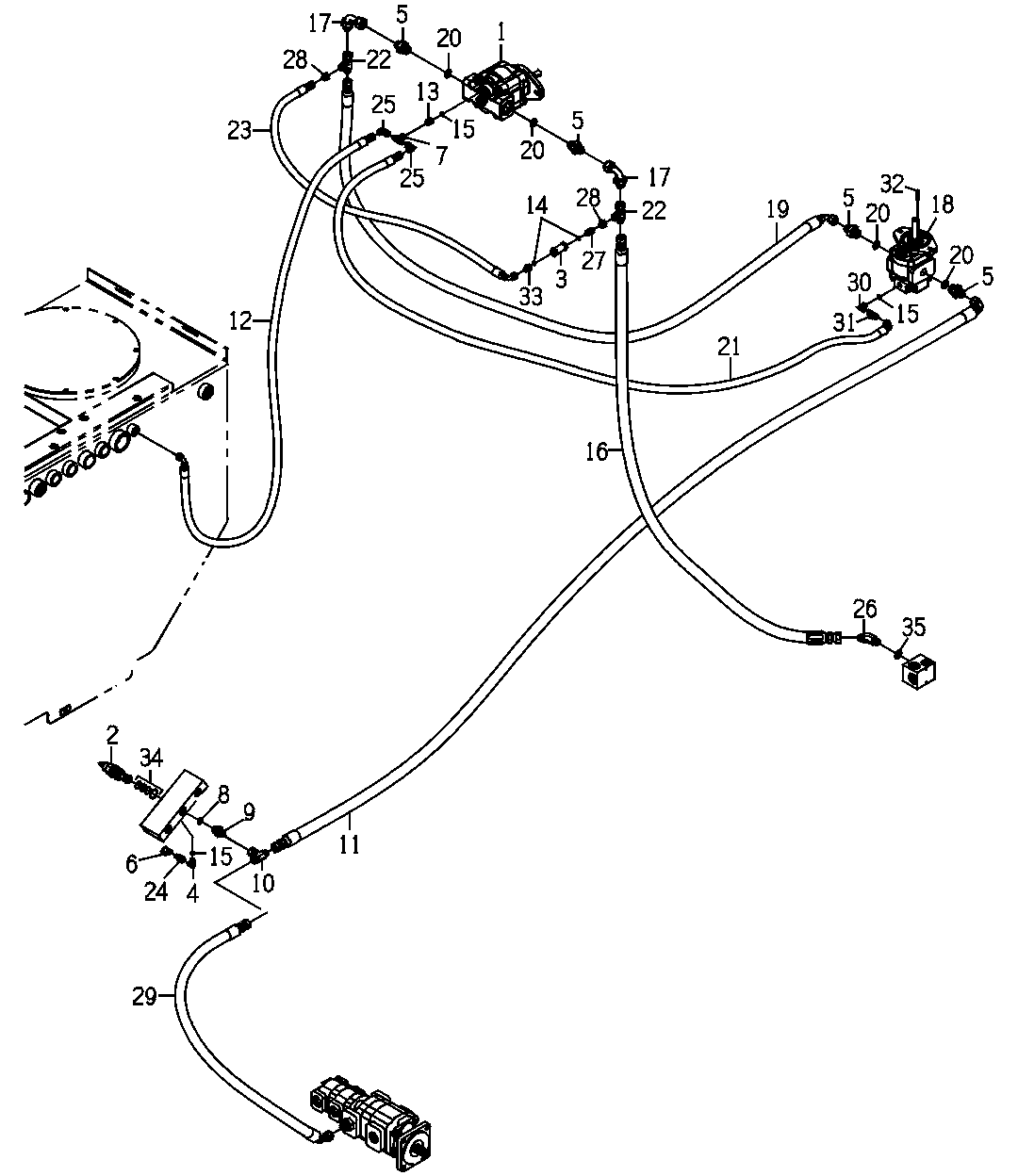

Lines GP, Cooling Package Fan-Pump To Motor ( - 090587)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11481206	1	Hydraulic Motor	-
2	CB01462662	1	Hyd Actuated Control Valve	-
3	0021364180	1	Check Valve	-
4	X6C5OX-S	1	Elbow Fitting	SUB FOR 0070028756
5	X16F5OX-S	4	Adapter Fitting	-
6	AT205083	1	Cap	-
7	AT54268	1	Tee Fitting	-
8	U12547	1	O-Ring	(INCLD IN 0070033020 FITTING) 23.470 X 2.946 mm (0.924" X 0.116")
9	0070033020	1	Adapter Fitting	-
10	X16S6X-S	1	Tee Fitting	SUB FOR 0071342068
11	0881344018	1	Hydraulic Hose	-
12	0881341509	1	Hydraulic Hose	-
13	X8-6F5OX-S	1	Adapter Fitting	SUB FOR 0070006612
14	R26375	2	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
15	R26448	3	O-Ring	(INCLD IN 0070028756 &amp; 0070006612 FITTINGS, AW22821 ELBOW FITTING) 11.887 X 1.981 mm (0.468" X 5/64")
16	CB11478721	1	Hydraulic Hose	LGTH = 983 mm
17	X39T3-16-16	2	Elbow Fitting	SUB FOR 0071341057
18	CB11453458	1	Motor	-
19	CB11462315	1	Hydraulic Hose	LGTH = 1390 mm
20	R29936	4	O-Ring	(INCLD IN CB01510018 FITTING) 29.743 X 2.946 mm (1.171" X 0.116")
21	CB11487657	1	Hydraulic Hose	-
22	X16R6X-S	2	Tee Fitting	SUB FOR 0071341097
23	0881347664	1	Hydraulic Hose	-
24	XPD36BTX	1	Diagnostic Coupling	-
25	AH75164	2	Elbow Fitting	-
26	X16V5OX-S	1	Elbow Fitting	-
27	AN280978	1	Adapter Fitting	-
28	0071342275	2	Adapter Fitting	-
29	CB11437868	1	Hydraulic Hose	-
30	AW22821	1	Elbow Fitting	-
31	AN33434	1	Tee Fitting	SUB FOR CB01510015
32	CB01447210	1	Shaft Key	-
33	R27237	1	Fitting	-
34	AT209899	1	Seal Kit	(INCLD IN CB01482662 VALVE)
35	U13639	1	O-Ring	(INCLD IN X16V5OX-S FITTING)

Lines GP, Cooling Package Fan-Pump To Motor ( - 090587)
