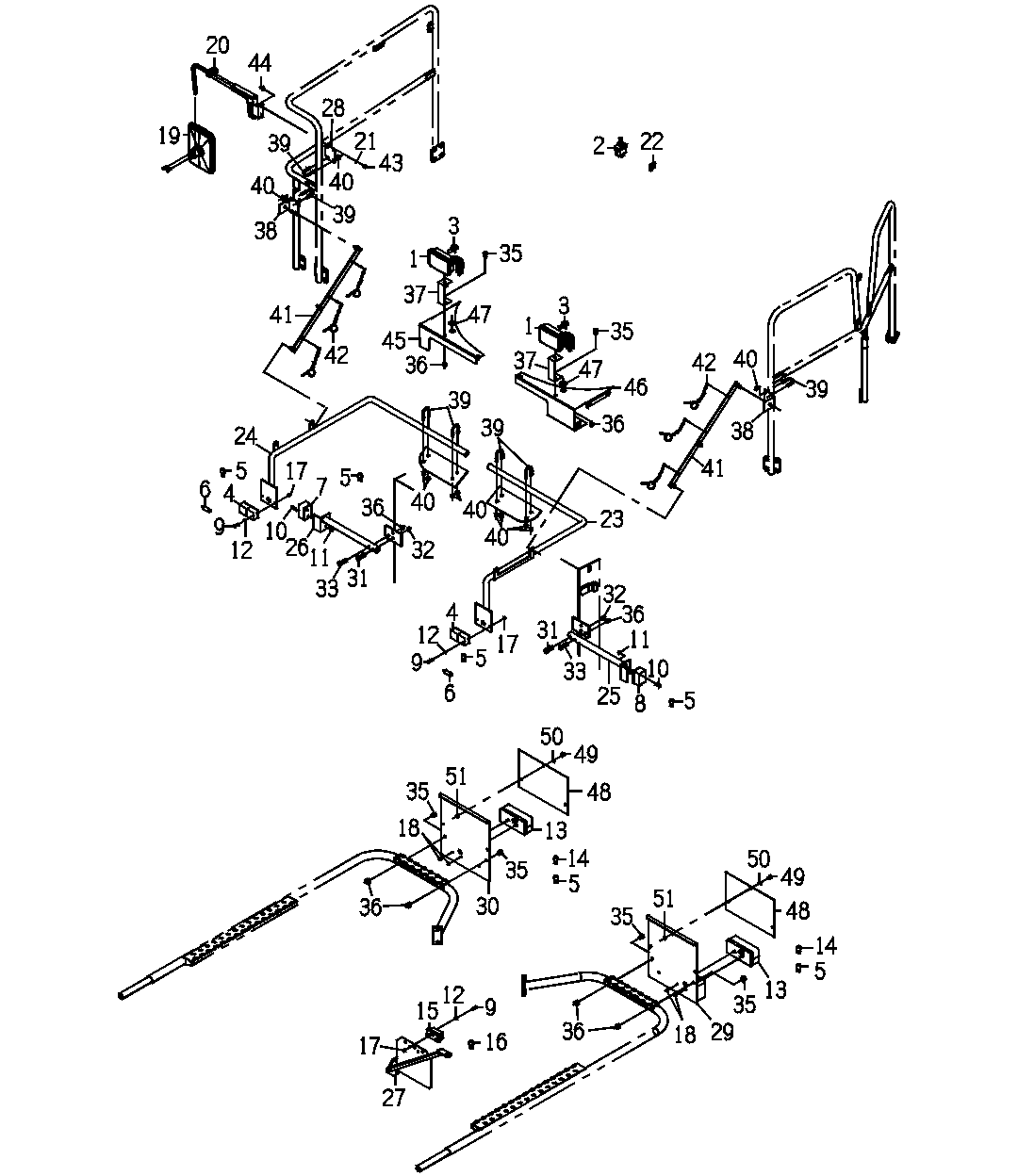

LIGHT GP, CE ROADWAY (OPTION 3020){WHEEL}

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11465649	2	Headlamp Wiring Harness	-
2	AT50820	1	Toggle/Rocker Switch	-
3	57M7166	2	Bulb	(INCLD IN CB11465649 HEADLAMP WIRING HARNESS)
4	AZ42982	2	Lamp	-
5	R133301	4	Bulb	-
5	R133301	2	Bulb	(INCLD IN AL112964 TAIL LAMP)
6	57M7492	2	Bulb	-
7	AL24548	1	Turn Signal Lamp	-
8	AL24547	1	Turn Signal Lamp	-
9	21H1345	6	Screw	0.164" X 5/8"
10	CB01439397	4	Bolt	-
11	T12847	4	Lock Nut	4.826 mm (0.190")
12	14H605	6	Nut	0.164"
13	AL112964	2	Tail Lamp	-
14	M136357	2	Bulb	-
15	AL33161	1	Lamp	-
16	57M7013	1	Bulb	-
17	12H315	4	Lock Washer	0.164"
18	N207951	4	Lock Nut	M5
19	AL78021	1	Rear View Mirror	-
20	AL77484	1	Bracket	-
21	24H1776	2	Washer	5/16" X 47/64" X 0.065"
22	57M8163	1	Fuse	-
23	CB11467065	1	Pipe	-
24	CB11467066	1	Pipe	-
25	CB11464656	1	Bracket	-
26	CB11464749	1	Bracket	-
27	CB11481247	1	Brace	-
28	CB01467437	1	Plate	-
29	CB11464657	1	Mounting Parts	LEFT HAND, REAR LIGHT MOUNT
30	CB11464750	1	Mounting Parts	RIGHT HAND, REAR LIGHT MOUNT
31	19H2644	2	Cap Screw	1/2" X 2-1/2"
32	BP12214	2	Lock Nut	12.700 mm (1/2")
33	19H3704	2	Cap Screw	3/8" X 2-1/4"
35	19H2676	6	Cap Screw	3/8" X 1"
36	T11234	10	Lock Nut	9.525 mm (3/8")
37	CB01465604	2	Bracket	-
38	CB01466908	2	Bracket	-
39	CB01420399	10	U-Bolt	-
40	T11234	20	Lock Nut	9.525 mm (3/8")
41	CB11467064	2	Bar	-
42	0131302893	6	Pin	-
43	T16464	2	Lock Nut	7.925 mm (5/16")
44	19H2705	2	Cap Screw	5/16" X 1"
45	CB11472524	1	Seal	-
46	CB11472523	1	Seal	-
47	H65107	2	Grommet	-
48	CB11481155	2	Sign	-
49	19H2664	6	Cap Screw	5/16" X 3/4"
50	24H1122	6	Washer	3/8" X 7/8" X 0.083"
51	T16464	6	Lock Nut	7.925 mm (5/16")
