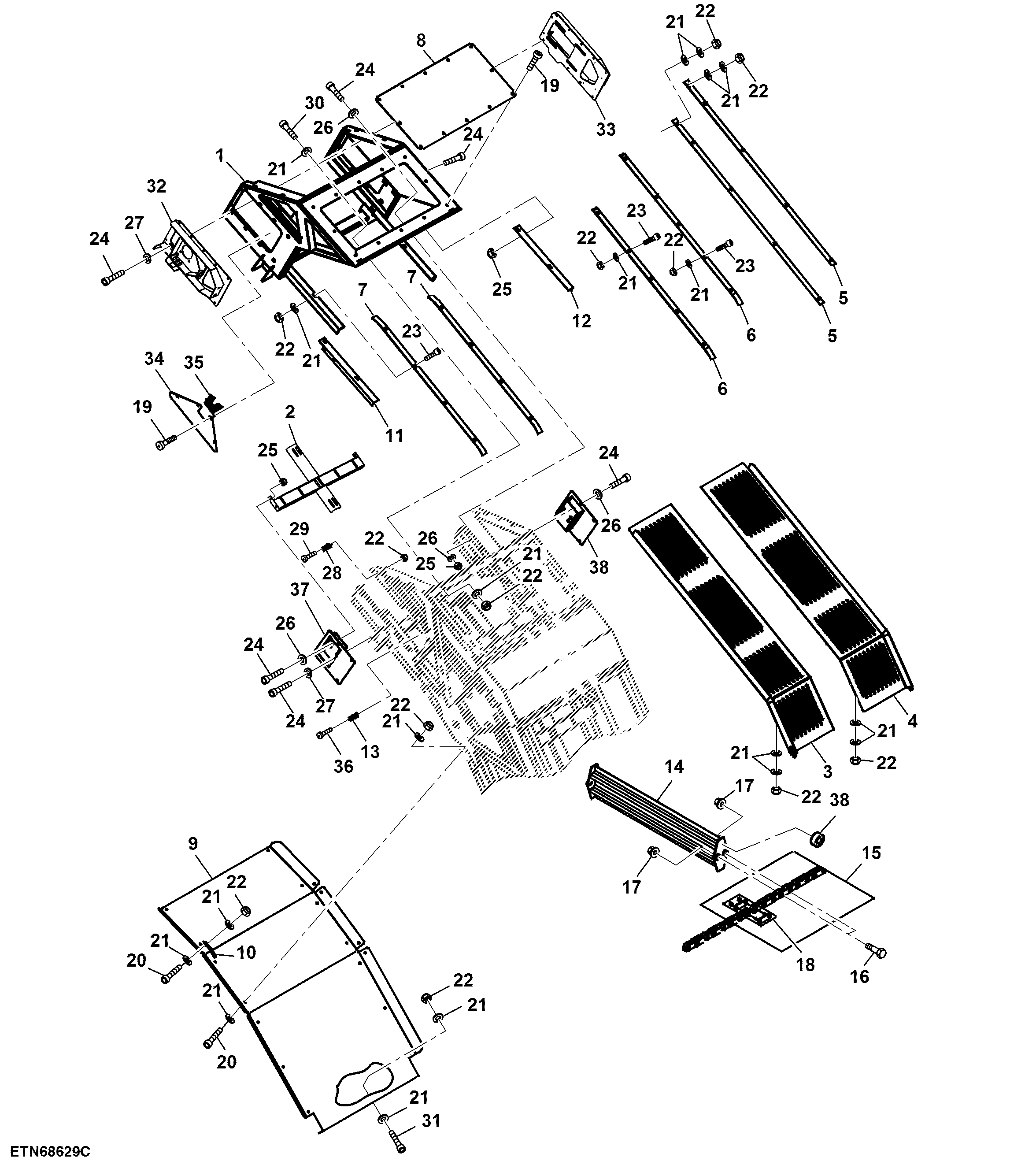

Elevator GP, Extension 24 Inches (Option 6520) {Track}

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11473165	1	Frame	-
2	CB11473167	1	Brace	-
3	CB11473168	1	Floor	-
4	CB11473169	1	Floor	-
5	CB11439642	2	Wear Plate	-
6	CB01439641	2	Wear Plate	-
7	CB01439640	2	Wear Plate	-
8	CB01473174	1	Shield	-
9	CB01472891	1	Guard	-
10	CB01472893	4	Retainer	-
11	CB01479056	1	Rail	-
12	CB01479058	1	Rail	-
13	T74416	1	Clamp	-
14	CB11464244	2	Slat	-
15	CB01445095	2	Roller Chain	(INCLD IN CB11407067 ROLLER CHAIN)
16	0051377934	8	Bolt	-
17	N190216	8	Lock Nut	(SUB FOR 0051379027)
17	N190216	8	Lock Nut	-
18	CB11407067	4	Roller Chain	(INCLD IN CB01445095 CHAIN KIT)
19	H77932	12	Screw	9.525 X 15.700 mm (3/8" X 0.618")
20	19H2676	22	Cap Screw	3/8" X 1"
21	24H1219	140	Washer	7/16" X 1" X 0.083"
21	24H1219	244	Washer	7/16" X 1" X 0.083"
22	T11234	82	Lock Nut	9.525 mm (3/8")
23	CB01473054	18	Cap Screw	-
24	19H2898	54	Cap Screw	1/2" X 1-1/4"
25	BP12214	12	Lock Nut	12.700 mm (1/2")
26	24H1211	14	Washer	9/16" X 1-3/8" X 0.105"
27	12H301	44	Lock Washer	1/2"
28	AT176905	1	Clamp	-
29	N10214	1	Self-Locking Screw	9.525 X 25.400 mm (3/8" X 1")
30	19H3239	4	Cap Screw	3/8" X 1-1/4"
31	19H2732	3	Cap Screw	3/8" X 2-3/4"
32	CB11474083	1	Base	RH
33	CB11474086	1	Support	LH
34	CB01473874	1	Cover	-
35	CB01492977	5	Sealing Trim	-
36	N10214	5	Self-Locking Screw	9.525 X 25.400 mm (3/8" X 1")
37	CB11478301	2	Support	-
38	CB01438247	8	Boss	-

Elevator GP, Extension 24 Inches (Option 6520) {Track}
