Electrical GP, Operator Armrest {Wheel} ( - 090755)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11489676	1	Wiring Harness	-
1	CB11467353	1	Wiring Harness	-
2	CB01489674	2	Switch	-
2	RE68803	1	Toggle/Rocker Switch	-
3	CB01484681	1	Stop	-
4	0361350754	2	Toggle/Rocker Switch	-
5	M115279	4	Plug	-
6	0361350753	3	Toggle/Rocker Switch	-
7	CB01426967	1	Lens	-
8	CB11427649	1	Toggle/Rocker Switch	-
9	CB01427380	1	Lamp	-
10	CB01426964	1	Switch	-
11	CB01427338	1	Sheet	(Sub For CB01435654)
12	CB01472530	1	Label	SWITCH PANEL
13	CB01440254	1	Housing	-
14	CB11433003	1	Control Console	-
15	0051334238	1	Bolt	-
16	21H1148	3	Screw	0.190" X 3/4"
17	H170373	1	Plug	-
18	AR56766	1	Housing	-
19	CB01436190	1	Cover	-
20	R126355	2	Screw	-
21	AH147170	1	Cushion	-
22	AR27940	1	Link Chain	-
23	H111706	6	Screw	-
24	CB11426499	1	Multi-Functional Controller	-
25	CB11442206	1	Potentiometer	-
26	CB11463696	1	Potentiometer	-
27	0281349274	1	Knob	-
28	37M7084	4	Screw	M8 X 25
29	R117569	3	Screw	-
30	T12847	4	Lock Nut	4.826 mm (0.190")
31	24H1753	7	Washer	1/4" X 9/16" X 0.049"
32	57M7257	1	Elec. Connector Housing	(INCL IN CB11489676 WIRING HARNESS)
33	57M7686	1	Electrical Connector Assy	(INCL IN CB11489676 WIRING HARNESS)
34	CB01434094	1	Elec. Connector Terminal	REF
35	CB01441436	1	Stud	(INCL IN CB11442206 BASECUTTER HEIGHT POTENTIOMETER)
36	22H841	2	Set Screw	1/4" X 1/4"
37	R78055	5	Electrical Connector Assy	(INCL IN CB11489676 WIRING HARNESS)
38	RE12365	1	Electrical Connector Assy	(INCL IN CB11489676 WIRING HARNESS)
39	R78054	3	Electrical Connector Assy	(INCL IN CB11489676 WIRING HARNESS)
40	57M7896	14	Electrical Connector Assy	(INCL IN CB11489676 WIRING HARNESS)
41	RE12364	3	Electrical Connector Assy	(INCL IN CB11489676 WIRING HARNESS, CB11442206 BASECUTTER HEIGHT & CB11463696 POTENTIOMETER)
42	CB01477857	1	Label	SEAT-SAFETY SHUT OFF
43	CB01436125	1	Label	BASECUTTER CONTROL
44	CB01419684	1	Label	CH
45	CB01419685	1	Label	JOYSTICK-SEC. EXT. CH3500
46	CB01419687	1	Label	JOYSTICK RH C/D-CH3500
47	AT124557	2	Hose Clamp	-
48	37H84	2	Screw	-
49	CB01481919	1	Label	VAR SPEED W/AT POT
50	CB11440219	1	Cab Wiring Harness	-
51	H129367	1	Stud	-
52	12M7084	1	Lock Washer	4.300 mm
53	14H605	1	Nut	0.164"
54	ET15766	1	Elec. Connector Housing	(INCL IN CB11489676 WIRING HARNESS)
55	AT262182	1	Relay	(INCL IN CB11489676 WIRING HARNESS)
56	R78053	2	Electrical Connector Assy	(INCL IN CB11489676 WIRING HARNESS)
57	CB11458441	2	Diode Wiring Harness	(INCL IN CB11489676 WIRING HARNESS)

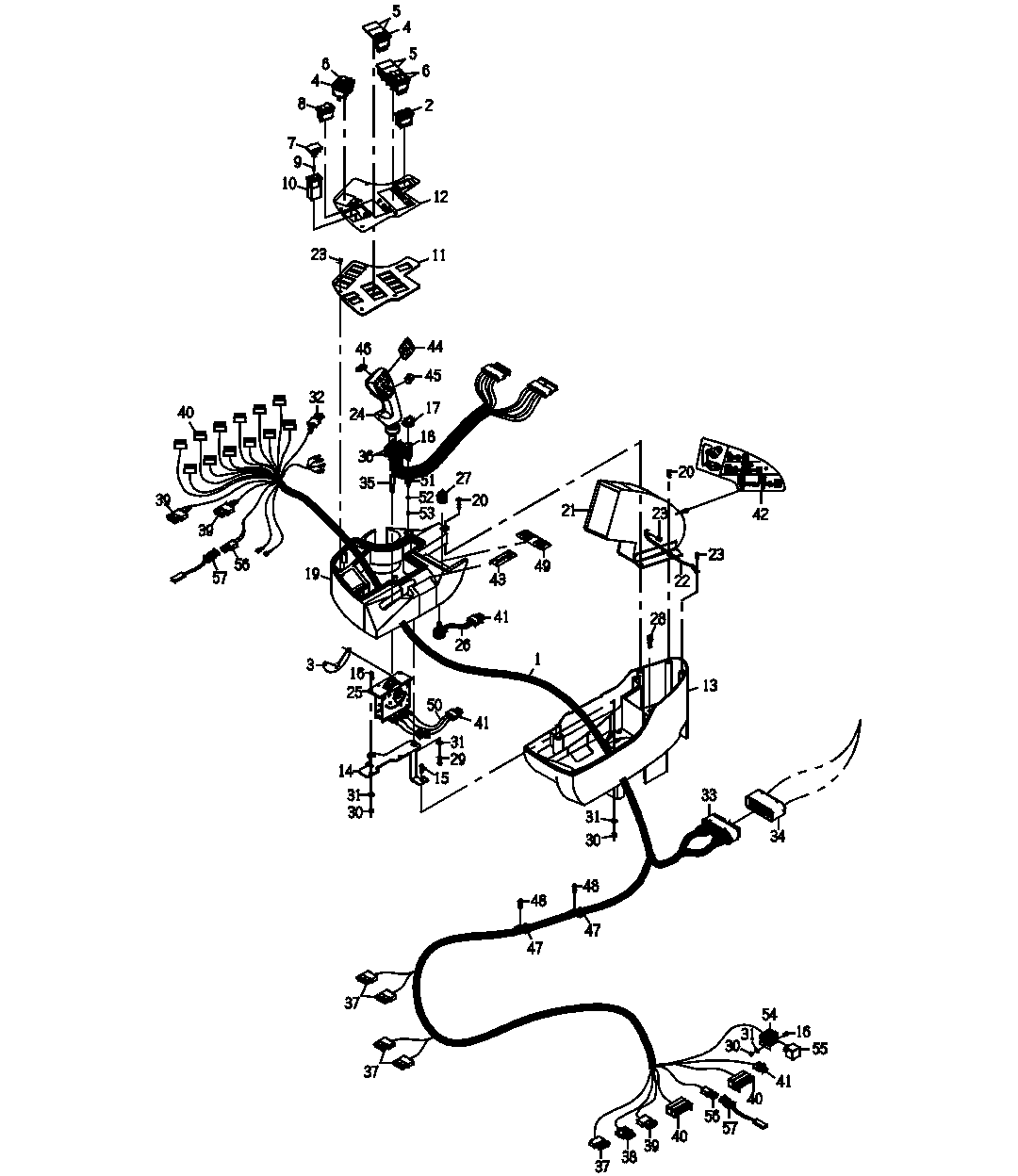

Electrical GP, Operator Armrest {Wheel} ( - 090755)
