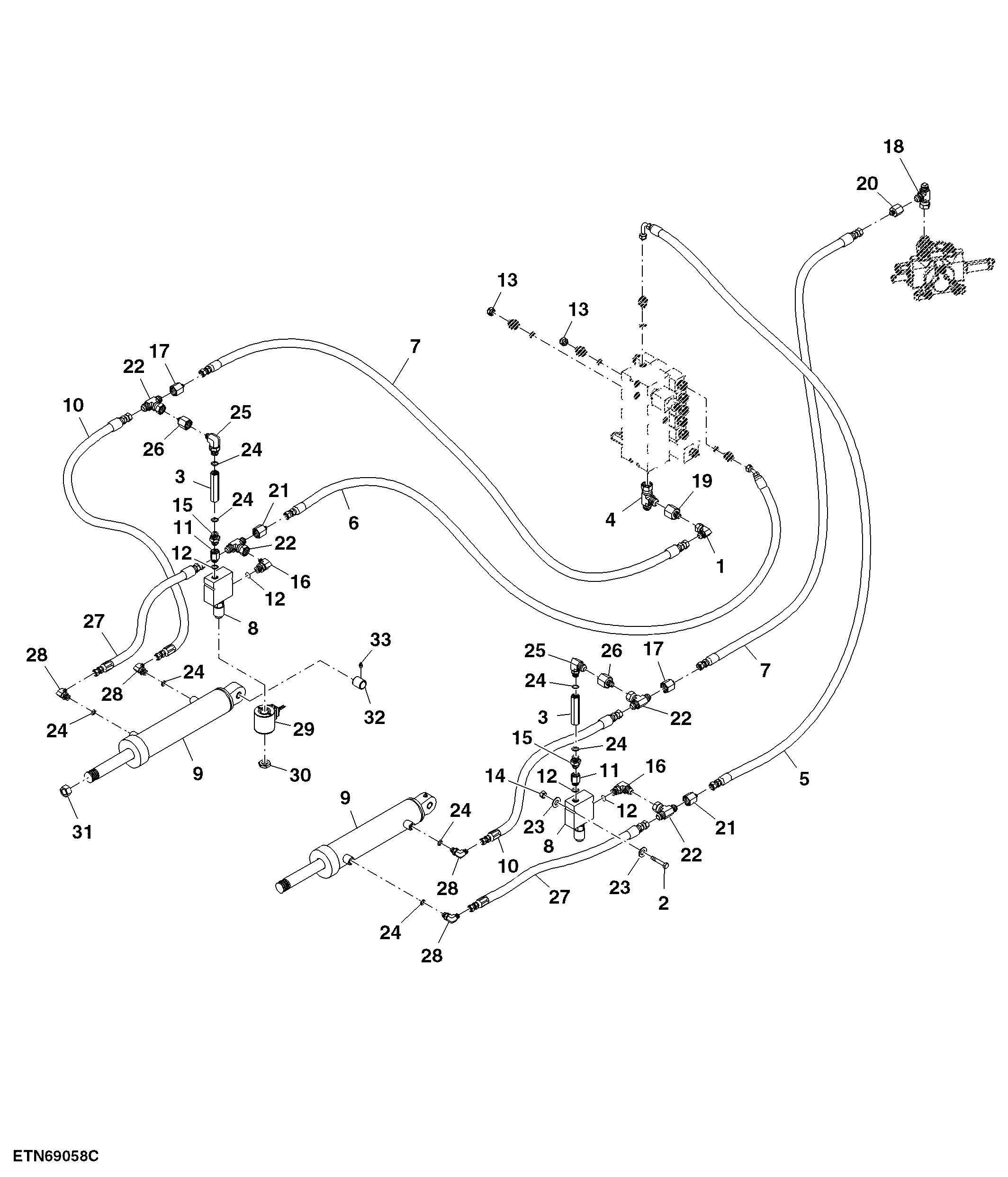

Cylinder-Crop Divider Float, Option 7800 (100601 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH75164	1	Elbow Fitting	-
2	AT250986	4	Cap Screw	-
3	CB01442374	2	Flow Control Hyd. Valve	-
4	X12R6X-S	1	Tee Fitting	-
5	CB11495119	1	Hydraulic Hose	-
6	CB11442219	1	Hydraulic Hose	-
7	CB11437906	2	Hydraulic Hose	-
8	CB11490359	2	Solenoid Hydraulic Valve	-
9	CB11472966	2	Hydraulic Cylinder	(Verify Machine Serial Number Before Ordering) LOUISIANA HARVESTER
9	CB11505433	2	Hydraulic Cylinder	(Verify Machine Serial Number Before Ordering) WORLD HARVESTER
9	CB11500451	2	Hydraulic Cylinder	(Verify Machine Serial Number Before Ordering) WORLD HARVESTER
10	CB11493526	2	Hydraulic Hose	-
11	PMH2355	2	Adapter Fitting	INCLUDE R26906
12	R26906	4	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
13	R39783	2	Fitting	-
14	T16464	4	Lock Nut	7.925 mm (5/16")
15	X12-8F5OX-S	2	Adapter Fitting	INCLUDE R26375, SUB FOR 0070028692)
16	AR26724	2	Elbow Fitting	INCLUDE R26906
17	X10-8TRTXN-S	2	Adapter Fitting	-
18	X16R6X-S	1	Tee Fitting	SUB FOR 0071341097
19	X12-8TRTXN-S	1	Adapter Fitting	SUB FOR 0070034210
20	0071342275	1	Adapter Fitting	-
21	X10-6TRTXN-S	4	Adapter Fitting	SUB FOR 0071385672
22	X10S6X-S	4	Tee Fitting	SUB FOR 0071385677
23	24H1136	8	Washer	11/32" X 11/16" X 0.065"
24	R26375	4	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
25	0071370702	2	Elbow Fitting	-
26	0071349614	2	Adapter Fitting	-
27	0881350039	2	Hydraulic Hose	-
28	AT36771	4	Elbow Fitting	-
29	CB11493867	2	Solenoid Valve Coil	-
30	N223292	2	Nut	-
31	0050010170	1	Nut	-
32	0610005019	1	Bushing	-
33	JD7759	1	Lubrication Fitting	-
..	CB11504008	1	Seal Kit	-

Cylinder-Crop Divider Float, Option 7800 (100601 - )
