Открытый узел

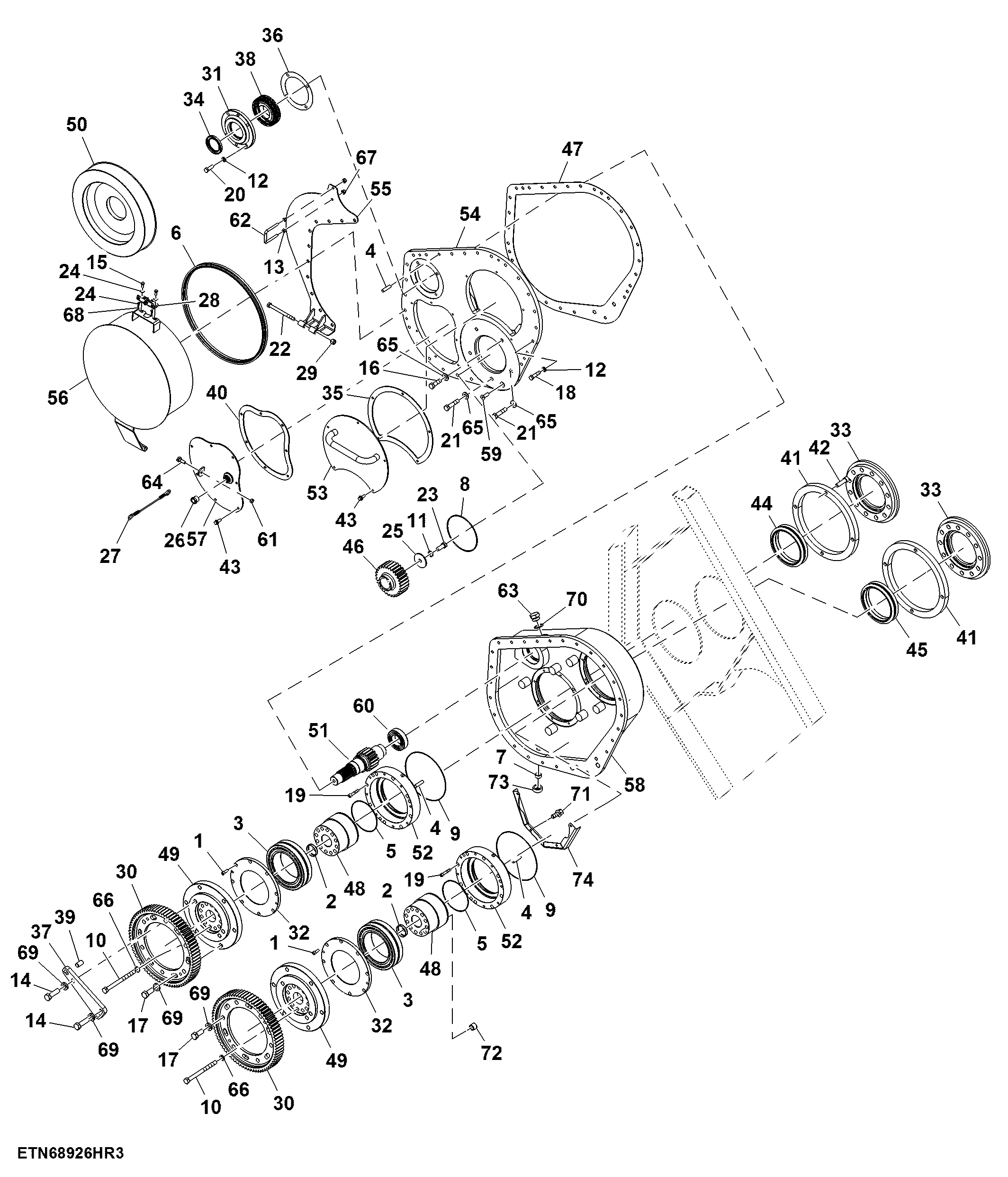

Chopper GP, Gearbox, Option 1000, 1020

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	0051349440	16	Bolt	-
2	0091348702	2	Fitting Plug	-
3	DE31280	2	Bearing	-
3	0121348831	2	Bearing	ORDER DE31280, LH
4	0131348960	7	Dowel Pin	RH
5	0151300689	2	O-Ring	-
6	0170189856	1	Seal	-
7	0390033344	1	Pipe Plug	-
8	0610018373	1	O-Ring	-
9	841326900	2	O-Ring	-
10	08H4705	24	Cap Screw	5/8" X 7-1/2"
11	12H294	1	Lock Washer	5/8"
12	12H301	26	Lock Washer	1/2"
13	14H1076	2	Nut	3/8"
14	19H2411	2	Cap Screw	3/4" X 2-1/2"
15	19H2664	2	Cap Screw	5/16" X 3/4"
16	19H2706	3	Cap Screw	5/8" X 2"
17	19H2717	12	Cap Screw	3/4" X 1-3/4"
18	19H2735	22	Cap Screw	1/2" X 2"
19	19H2941	16	Screw	3/8" X 2"
20	19H2993	4	Cap Screw	1/2" X 1-1/2"
21	19H3107	2	Cap Screw	5/8" X 2-3/4"
22	19H3136	1	Cap Screw	1/2" X 5-3/4"
23	19M7488	1	Cap Screw	M16 X 40
24	24H1136	4	Washer	11/32" X 11/16" X 0.065"
25	24H1852	1	Washer	21/32" X 2-3/4" X 0.180"
26	AT119301	1	Sight Plug	-
27	AT120588	1	Cable	-
28	AZ102725	1	Lock	-
29	BP12214	1	Lock Nut	-
30	CB01417877	2	Gear	-
31	CB01418263	1	Bearing Housing W/O Bearing	-
32	CB01418926	2	Ring	-
33	CXT10777	2	Seal	-
34	CXT12341	1	Seal	-
35	CB01419173	1	Gasket	-
36	CB01419201	1	Gasket	-
37	CE32796	1	Lever	-
38	CB01419254	1	Spherical Roller Bearing	-
39	CE32437	1	Dowel Pin	-
39	CB01419299	1	Pin	ORDER CE32437
40	CB01423018	1	Gasket	-
41	CB01423866	2	Back-Up Ring	-
42	CB01426847	8	Bolt	-
43	CB01442578	12	Bolt	-
44	CB01465465	1	Seal	-
45	CB01466740	1	Seal	-
46	CB01467061	1	Gear	-
47	CB01467138	1	Gasket	-
48	CXT11465	2	Hub	-
49	CXT11464	2	Adapter	-
50	CB01473150	1	Flywheel	-
51	CXT12350	1	Pinion Shaft	-
52	CXT10779	2	Housing	-
53	CB11438194	1	Cover	-
54	CB11468908	1	Cover	-
55	CB11481121	1	Mounting Parts	-
56	CB11481122	1	Cover	-
57	CB11481501	1	Cover	-
58	CB11486832	1	Housing	-
59	H100562	1	Screw	-
60	JD9512	1	Cylindrical Roller Bearing	-
61	M91187	2	Lock Nut	-
62	N10730	1	U-Bolt	-
63	R36636	1	Drain Plug	-
64	R41778	2	Bolt	-
65	R56423	5	Washer	-
66	R73290	24	Washer	-
67	T11234	2	Lock Nut	-
68	T16464	2	Lock Nut	-
69	T83426	14	Washer	-
70	U13639	1	O-Ring	-
71	H77932	4	Screw	-
72	CXT11400	8	Spacer	-
73	0090022766	1	Sleeve Fitting	-
74	CB01490732	1	Cover	-

Chopper GP, Gearbox, Option 1000, 1020

Нет текстового описания
