Открытый узел

20 Engine 6090HT804-RE533130

20 Engine 6090HT804-RE533130

20 Engine 6090HT804-RE533130

20 Engine 6090HT804-RE533130

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

20 Engine 6090HT804-RE533130

Нет текстового описания

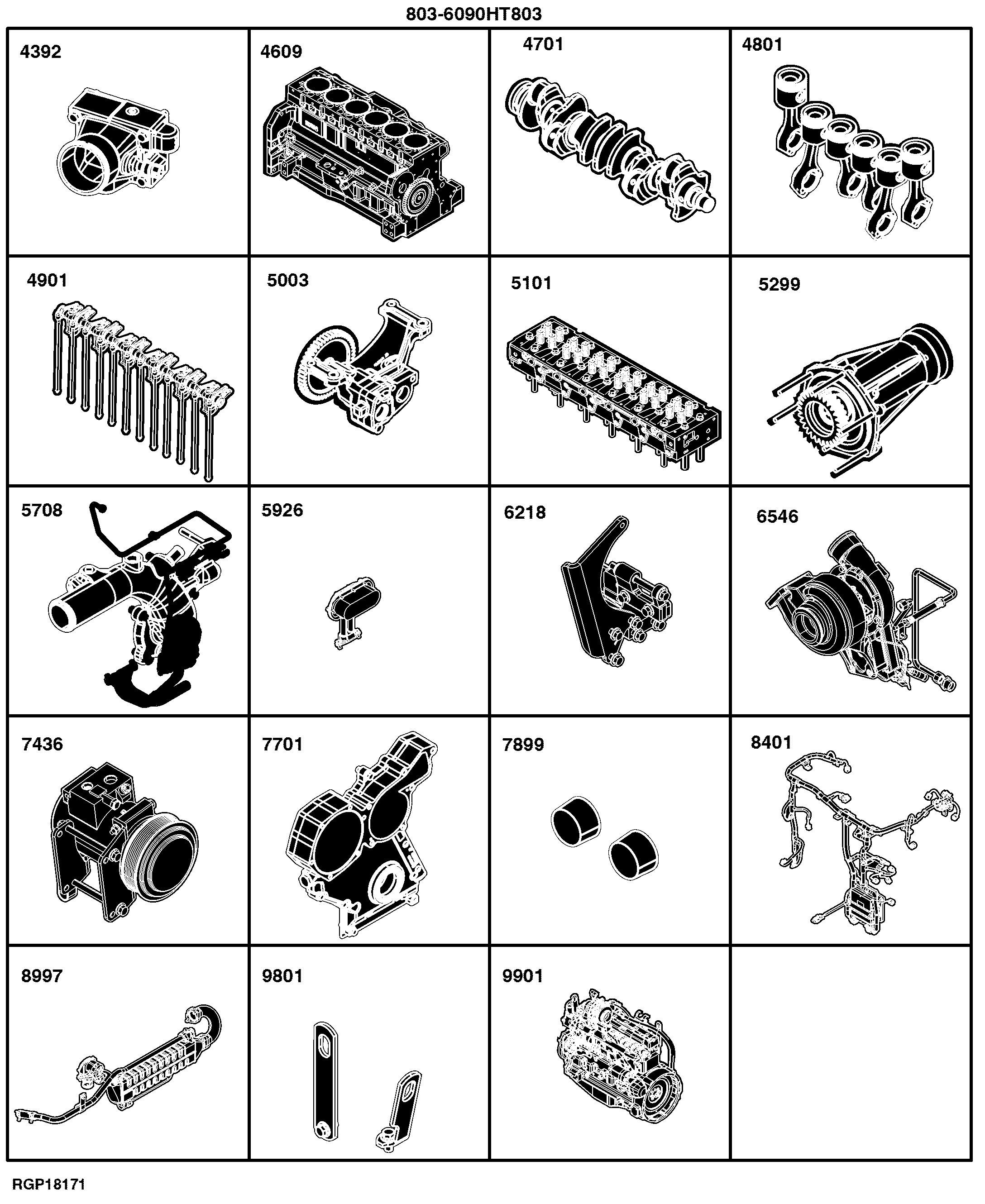

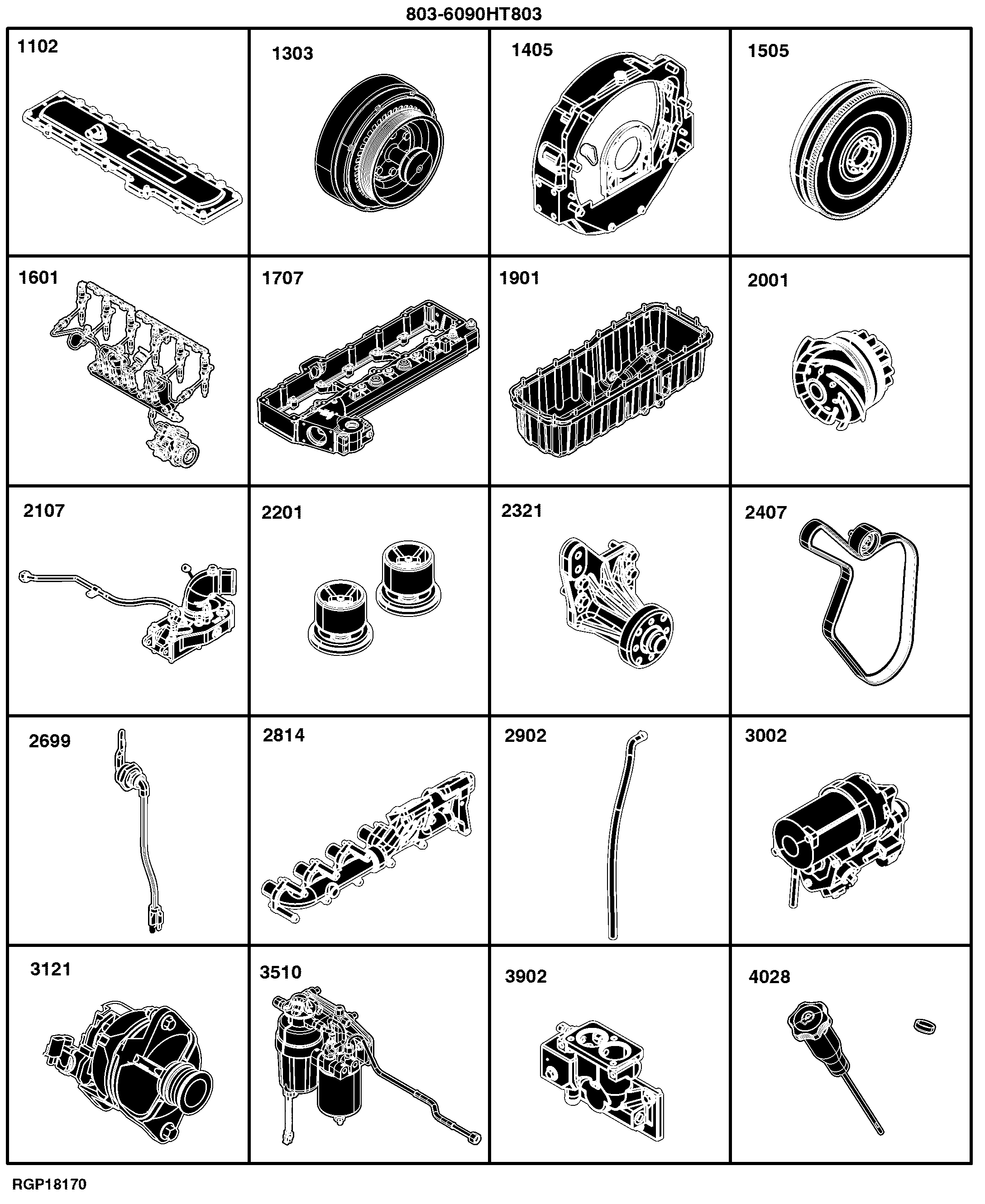

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Cylinder Head Kit	-
-	-	1	5299 Cylinder Block Fittings	-
-	-	1	5708 Water Pump Inlet	-
-	-	1	5926 Engine Oil Cooler and Oil Filter	-
-	-	1	6218 Alternator Mounting	-
-	-	1	6546 Turbocharger	-
-	-	1	7436 Air Conditioning Compressor	-
-	-	1	7701 Timing Gear Cover	-
-	-	1	7899 Air Compressor Mounting Plug	-
-	-	1	8414 Engine Wiring Harness	-
-	-	1	8997 Exhaust Gas Recirculation Plug	-
-	-	1	9801 Lift Straps	-
-	-	1	9901 Complete Block Assembly	-
-	-	1	9901 Connecting Rod Bearings	-
-	-	1	9901 Crankshaft Thrust Bearing Kit	-
-	-	1	5101 Cylinder Head with Valves	-
-	-	1	9901 Cylinder Head Removal Gasket Kit	-
-	-	1	9901 Engine Gasket Kit (1/3)	-
-	-	1	9901 Engine Gasket Kit (2/3)	-
-	-	1	9901 Engine Gasket Kit (3/3)	-
-	-	1	9901 Engine Overhaul Kit	-
-	-	1	9901 Fuel Filter Element Service Kit	-
-	-	1	9901 Main Bearing Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Primary Fuel Filter Seal Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Water Pump, Replacement	-
-	-	1	3002 Starter Motor	-
-	-	1	1303 Crankshaft Pulley and Damper	-
-	-	1	1405 Flywheel Housing	-
-	-	1	1505 Flywheel	-
-	-	1	1601 Fuel Injection System	-
-	-	1	1707 Intake Manifold	-
-	-	1	1901 Oil Pan	-
-	-	1	2001 Water Pump	-
-	-	1	2107 Thermostat Cover ( - 007527)	-
-	-	1	2201 Engine Thermostat ( - 007527)	-
-	-	1	2321 Fan Drive	-
-	-	1	2407 Fan Belt	-
-	-	1	2699 Engine Coolant Heater Fittings	-
-	-	1	2814 Exhaust Manifold	-
-	-	1	2902 Ventilating System	-
-	-	1	1102 Valve Cover	-
-	-	1	3121 Alternator	-
-	-	1	3510 Fuel Filter	-
-	-	1	3902 Thermostat Housing ( - 007527)	-
-	-	1	3930 Thermostat Housing (007532 - )	-
-	-	1	4028 Engine Oil Dipstick	-
-	-	1	4392 Air Intake	-
-	-	1	4601 Cylinder Block (007532 - )	-
-	-	1	4609 Cylinder Block with Liners ( - 007531)	-
-	-	1	4701 Crankshaft and Bearings	-
-	-	1	4801 Connecting Rods and Pistons	-
-	-	1	4901 Value Actuating Mechanism	-
-	-	1	5001 Engine Oil Pump ( - 004976)	-
-	-	1	5003 Oil Pump (004977 - )	-
