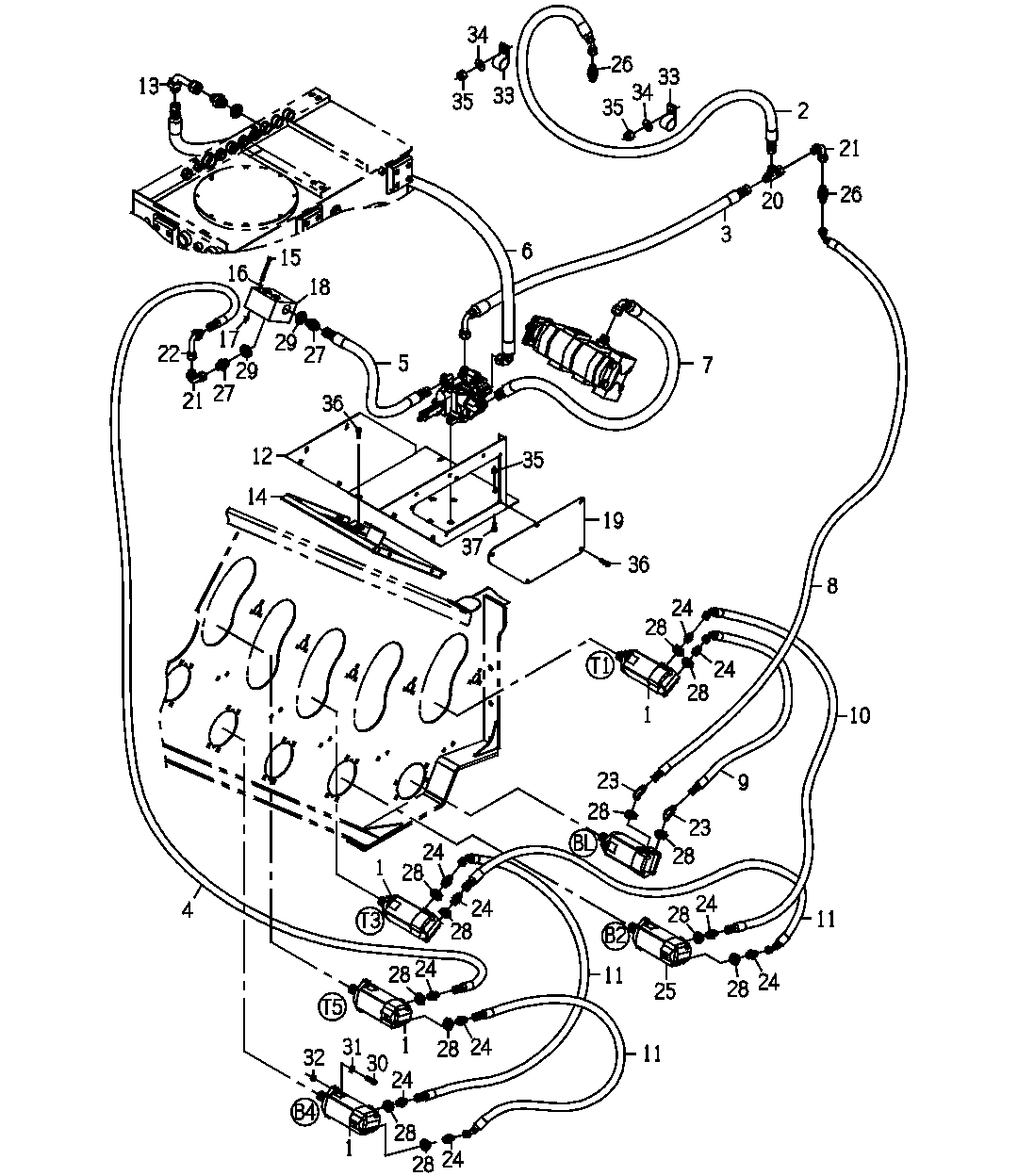

LINES GP, FEED ROLLER, RIGHT (B1,B3,B5,T2,T4)(OPTION 1010)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11480558	4	Hydraulic Motor	-
2	0881340951	1	Hydraulic Hose	-
3	CB11474442	1	Hydraulic Hose	-
4	CB11437593	1	Hydraulic Hose	-
5	0881342670	1	Hydraulic Hose	-
6	CB11436873	1	Hydraulic Hose	-
7	0881342195	1	Hydraulic Hose	-
8	CB11436875	1	Hydraulic Hose	-
9	CB11436876	1	Hydraulic Hose	-
10	CB11436879	1	Hydraulic Hose	-
11	CB11427470	3	Hydraulic Hose	-
12	CB11452204	1	Housing	-
13	0071342104	1	Elbow Fitting	-
14	CB11435623	1	Cover	-
15	19H3300	2	Cap Screw	5/16" X 3-3/4"
16	24H1122	2	Washer	3/8" X 7/8" X 0.083"
17	T16464	2	Lock Nut	7.925 mm (5/16")
18	CB11426707	1	Flow Control Hyd. Valve	-
19	CB01435527	1	Door	-
20	X12R6X-S	1	Tee Fitting	-
21	0071341056	2	Elbow Fitting	-
22	X41T3-12-12	1	Elbow Fitting	(SUB FOR 0071341059)
23	AT32338	2	Fitting	-
24	X10F5OX-S	10	Adapter Fitting	(SUB FOR 0071349607)
25	CB11480572	1	Motor	-
26	0071341065	2	Union Fitting	-
27	R27267	2	Fitting	-
28	R26906	12	O-Ring	19.177 X 2.464 mm (0.755" X 0.097"), INCLD IN 23, 24
29	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116"), INCLD IN 27
30	19H3033	8	Screw	1/2" X 2"
31	12H301	8	Lock Washer	1/2"
32	14H1040	8	Nut	1/2"
33	AT119290	2	Hose Clamp	-
34	24H1219	2	Washer	7/16" X 1" X 0.083"
35	T11234	4	Lock Nut	9.525 mm (3/8")
36	T34037	11	Screw	9.525 X 15.748 mm (3/8" X 0.620")
37	N10214	2	Self-Locking Screw	9.525 X 25.400 mm (3/8" X 1")

LINES GP, FEED ROLLER, RIGHT (B1,B3,B5,T2,T4)(OPTION 1010)
