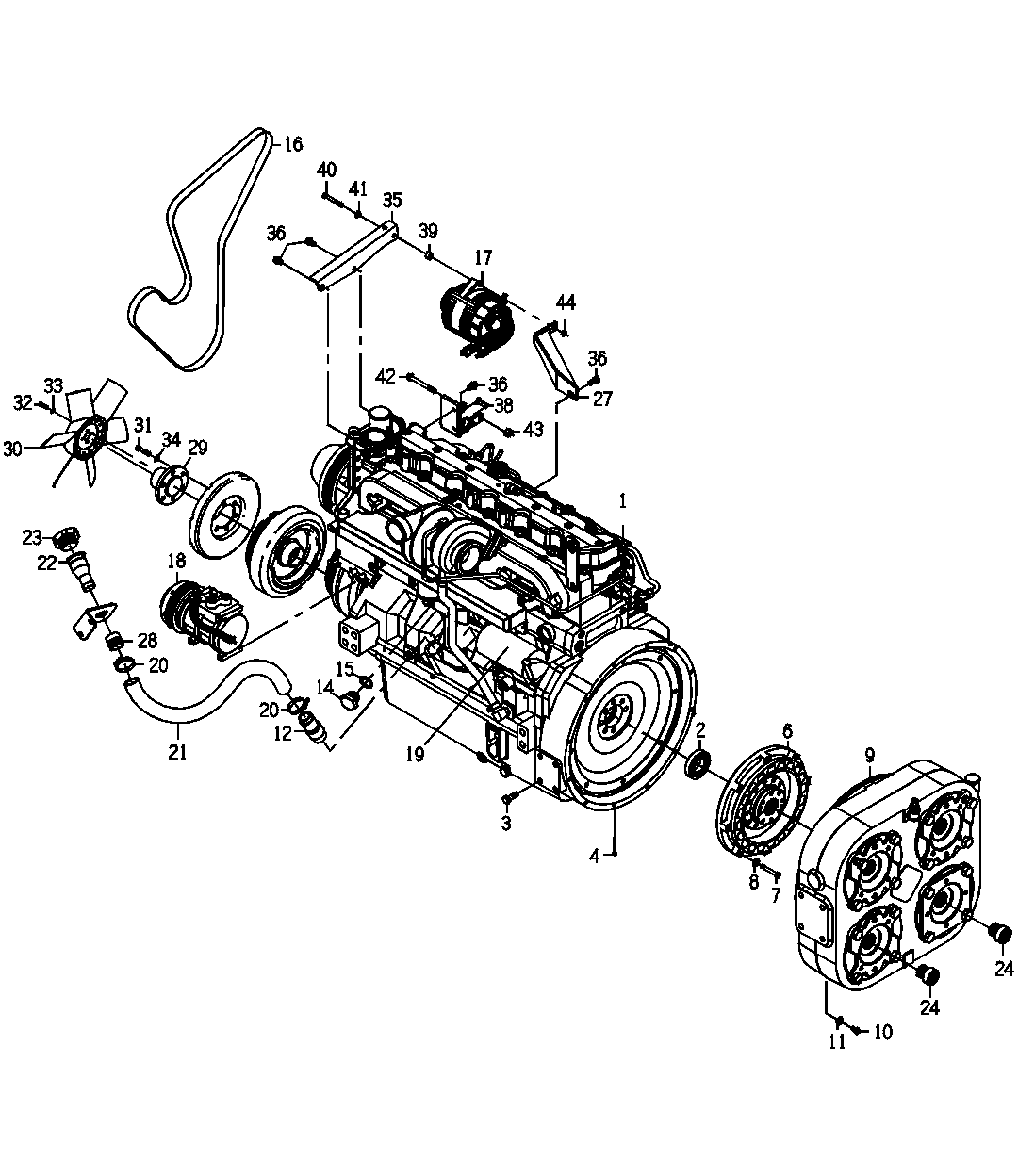

ENGINE GP, ATTACHMENTS (OPTION 1010)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RG36204	1	Diesel Engine	6081HT802 ENGINE
2	F40306SS	1	Ball Bearing	(SUB FOR 0470021622)
3	0051332536	4	Bolt	-
4	11M7023	1	Cotter Pin	4 X 32 mm
5	CB01473996	1	Seal	-
6	0151326578	1	Torsional Damper	-
7	19H3065	8	Cap Screw	3/8" X 2"
8	R57696	8	Washer	9.931 X 23.114 X 3.048 mm (25/64" X 0.910" X 0.120")
9	YZ16838	1	Transmission	-
10	19H3239	12	Cap Screw	3/8" X 1-1/4"
11	R57696	12	Washer	9.931 X 23.114 X 3.048 mm (25/64" X 0.910" X 0.120")
12	CB01446322	1	Spindle	-
14	T42743	1	Fitting	-
15	U13639	1	O-Ring	37.465 X 2.997 mm (1.475" X 0.118"), INCLD IN 14
16	R135604	1	V-Belt	1935 X 27.860 mm (76.181" X 1.097")
17	RE46608	1	Alternator	-
18	AN221429	1	Compressor	-
19	RE69704	1	Starter Motor	-
20	RE25110	2	Clamp	-
21	CB11432633	1	Radiator Hose	-
22	R120801	1	Dipstick Tube	-
23	RE500250	1	Filler Cap	-
24	4028056	2	Splined Coupling	-
25	T11234	3	Lock Nut	9.525 mm (3/8")
26	CB11460309	1	Heat Shield	-
27	CB11480006	1	Bracket	-
28	CB01438063	1	Tube	-
29	CB01452788	1	Hub	-
30	M805013	1	Fan	-
31	19H2633	6	Cap Screw	3/8" X 1-1/2"
32	19H1948	6	Cap Screw	1/4" X 3/4"
33	12H302	6	Lock Washer	1/4"
34	24H1652	6	Washer	13/32" X 11/16" X 7/64"
35	CB01461963	1	Support	-
36	N10214	5	Self-Locking Screw	9.525 X 25.400 mm (3/8" X 1")
37	24H1219	9	Washer	7/16" X 1" X 0.083"
38	R100377	1	Bushing	-
39	R127155	1	Spacer	-
40	19M7798	1	Screw	M8 X 40
40	R186227	1	Screw	M8 X 60
41	12H303	1	Lock Washer	5/16"
42	19H3404	1	Cap Screw	3/8" X 4"
42	19M8166	1	Cap Screw	M10 X 110
43	14H1076	1	Nut	3/8"
43	14M7296	1	Flange Nut	M10
44	12H304	1	Lock Washer	3/8"
44	14M7298	1	Flange Nut	M8

ENGINE GP, ATTACHMENTS (OPTION 1010)

Нет текстового описания
