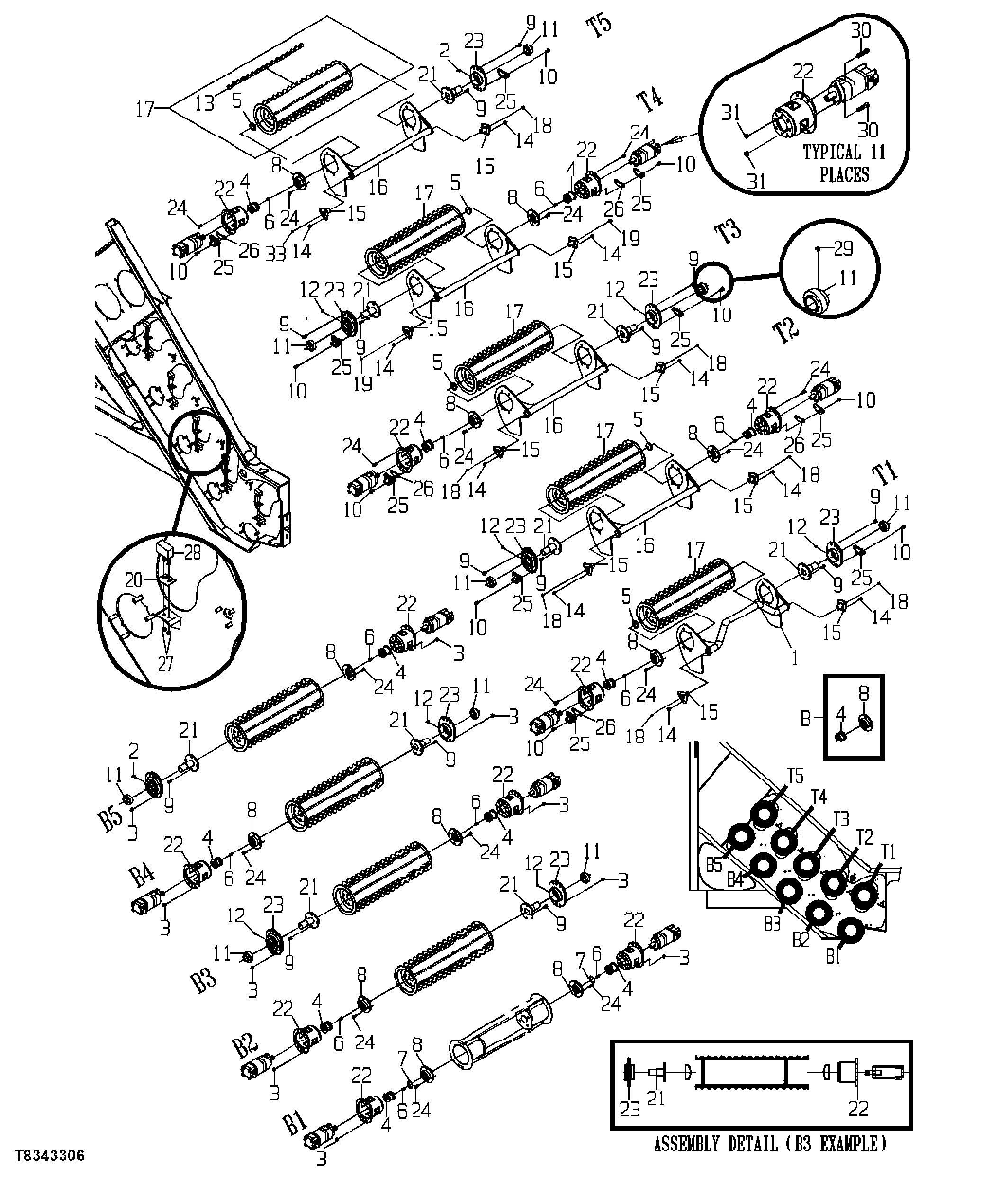

ROLLER GP, FEED, UPPER (T1,T2,T3,T4,T5)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXT13199	1	Cradle	-
1	CB11459302	1	Cradle	ORDER AXT13199 T1
2	JD7806	2	Lubrication Fitting	90% X 19.050 mm en_USLONG (3/4" en_USLONG)
3	14H1040	40	Nut	1/2"
4	0300048145	11	Hub	INCLD IN CB11454210
5	0091348702	5	Fitting Plug	-
6	19H2676	11	Cap Screw	3/8" X 1"
7	0290221919	2	Washer	1/4" , AS REQUIRED
7	0290239091	2	Washer	1/8", AS REQUIRED
7	0290279623	2	Spacer	3/8", AS REQUIRED
8	0300048144	11	Hub	INCLD IN CB11454210
9	19H2898	56	Cap Screw	1/2" X 1-1/4"
10	19H2735	20	Cap Screw	1/2" X 2"
11	0121378786	9	Bearing	INCLD IN 23
12	JD7788	9	Lubrication Fitting	45% X 20.574 mm en_USLONG (0.810" en_USLONG)
13	CB01415781	40	Bar	INCLD IN 17
14	14H1076	30	Nut	3/8"
15	CB01487612	10	Pin	(SUB FOR CB11419911)
16	CB11459303	4	Cradle	T2, T3, T4, T5
17	CB11420726	5	Roller	T1, T2, T3, T4, T5
18	0370005335	8	Lubrication Fitting	-
19	JD7781	2	Lubrication Fitting	90% X 21.336 mm en_USLONG (0.840" en_USLONG)
20	CB01439175	2	Spacer	AS REQUIRED
21	CB01487619	9	Shaft	(SUB FOR CB11420776)
22	CB11421189	11	Mounting Parts	-
23	CB11444538	9	Bearing Housing W/O Bearing	-
24	19H2472	64	Cap Screw	1/2" X 1"
25	CB01433679	10	Stop	-
26	CB01434005	5	Spacer	-
27	T60313	20	Lock Nut	6.350 mm (1/4")
28	CB01497592	10	Absorber	(SUB FOR AZ43879)
29	CB01439167	18	Bolt	INCLD IN 11
30	0050012685	22	Socket Head Screw	-
31	14H1040	22	Nut	1/2"
32	JD7763	2	Lubrication Fitting	45% X 28.200 mm en_USLONG (1.110" en_USLONG)
98	CB11454210	11	Hub Kit	-

ROLLER GP, FEED, UPPER (T1,T2,T3,T4,T5)
