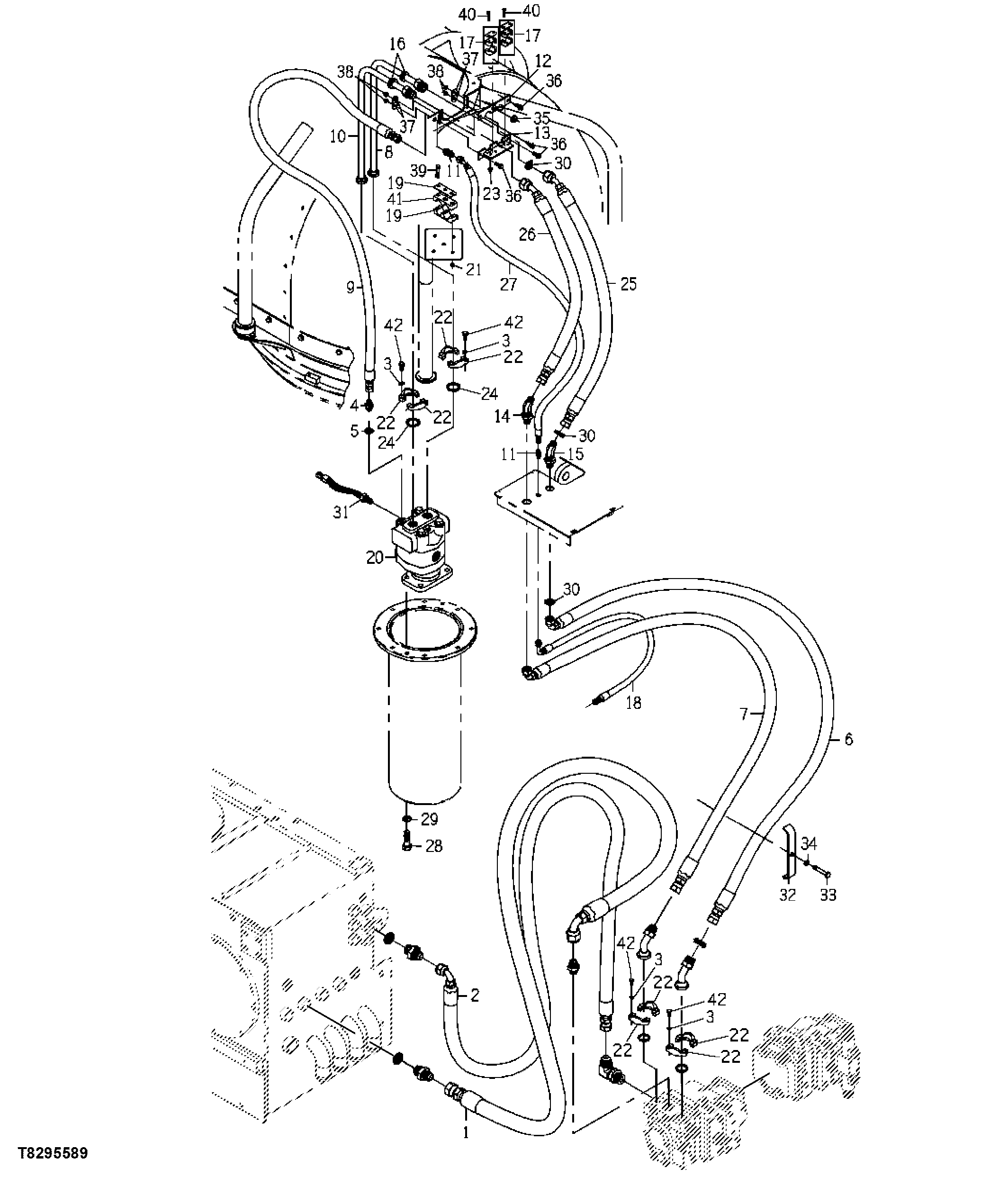

Lines, Primary Extractor, Pump to Motor

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11436851	1	Hydraulic Hose	-
2	0881342273	1	Hydraulic Hose	-
3	12H293	8	Lock Washer	7/16"
4	0070005755	1	Adapter Fitting	-
5	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097"), INCLD IN 4
6	CB11462256	1	Hydraulic Hose	-
7	CB11462257	1	Hydraulic Hose	-
8	CB11452837	1	Oil Line	-
9	CB11437906	1	Hydraulic Hose	-
10	CB11452851	1	Oil Line	-
11	0071341064	2	Union Fitting	-
12	CB01452904	1	Bracket	-
13	CB11452884	1	Bracket	-
14	0071341911	1	Fitting	-
15	CB01424413	1	Fitting	-
16	H96823	2	Grommet	-
17	CB11472708	2	Clamp	-
17	CB11478435	2	Clamp Kit	-
18	CB11466770	1	Hydraulic Hose	-
19	CB11472725	1	Clamp	-
19	CB01478381	1	Clamp	-
20	AXT12539	1	Hydraulic Motor	SUB FOR CB11419285
21	T11234	2	Lock Nut	9.525 mm (3/8")
22	T107068	8	Flange Fitting	-
23	M40333	4	Lock Nut	6.350 mm (1/4")
24	T78313	2	O-Ring	32.918 X 3.531 mm (1.296" X 0.139"), INCLD IN 21
25	CB11461890	1	Hydraulic Hose	-
26	CB11461891	1	Hydraulic Hose	-
27	CB11466769	1	Hydraulic Hose	-
28	0050016622	4	Bolt	-
29	12H294	4	Lock Washer	5/8"
30	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070"), INCLD IN 8, 15
31	0361351673	1	Sender	-
32	0290279818	1	Clamp	-
33	19H2732	1	Cap Screw	3/8" X 2-3/4"
34	12H304	1	Lock Washer	3/8"
35	R41440	1	Grommet	-
36	0051349334	4	Bolt	-
37	24M7178	4	Washer	10.500 X 30 X 2.500 mm, SUB FOR 24H1176
38	T11234	4	Lock Nut	9.525 mm (3/8")
39	19H3636	1	Cap Screw	5/16" X 2-1/2", INCLD IN 19
39	19H2855	3	Cap Screw	3/8" X 3-1/4"
40	19H2721	4	Cap Screw	1/4" X 1-1/2", INCLD IN 17
40	19H3434	4	Cap Screw	1/4" X 2"
41	CB01478377	2	Insert	-
42	19H2563	16	Cap Screw	7/16" X 1-3/4"

Lines, Primary Extractor, Pump to Motor
