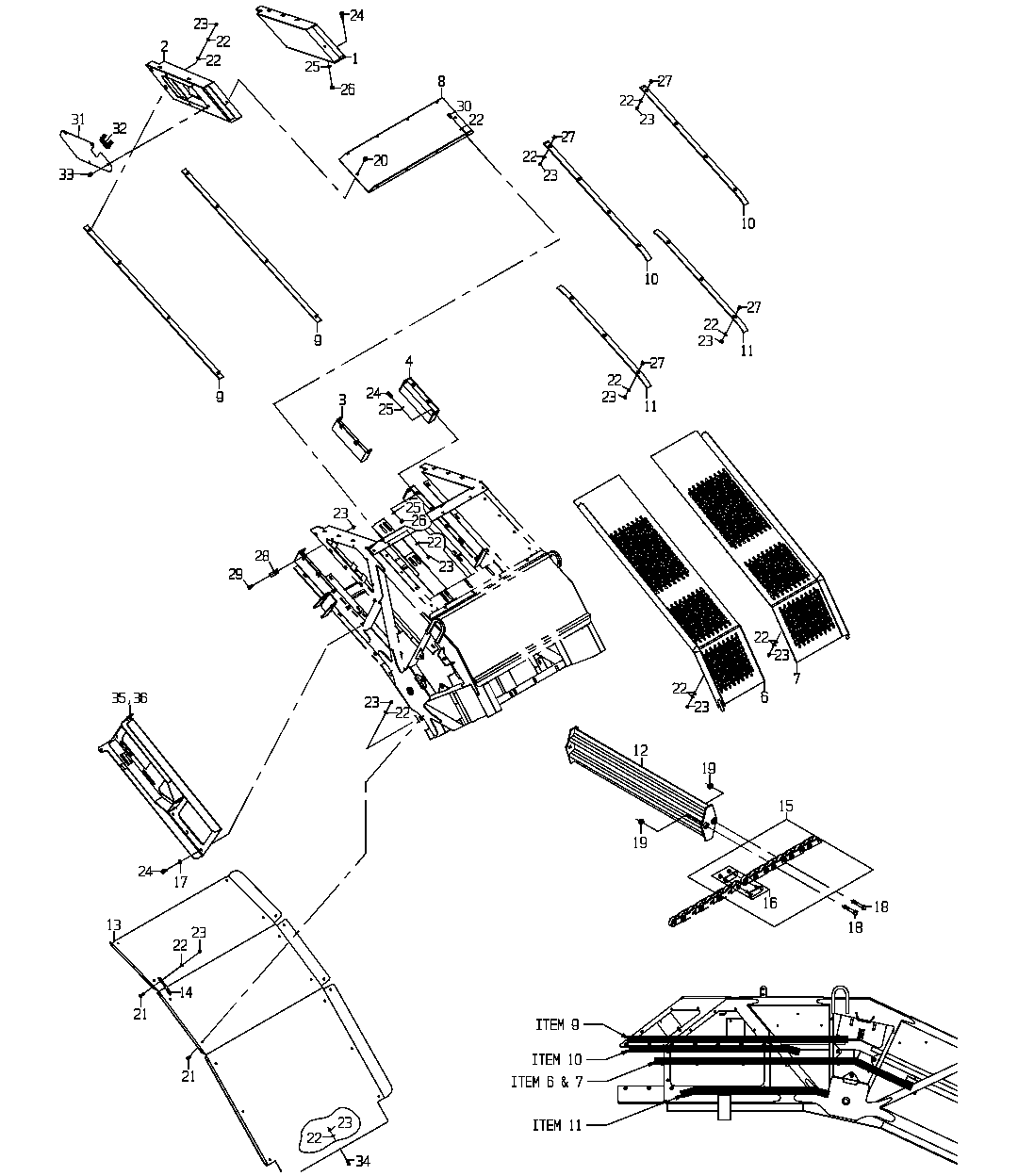

ELEVATOR GP, EXTENSION 12 INCHES (OPTION 6510)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11472897	1	Frame	LEFT HAND, TOP
2	CB11472899	1	Frame	RIGHT HAND, TOP
3	CB11472900	1	Frame	RIGHT HAND, BOTTOM
4	CB11472903	1	Frame	LEFT HAND, BOTTOM
6	CB11472906	1	Floor	RIGHT HAND
7	CB11472908	1	Floor	LEFT HAND
8	CB01472910	1	Brace	TOP
9	CB11445085	2	Wear Plate	TOP
10	CB01445087	2	Wear Plate	MIDDLE
11	CB01445088	2	Wear Plate	BOTTOM
12	CB11464244	1	Slat	-
13	CB01472891	1	Guard	-
14	CB01472893	4	Retainer	-
15	CB01445090	2	Roller Chain	INCLD IN 16
16	CB11407067	2	Roller Chain	INCLD IN 15
17	12H301	28	Lock Washer	1/2"
18	0051377934	4	Bolt	-
19	N190216	4	Lock Nut	(SUB FOR 0051379027)
20	T34037	2	Screw	9.525 X 15.748 mm (3/8" X 0.620")
21	19H2676	22	Cap Screw	3/8" X 1"
22	24H1219	147	Washer	7/16" X 1" X 0.083"
23	T11234	30	Lock Nut	9.525 mm (3/8")
24	19H2898	36	Cap Screw	1/2" X 1-1/4"
25	24H1211	8	Washer	9/16" X 1-3/8" X 0.105"
26	BP12214	8	Lock Nut	12.700 mm (1/2")
27	0050013093	14	Bolt	-
27	CB01473054	14	Cap Screw	-
28	T74416	1	Clamp	-
29	N10214	1	Self-Locking Screw	9.525 X 25.400 mm (3/8" X 1")
30	19H3239	4	Cap Screw	3/8" X 1-1/4"
31	CB01472919	1	Cover	-
32	CB01492977	1	Sealing Trim	-
33	N10214	4	Self-Locking Screw	9.525 X 25.400 mm (3/8" X 1")
34	19H2732	3	Cap Screw	3/8" X 2-3/4"
35	CB11472920	1	Mounting Parts	DRCT DRV, RIGHT HAND
36	CB11472921	1	Mounting Parts	DRCT DRV, LEFT HAND

ELEVATOR GP, EXTENSION 12 INCHES (OPTION 6510)
