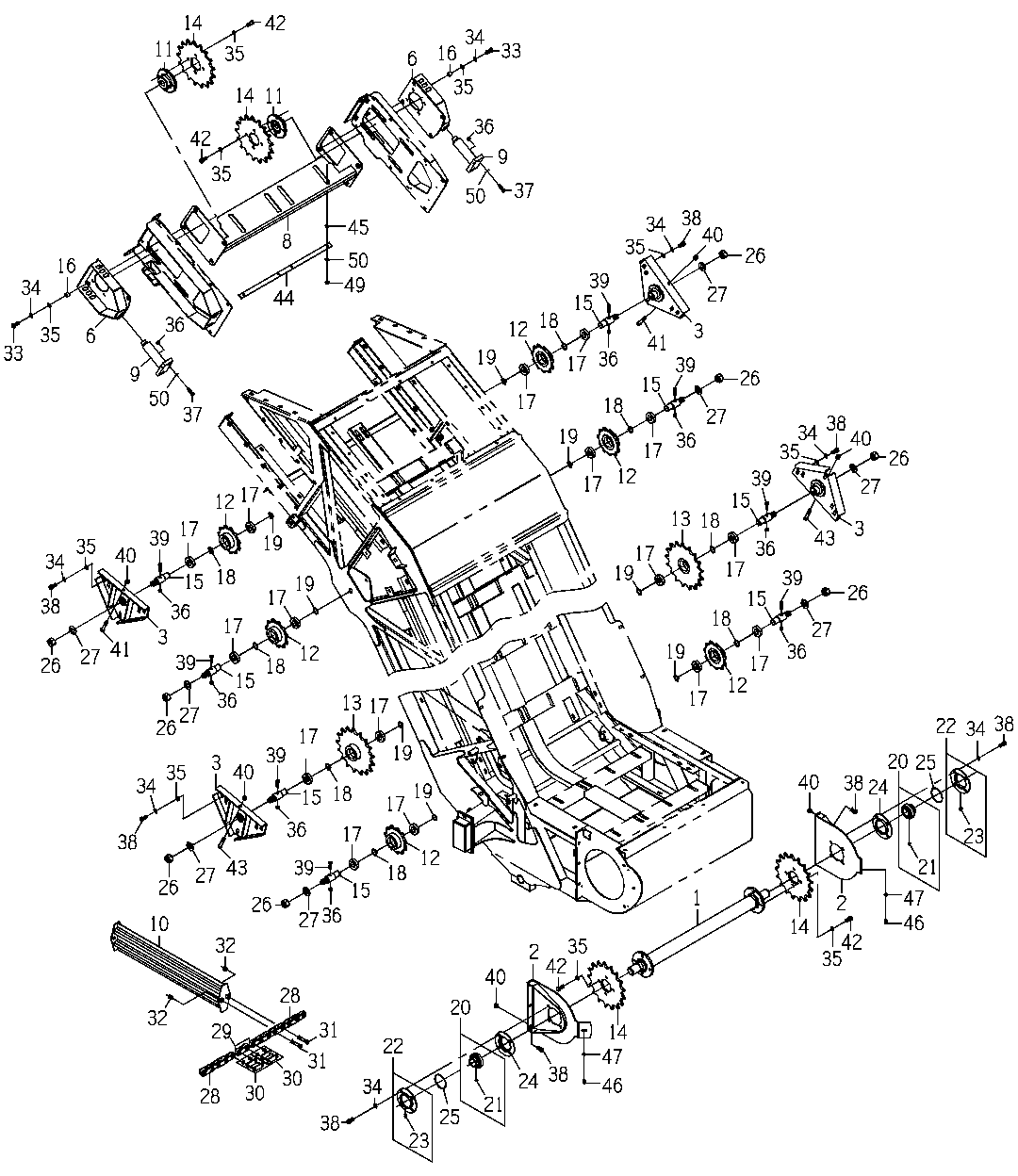

ELEVATOR GP, DRIVE (SCROCKETS,CHAINS AND SLATS)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CB11452756	1	Shaft	-
2	CB11424062	2	Adjuster	-
3	CB11424359	4	Adjuster	-
6	CB11474082	2	Adjuster	-
8	CB11462481	1	Support	-
9	CB11465027	2	Hydraulic Cylinder	-
10	CB11464244	23	Slat	-
11	CB01471077	2	Hub	-
12	CB11414708	6	Chain Sprocket	-
13	CB11421303	2	Chain Sprocket	-
15	CB01424053	8	Spindle	-
16	CB01474508	8	Spacer	-
17	0260005460	16	Ball Bearing	-
17	CXT18155	4	Drive Sprocket	SUB FOR 0290248605
18	0240027749	8	Snap Ring	-
19	0700047863	8	Snap Ring	-
20	0121378786	2	Bearing	-
21	CB01439167	4	Bolt	INCLD IN 20
22	AA20226	2	Pressed Flanged Housing	-
23	JD7788	2	Lubrication Fitting	INCLD IN 22
24	E39751	2	Pressed Flanged Housing	-
25	0490039056	2	O-Ring	-
26	0050014318	8	Lock Nut	-
27	24H1197	8	Washer	1-1/16" X 2-1/2" X 0.164"
28	CB01433201	2	Chain Link	-
29	0211325706	2	Link	-
30	CB11407067	4	Roller Chain	-
31	0051377934	92	Bolt	-
32	N190216	92	Lock Nut	(SUB FOR 0051379027)
33	19H2993	8	Cap Screw	1/2" X 1-1/2"
34	12H301	28	Lock Washer	1/2"
35	T35860	36	Washer	13.614 X 27.280 X 2.413 mm (0.536" X 1.074" X 0.095")
36	T11234	12	Lock Nut	9.525 mm (3/8")
37	19H2633	4	Cap Screw	3/8" X 1-1/2"
38	19H2898	26	Cap Screw	1/2" X 1-1/4"
39	19H2732	8	Cap Screw	3/8" X 2-3/4"
40	BP12214	10	Lock Nut	12.700 mm (1/2")
41	19H1991	2	Cap Screw	1/2" X 8"
42	19H2472	16	Cap Screw	1/2" X 1"
43	19H2668	2	Cap Screw	1/2" X 3-1/2"
44	CB01430513	1	Retainer	-
45	CB01397933	1	Spacer	-
46	19H1648	2	Cap Screw	3/8" X 3/4"
47	24M7178	2	Washer	10.500 X 30 X 2.500 mm, (SUB FOR 24H1176)
48	12H304	4	Lock Washer	3/8"
49	T54568	4	Lock Nut	-
50	24H1219	8	Washer	7/16" X 1" X 0.083"

ELEVATOR GP, DRIVE (SCROCKETS,CHAINS AND SLATS)
