Открытый узел

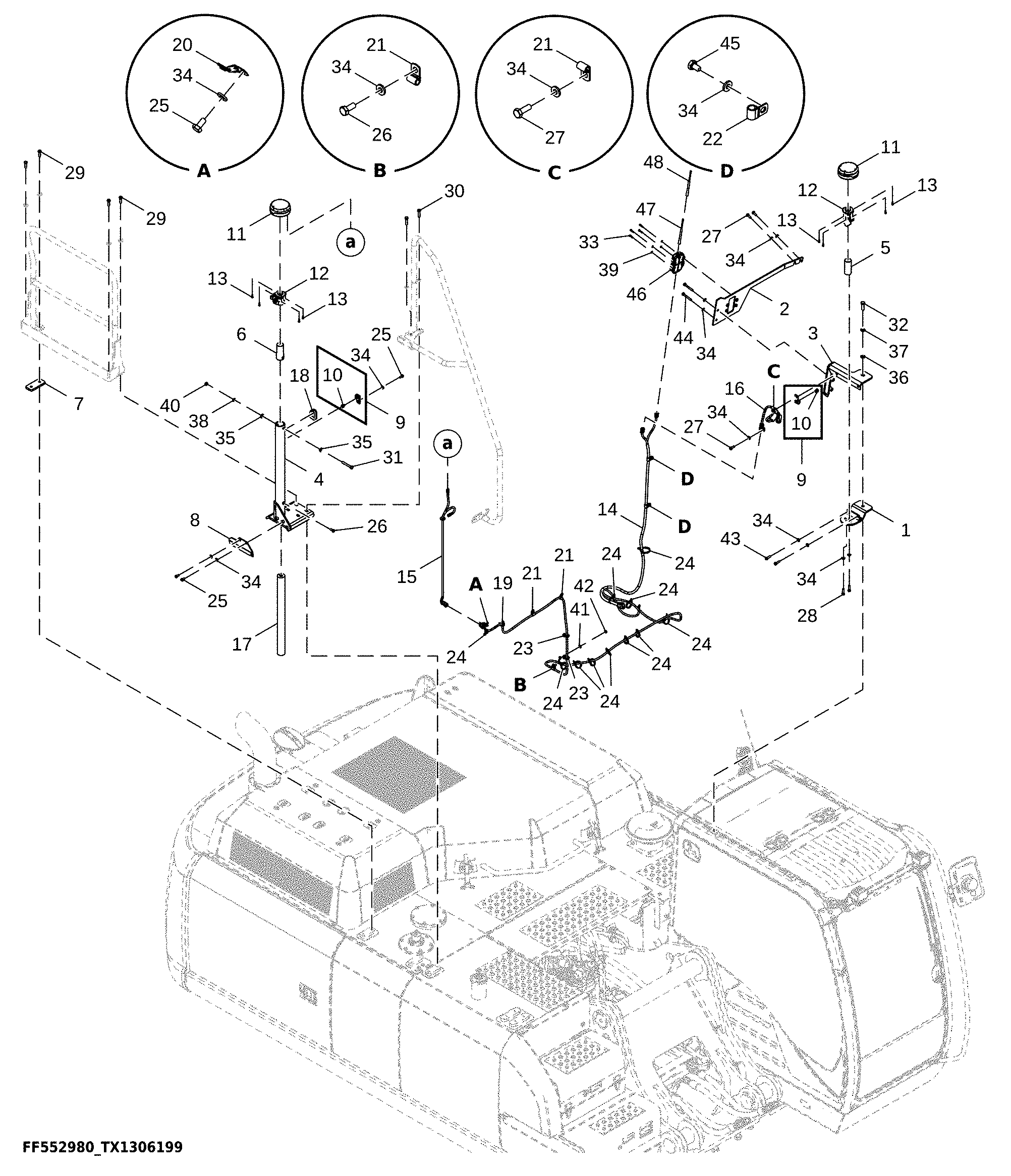

Global Navigation Satellite System (GNSS), Machine Control (814997 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	FF555688	1	Bracket	-
2	FF555687	1	Bracket	-
3	FF554523	1	Bracket	-
4	FF551010	1	Bracket	-
5	FF550754	1	Adapter	-
6	FF551189	1	Adapter	-
7	FF550761	1	Plate	-
8	FF551012	1	Cover	-
9	FF552032	2	Bracket	-
10	AT487669	1	Elec. Connector Terminal	-
11	AT490114	2	Antenna	GNSS Machine Control, GR-i3F; AT494301 NLA
12	AT491937	2	Clamp	-
13	19M7768	8	Screw	M6 X 16, SUB FOR J780616
14	AT514102	1	Wiring Harness	Radio GNSS Machine Control
15	AT515787	1	Wiring Harness	Main GNSS Machine Control
16	AT515788	1	Wiring Harness	Auxiliary GNSS Machine Control
17	FF551192	1	Isolator	-
18	4217048	1	Bushing	-
19	FF551251	1	Shield	-
20	57M8736	1	Elec. Connector Accessory	-
21	4190261	4	Clip	-
22	4190275	2	Clamp	-
23	AH225364	2	Clip	-
24	DH400240	11	Tie Band	-
25	19M7938	4	Cap Screw	M10 X 20, SUB FOR J901020
26	19M7402	2	Cap Screw	M10 X 25, SUB FOR J901025
27	19M7662	4	Cap Screw	M10 X 30, SUB FOR J901030
28	19M7358	2	Cap Screw	M10 X 40, SUB FOR J901040
29	19M7493	4	Cap Screw	M12 X 40, SUB FOR J901240
30	19M7361	2	Cap Screw	M12 X 50, SUB FOR J921250
31	19M8122	1	Cap Screw	M12 X 85, SUB FOR J901285
32	19M7409	1	Cap Screw	M16 X 50, SUB FOR J901650
33	19M8505	4	Screw	M6 X 25, SUB FOR J780625
34	24M7346	17	Washer	11 X 20 X 2 mm, SUB FOR DH400703
35	DH400704	2	Washer	-
36	24M7053	1	Washer	17 X 30 X 3 mm, SUB FOR A590116
37	12H294	1	Lock Washer	5/8", SUB FOR A590916
38	12H301	1	Lock Washer	1/2", SUB FOR A590912
39	24M7054	4	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
40	14M7275	1	Nut	M12, SUB FOR J950012
41	24M7028	1	Washer	10.500 X 20 X 2 mm, SUB FOR A590110
42	14M7274	1	Nut	M10, SUB FOR J950010
43	19M7550	2	Cap Screw	M10 X 35, SUB FOR J901035
44	19M7329	2	Cap Screw	M10 X 75, SUB FOR J901075
45	19M8324	2	Cap Screw	M10 X 16, SUB FOR J901016
46	AT515865	1	Receiver	Radio Controller Machine Control
47	AT486362	1	Antenna	Radio Machine Control, 450 MHz
48	AT495357	1	Antenna	Radio Machine Control, 915 MHz

Global Navigation Satellite System (GNSS), Machine Control (814997 - )
