Engine Control Unit (ECU) and Engine Interface Wiring Harness, Machine Control (814997 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE548097	1	Engine Controller	ECU
2	AT458826	1	Electronic Control Unit	M50
3	AT534358	1	Wiring Harness	Engine Interface
3	AT510308	1	Wiring Harness	Engine Interface
4	AT505852	1	Wiring Harness	Aftertreatment
5	AT502218	1	Wiring Harness	Diesel Exhaust Fluid (DEF) Fuel
6	AT471259	1	Wiring Harness	Cooling And Fan
7	FF518483	1	Bracket	-
8	FF550055	1	Bracket	-
9	FF530624	1	Bracket	-
10	4372200	1	Spacer	-
11	19M7560	2	Cap Screw	M6 X 16, SUB FOR J900616
12	19M7162	3	Cap Screw	M8 X 16, SUB FOR J900814
13	19M7162	6	Cap Screw	M8 X 16, SUB FOR J900816
14	19M7301	4	Cap Screw	M8 X 40, SUB FOR J900840
15	19M7938	21	Cap Screw	M10 X 20, SUB FOR J901020
16	19M7402	4	Cap Screw	M10 X 25, SUB FOR J901025
17	19M7662	7	Cap Screw	M10 X 30, SUB FOR J901030
18	4193848	1	Clip	SUB FOR 4190291
19	4190274	3	Clip	-
20	4259220	3	Clip	SUB FOR 4254600
21	H224073	1	Tie Band	-
22	N380408	1	Clamp	-
23	4190261	5	Clip	-
24	AH79175	1	Clip	SUB FOR 4190272
25	T28949	5	Clamp	SUB FOR 4190273
26	4190275	17	Clamp	-
27	4192035	6	Clip	-
28	4193848	4	Clip	-
29	14M7027	4	NUT	M6, SUB FOR J950006
30	T269643	4	Clamp	-
31	T269640	2	Clamp	-
32	DH400240	14	Tie Band	-
33	H77698	4	Tie Band	SUB FOR 4055311
34	24M7054	6	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
35	24M7055	13	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
36	24M7346	32	Washer	11 X 20 X 2 mm, SUB FOR DH400703
37	19M7288	1	Cap Screw	M8 X 30, SUB FOR J900830
38	19M9837	4	Screw	M8 X 25

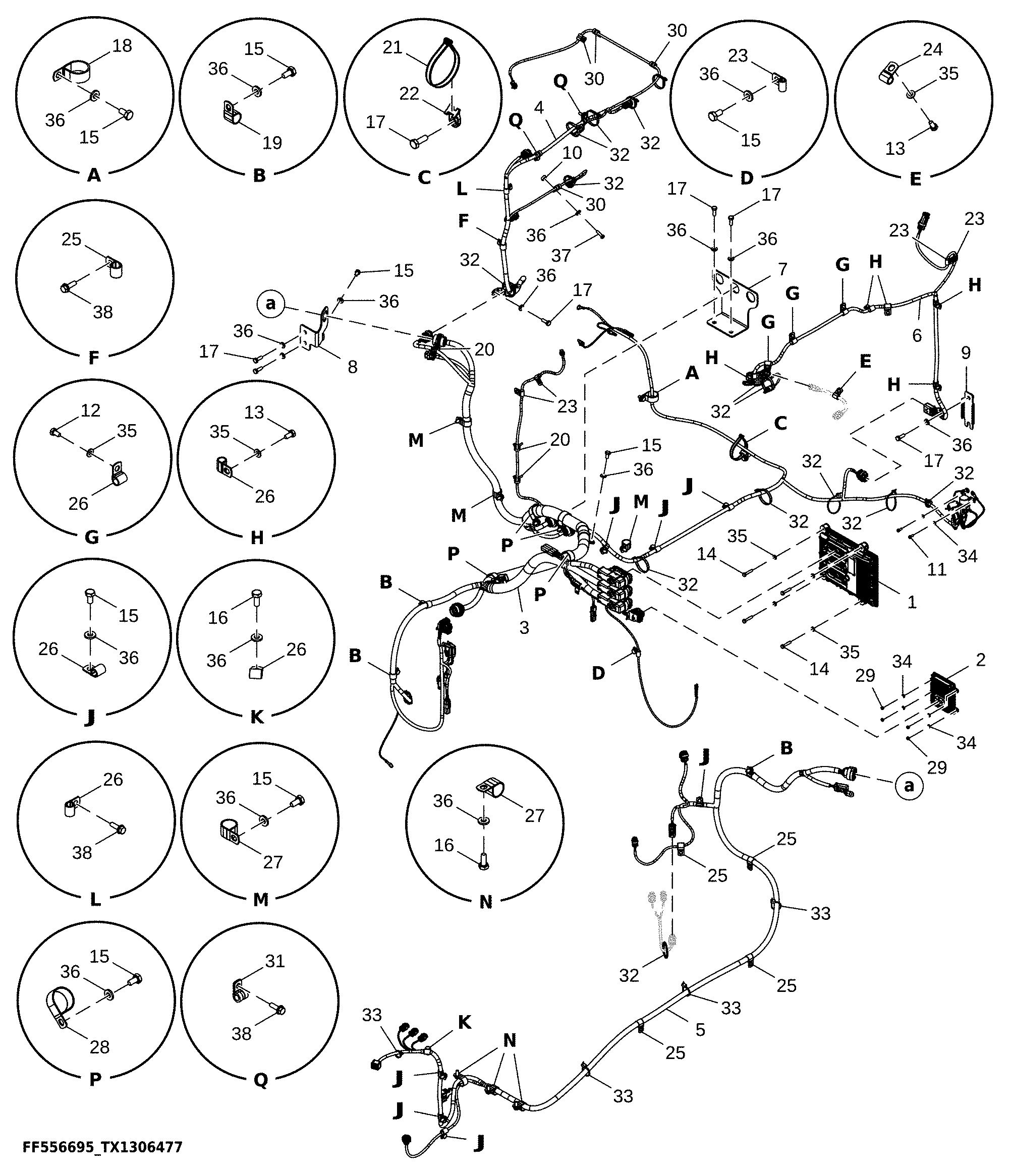

Engine Control Unit (ECU) and Engine Interface Wiring Harness, Machine Control (814997 - )
