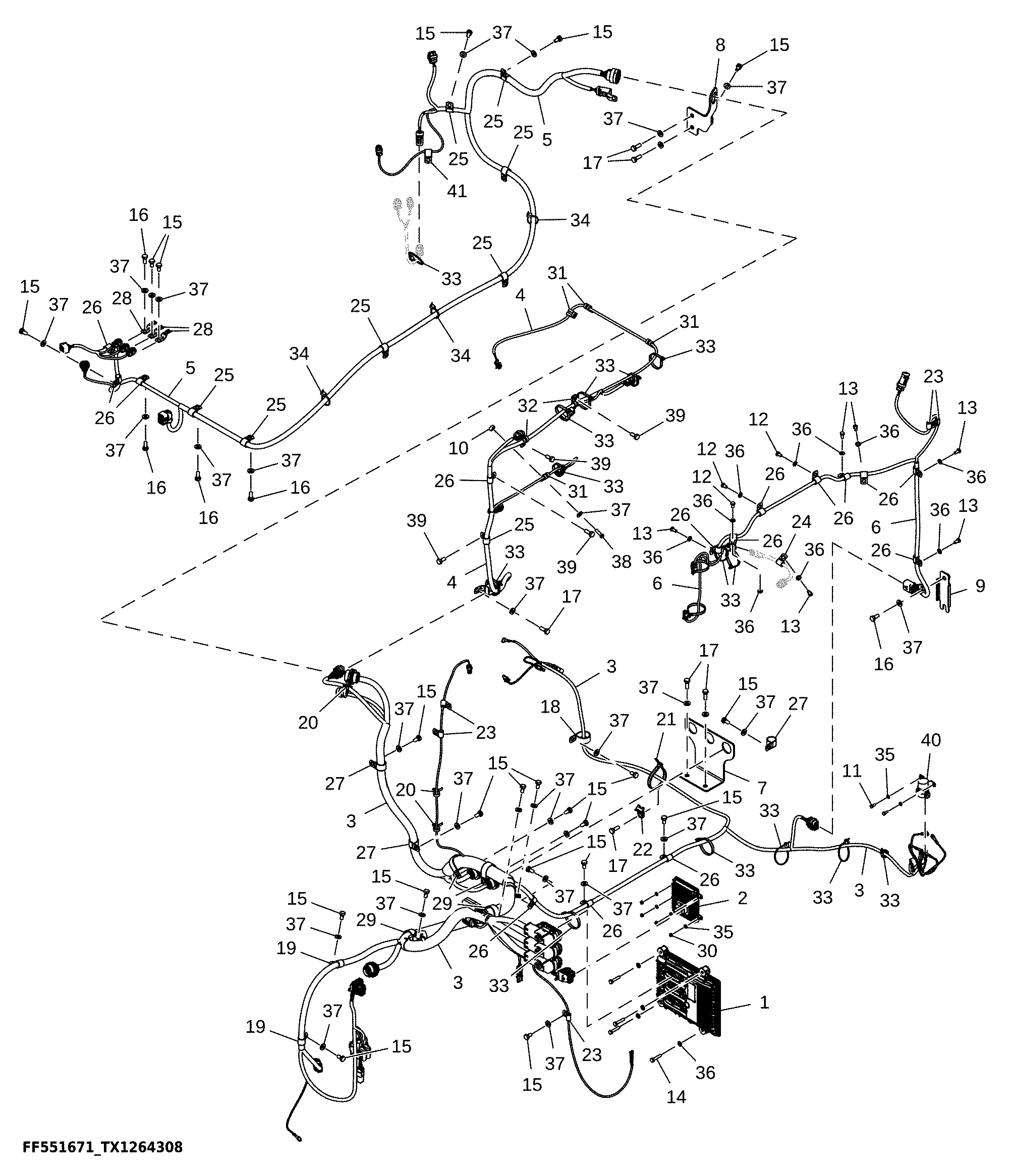

Engine Control Unit (ECU) and Engine Interface Wiring Harness (812867 - 814799)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE548097	1	Engine Controller	ECU
2	AT458826	1	Electronic Control Unit	M50
3	AT504134	1	Wiring Harness	Engine Interface, SUB FOR AT479784
4	AT470825	1	Wiring Harness	Aftertreatment Device
5	AT471260	1	Wiring Harness	Diesel Exhaust Fluid (DEF)
6	AT471259	1	Wiring Harness	Cooling And Fan
7	FF518483	1	Bracket	-
8	FF550055	1	Bracket	-
9	FF530624	1	Bracket	-
10	4372200	1	Spacer	-
11	19M7560	2	Cap Screw	M6 X 16, SUB FOR J900616
12	19M7162	3	Cap Screw	M8 X 16, SUB FOR J900814
13	19M7162	6	Cap Screw	M8 X 16, SUB FOR J900816
14	19M7301	4	Cap Screw	M8 X 40, SUB FOR J900840
15	19M7938	21	Cap Screw	M10 X 20, SUB FOR J901020
16	19M7402	5	Cap Screw	M10 X 25, SUB FOR J901025
17	19M7662	6	Cap Screw	M10 X 30, SUB FOR J901030
18	4193848	1	Clip	SUB FOR 4190291
19	4190274	2	Clip	-
20	4259220	3	Clip	SUB FOR 4254600
21	H224073	1	Tie Band	-
22	N380408	1	Clamp	-
23	4190261	5	Clip	-
24	AH79175	1	Clip	SUB FOR 4190272
25	T28949	8	Clamp	SUB FOR 4190273
26	4190275	15	Clamp	-
27	4192035	3	Clip	-
28	57M8736	3	Elec. Connector Accessory	-
29	4193848	4	Clip	-
30	14M7027	4	NUT	M6, SUB FOR J950006
31	T269643	4	Clamp	-
32	T269640	2	Clamp	-
33	DH400240	14	Tie Band	-
34	H77698	3	Tie Band	SUB FOR 4055311
35	24M7054	6	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
36	24M7055	14	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
37	24M7346	32	Washer	11 X 20 X 2 mm, SUB FOR DH400703
38	19M7288	1	Cap Screw	M8 X 30, SUB FOR J900830
39	19M9837	4	Screw	M8 X 25
40	AT145341	1	Relay	Starter
41	T30367	1	Clamp	SUB FOR 4190271

Engine Control Unit (ECU) and Engine Interface Wiring Harness (812867 - 814799)
