Engine Control Unit and Engine Interface Wiring Harness (Engine 6090HT102-RE548089) ( - 811697)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE548097	1	Engine Controller	-
2	AT411098	1	Electronic Control Unit	-
3	AT440671	1	Wiring Harness	Interface
4	AT438227	1	Wiring Harness	Aftertreatment Device
5	AT433022	1	Wiring Harness	Diesel Exhaust Fluid
6	AT438199	1	Wiring Harness	Cooling
7	FF518483	1	Bracket	-
8	19M7865	2	Screw	M8 X 16
9	19M7560	2	Cap Screw	M6 X 16, SUB FOR J900616
10	19M7301	4	Cap Screw	M8 X 40, SUB FOR J900840
11	19M7938	18	Cap Screw	M10 X 20, SUB FOR J901020
13	19M7662	6	Cap Screw	M10 X 30, SUB FOR J901030
14	4190275	1	Clamp	SUB FOR 4190261
15	AH79175	6	Clip	SUB FOR 4190272
16	T28949	2	Clamp	SUB FOR 4190273
17	T28949	3	Clamp	SUB FOR 4190274
18	4190275	3	Clamp	-
19	4190277	1	Clamp	-
20	4193848	2	Clip	SUB FOR 4190291
21	XCL-19	2	Hose Clamp	SUB FOR 4192035
22	4254600	2	Clip	-
23	57M8736	4	Elec. Connector Accessory	-
24	DH400240	7	Tie Band	-
25	H224073	1	Tie Band	-
26	14M7027	4	NUT	M6, SUB FOR J950006
27	57M8035	9	Nut	-
28	24M7346	25	Washer	11 X 20 X 2 mm, SUB FOR DH400703
29	24M7055	4	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
30	24M7054	6	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
31	57M7765	9	Lock Washer	-
32	N380408	1	Clamp	-
33	FF528860	1	Bracket	-
34	FF530624	1	Bracket	-
35	19M7402	3	Cap Screw	M10 X 25, SUB FOR J901025
36	57M10497	1	Elec. Connector Housing	-
37	57M8018	4	Electrical Connector Assy	-
38	57M8131	3	Electronic Terminator	-
39	R104570	7	Electrical Connector Assy	-
40	57M8487	7	Electrical Connector Cap	-
41	T269643	4	Clamp	-
42	19M9837	4	Screw	M8 X 25
43	T269640	2	Clamp	-
44	4193848	4	Clip	-
45	14M7273	2	Nut	M8, SUB FOR J950008
46	19M7866	4	Screw	M8 X 20
47	AT145341	4	Relay	Starter

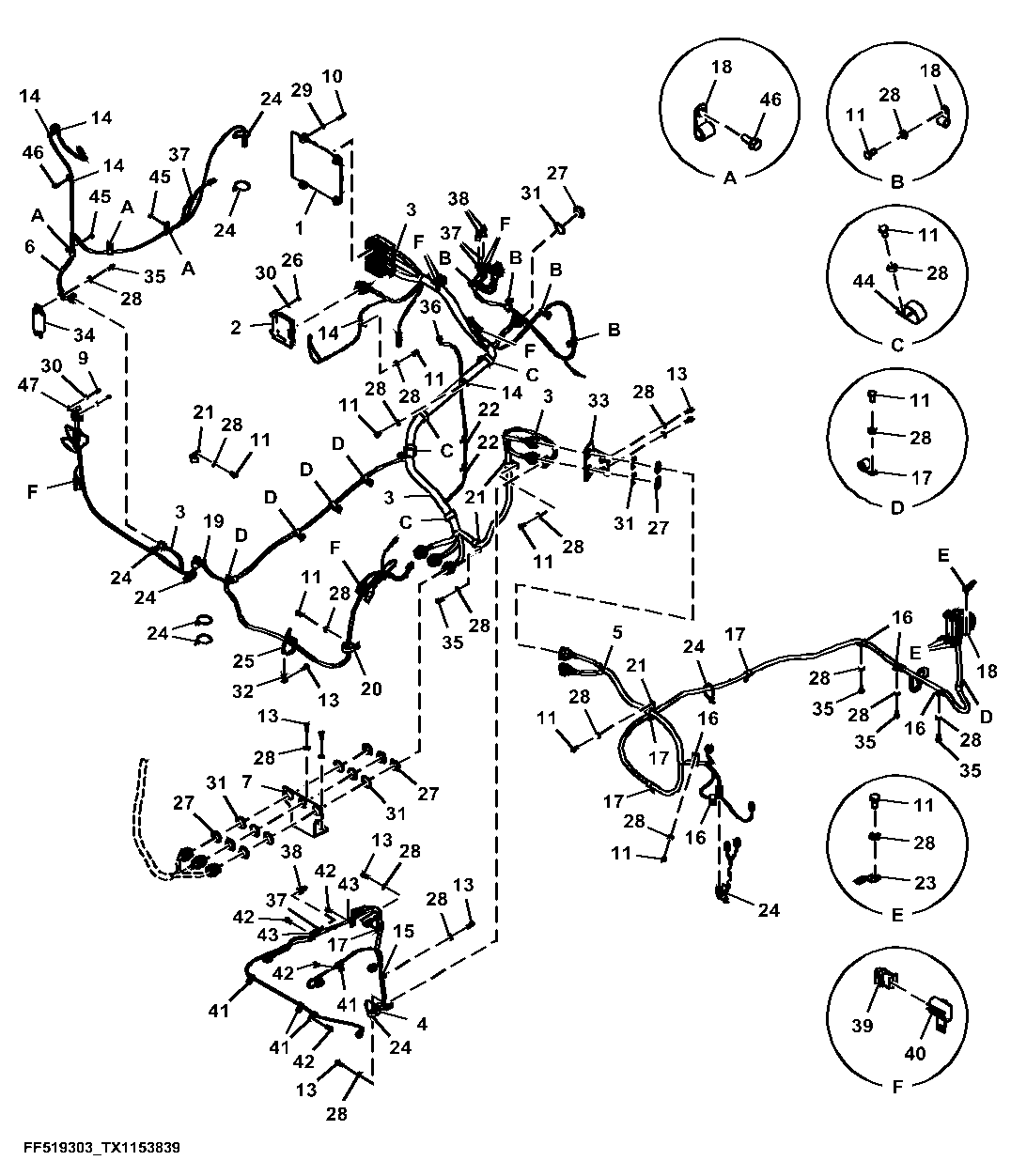

Engine Control Unit and Engine Interface Wiring Harness (Engine 6090HT102-RE548089) ( - 811697)
