Открытый узел

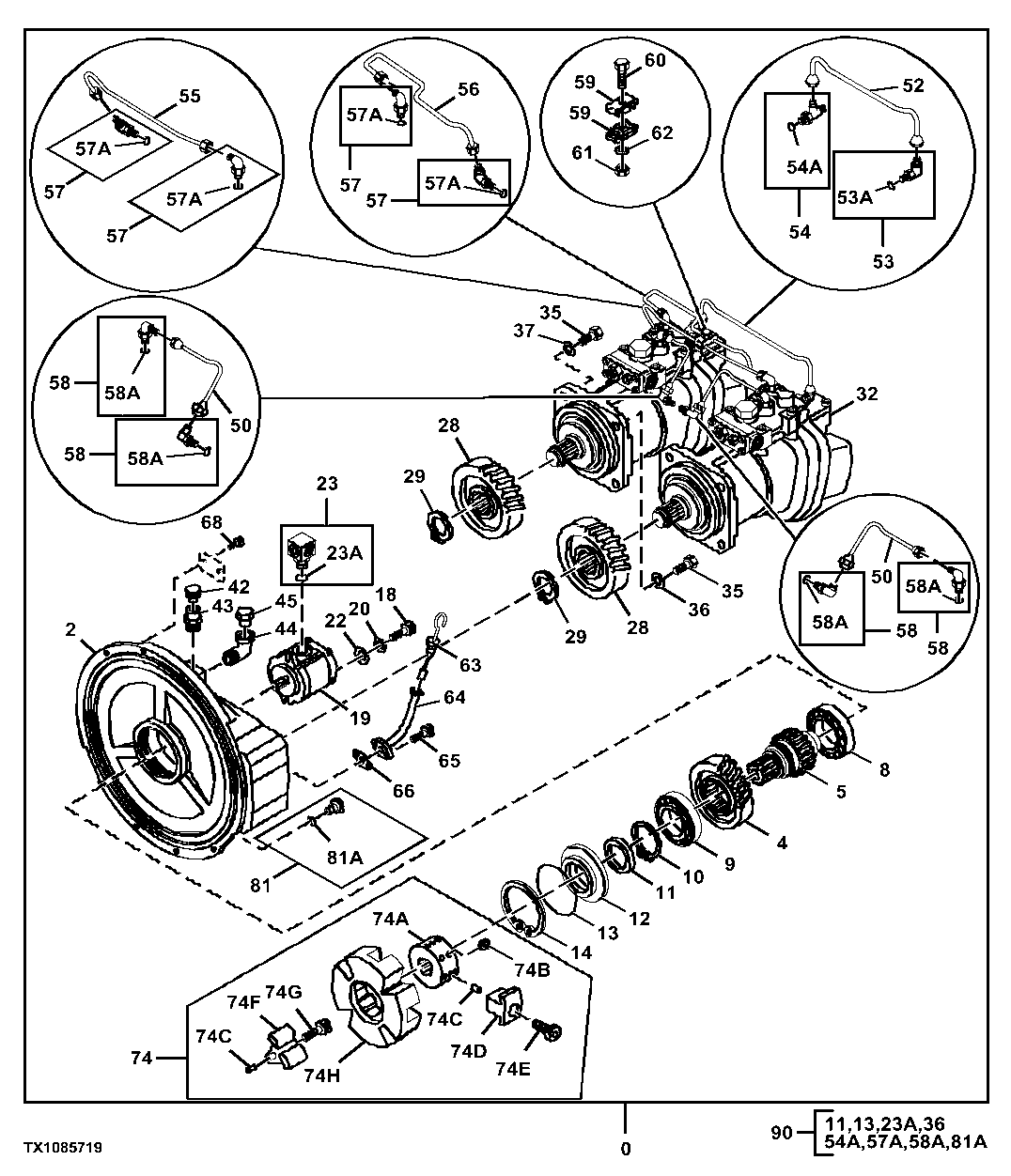

Hydraulic Pump Components, Early Units

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	FYB60003396	1	Pump	Hydraulic Pump, SUB FOR 9257126
2	FYB00001137	1	Gear Case	ALSO ORDER FYB00001128 AND FYB00001129, SUB FOR 1033049
4	3104554	1	Gear	-
5	3081085	1	Pinion Shaft	-
8	FYB00001128	1	Bearing	SUB FOR 4395453 OR AT250102
9	FYB00001129	1	Bearing	SUB FOR 4395457 AND 4720025
10	40M7120	1	Snap Ring	SUB FOR TH106793 OR 4191219
11	TH109453	1	Seal	SUB FOR 4179833
12	3033593	1	Cover	SUB FOR TH109454
13	AT264339	1	O-Ring	SUB FOR 4179834, TH100122 OR A811120
14	40M7178	1	Snap Ring	SUB FOR 991733
18	19M8337	2	Screw	M10 X 30, SUB FOR M341030
19	FYB00003984	1	Pump	Pilot Pump Components On Separate Page, SUB FOR 9217993
20	12M7135	2	Lock Washer	10 mm, SUB FOR 12M6791 OR 984054
22	4114402	2	Washer	SUB FOR TH102181
23	4191974	1	Adapter Fitting	SUB FOR TH109459
28	3104555	2	Gear	-
29	40M7166	2	Snap Ring	SUB FOR 991345
32	9260885	2	Hydraulic Pump	For Non North American Applications Additional Components On Separate Page
32	PG200274	2	Hydraulic Pump Reman	Additional Components On Separate Pages For North American Applications Not Available In Brazil, REMAN FOR 9260885; SUB FOR 9257309 AND 9260886
35	19M7489	8	Cap Screw	M16 X 45, SUB FOR TH101724 OR J901645
36	4126090	4	Sealing Washer	-
37	12H294	4	Lock Washer	5/8", SUB FOR A590916
42	FYB00000680	1	Breather	-
43	4317633	1	Adapter Fitting	-
44	15H621	1	Elbow Fitting	3/4", SUB FOR 94-0649
45	4645330	1	Plug	-
50	4438889	2	Oil Line	SUB FOR TH4438889
52	4438888	1	Oil Line	NLA, ORDER 4625021, ALSO ORDER 4154670, A852422, FYB00002955, SUB FOR FYB0000665
53	4293950	1	Fitting	-
54	A852422	1	Tee Fitting	SUB FOR 4203485
55	3089617	1	Oil Line	NLA, ORDER FYB00002955, ALSO ORDER 4625021, A852422, 4154670
56	3089618	1	Oil Line	SUB FOR TH3089618
57	4118499	4	Elbow Fitting	SUB FOR TH101821
58	4293950	4	Fitting	-
59	4179843	2	Clamp	SUB FOR TH109471
60	19M7288	1	Cap Screw	M8 X 30, SUB FOR J900830
61	14M7273	1	Nut	M8, SUB FOR M500807
62	12M7065	1	Lock Washer	8 mm, SUB FOR A590908
63	FYB00003032	1	Gauge	SUB FOR TH112088, 4721548 AND 4242263
64	4242262	1	Oil Tube	SUB FOR TH112089
65	19M7647	2	Screw	M8 X 16, SUB FOR AT217709 OR M340816
66	9742779	1	Gasket	SUB FOR AT214401
68	37H99	2	Screw	0.100" X 1/4", SUB FOR TH100069 OR M492564
74	FYB00003277	1	Coupling	SUB FOR 4646894
81	15M7036	1	Drain Plug	SUB FOR TH109285, TH101813 OR 4092534
90	FYB00002431	1	Seal Kit	SUB FOR 4471487
23A	4506418	1	O-Ring	-
53A	957366	1	O-Ring	-
54A	M800650	1	Packing	SUB FOR 957366
57A	M800650	1	Packing	SUB FOR 957366
58A	M800650	1	Packing	SUB FOR 957366
74A	4659040	1	Retainer	-
74B	22M7137	2	Set Screw	M16 X 16, SUB FOR 4183170 OR TH4183170
74C	34M7117	12	Spring Pin	5 X 10 mm, SUB FOR 4101345, TH4101345 OR TH105991
74D	4655136	4	Insert	-
74E	4216949	4	Screw	SUB FOR TH111404
74F	4655135	4	Insert	-
74G	4216948	4	Screw	SUB FOR TH111403
74H	4655134	1	Coupling	-
81A	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32"), SUB FOR 4509180

Hydraulic Pump Components, Early Units

Нет текстового описания
