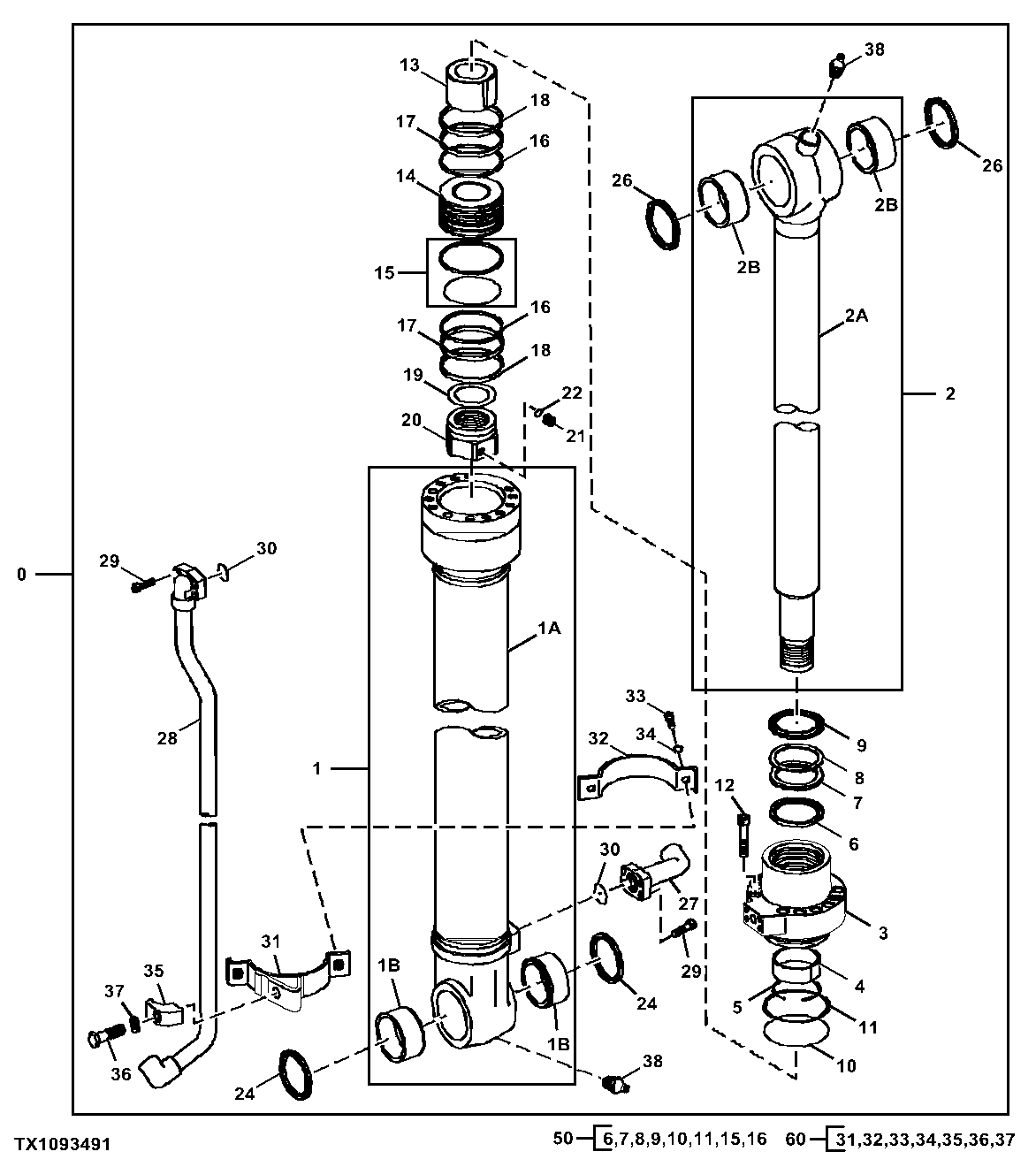

Bucket Cylinder Components, 18m Super Long Front

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4370785JEX	1	Hydraulic Cylinder Reman	SUB FOR 4370785
1	AH155038	1	Hydraulic Cylinder Barrel	SUB FOR 0694401
1	AH234914	1	Hydraulic Cylinder Barrel	SUB FOR PG201438
2	AH234896	1	Rod	SUB FOR 0694402
2	-	1	Part 9	PG201440 NLA
3	H158027	1	Hydr. Cylinder Rod Guide	SUB FOR 0675105
4	TH109311	1	Wear Ring	SUB FOR 0310504
5	TH109312	1	Snap Ring	SUB FOR 0240904
6	AH148777	1	Ring	SUB FOR 0409605
7	0240911	1	Packing	SUB FOR 4S00189 OR TH109314
8	0240912	1	Back-Up Ring	SUB FOR 4S00190 OR TH109315
9	H155867	1	Seal	SUB FOR 0667504
10	AT264319	1	O-Ring	SUB FOR A811100
11	TH109318	1	Back-Up Ring	SUB FOR 0310506
12	19M8930	12	Screw	M14 X 65, SUB FOR 0408805
13	H163452	1	Ring	SUB FOR 0694403
14	H158463	1	Piston	SUB FOR 0408808
15	AT264387	1	Ring	SUB FOR 0310508
16	AT153919	2	Back-Up Ring	SUB FOR 0408809
17	H158459	2	Scraper Ring	SUB FOR 0666808
18	AT264388	2	Ring	SUB FOR 0310510
19	TH109328	1	Shim	SUB FOR 0310514
20	H158465	1	Nut	SUB FOR 0666809
21	22M6684	1	Set Screw	M12 X 12, SUB FOR 0309011
22	T13624	1	Ball	SUB FOR 0111707
24	TH100374	2	Seal	SUB FOR 0409112
26	TH104472	2	Seal	SUB FOR 0408810
27	8086114G	1	Oil Line	SUB FOR 0309312 OR 8086114
28	AH234869	1	Oil Line	SUB FOR 0694404 AND AH155048
29	19M8337	8	Screw	M10 X 30, SUB FOR 0158855
30	AT264360	2	O-Ring	SUB FOR 4506430
31	AHC10166	1	Clamp	SUB FOR 0675108 AND AH152929
32	H159705	1	Band	SUB FOR 0409612
33	19M7550	2	Cap Screw	M10 X 35, SUB FOR 0408815
34	12M7066	2	Lock Washer	10 mm, SUB FOR 0325913
35	T108036G	1	Clamp	SUB FOR 0309021 OR T108036
36	19M7362	1	Cap Screw	M12 X 55, SUB FOR 0667013
37	12M7067	1	Lock Washer	12 mm, SUB FOR 0208516
38	TH100074	2	Lubrication Fitting	SUB FOR J75481
40	AT330599	1	Field Installation Kit	(ADDITIONAL COMPONENTS ON SEPARATE PAGES.) (REQUIRES ADDITIONAL 3400 LBS TO COUNTERWEIGHT.) 18 m, Not Illustrated, ALSO ORDER T227662, T153672, T153673 AND (2) JD5855; WHOLE GOODS
50	AH155040	1	Hydraulic Cylinder Kit	SUB FOR 4389721
60	0675109	1	Kit	-
1A	-	1	Part 3	NSEP
1B	4362025	2	Bushing	-
2A	-	1	Part 7	NSEP
2B	4352400	2	Bushing	-

Bucket Cylinder Components, 18m Super Long Front

Нет текстового описания
