Arm Hi-Flow Auxiliary Lines, 3.2 m ( - 812858)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	8093647G	1	Oil Line	-
2	8093646G	1	Oil Line	-
3	4640645	1	Hydraulic Hose	-
4	4642276	1	Hydraulic Hose	-
5	T76938	2	O-Ring	SUB FOR 4187328
6	T78612	2	O-Ring	SUB FOR 4187329
9	T78612	1	O-Ring	SUB FOR 4187329
10	J901085	2	Bolt	SUB FOR 19M8197
11	A885008	1	Pipe Plug	-
12	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR DH400703
14	4042035	1	Adapter Fitting	-
16	J901095	2	Bolt	-
17	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR DH400703
18	4190127	2	Clamp	-
19	4053698	2	Clamp	-
20	19M8088	4	Cap Screw	M12 X 75, SUB FOR J901275
21	DH400704	4	Washer	-
22	4475437	1	Flow Control Hyd. Valve	-
23	4447675	1	Flow Control Hyd. Valve	-
24	TH101926	2	O-Ring	-
25	X16-20F4OMXS	1	Adapter Fitting	1 in., 37°
25	AT352806	1	Fitting	1.25 in., SAE Male
25	A853108	1	Adapter Fitting	1 in., ORFS
25	A853100	1	Adapter Fitting	1.25 in., ORFS
26	R29936	2	O-Ring	-
27	X1JS78-20-16	2	Hose Fitting	1.25 in. x 1 in., Hose End Straight
27	X1J978-20-16	2	Elbow Fitting	90°, 1.25 in. x 1 in., Hose End
28	AT186129	1	Plug	-
29	AT186126	1	Quick Coupler	-
30	AT325336	1	Adapter Fitting	1–1/4 BSPP – 1–1/4 SAE
30	970860	1	O-Ring	BSPP End
30	X16F4OMXS	1	Adapter Fitting	1 in., 37°, SAE Male
30	X1216F4OMXS	1	Adapter	0.75 in., 37°
30	AT301151	1	Fitting	1 in., SAE Male
30	AT318016	1	Adapter Fitting	0.75 in., ORFS, SUB FOR 4189537
30	4189535	1	Adapter Fitting	1 in., ORFS
31	AT186112	1	Quick Coupler	Male Quick Coupler (-16) 1 5/16 SAE O -Ring
32	AT186113	1	Cap	-
33	AT117365	2	Hydr. Quick Coupler Plug	Male Quick Coupler (-12) 1 1/16 SAE O -Ring
33	AT120498	2	Coupling	Male Quick Coupler (-16) 1 5/16 SAE O -Ring
34	AT117364	2	Hydr. Quick Coupler Socket	Female Quick Coupler (-12) 1 1/16 SAE O -Ring
34	AT120499	2	Coupling	Female Quick Coupler (-12) 1 1/16 SAE O -Ring
35	4205196	1	Adapter Fitting	-
35	TH101926	1	O-Ring	SUB FOR 4506429
36	A885000	1	Pipe Plug	-
36	970860	1	O-Ring	-
80	AT390766	1	Field Installation Kit	3.2 m, Whole Goods Hi-Flow Auxiliary Lines Standard Arm Additional Components On Separate Pages

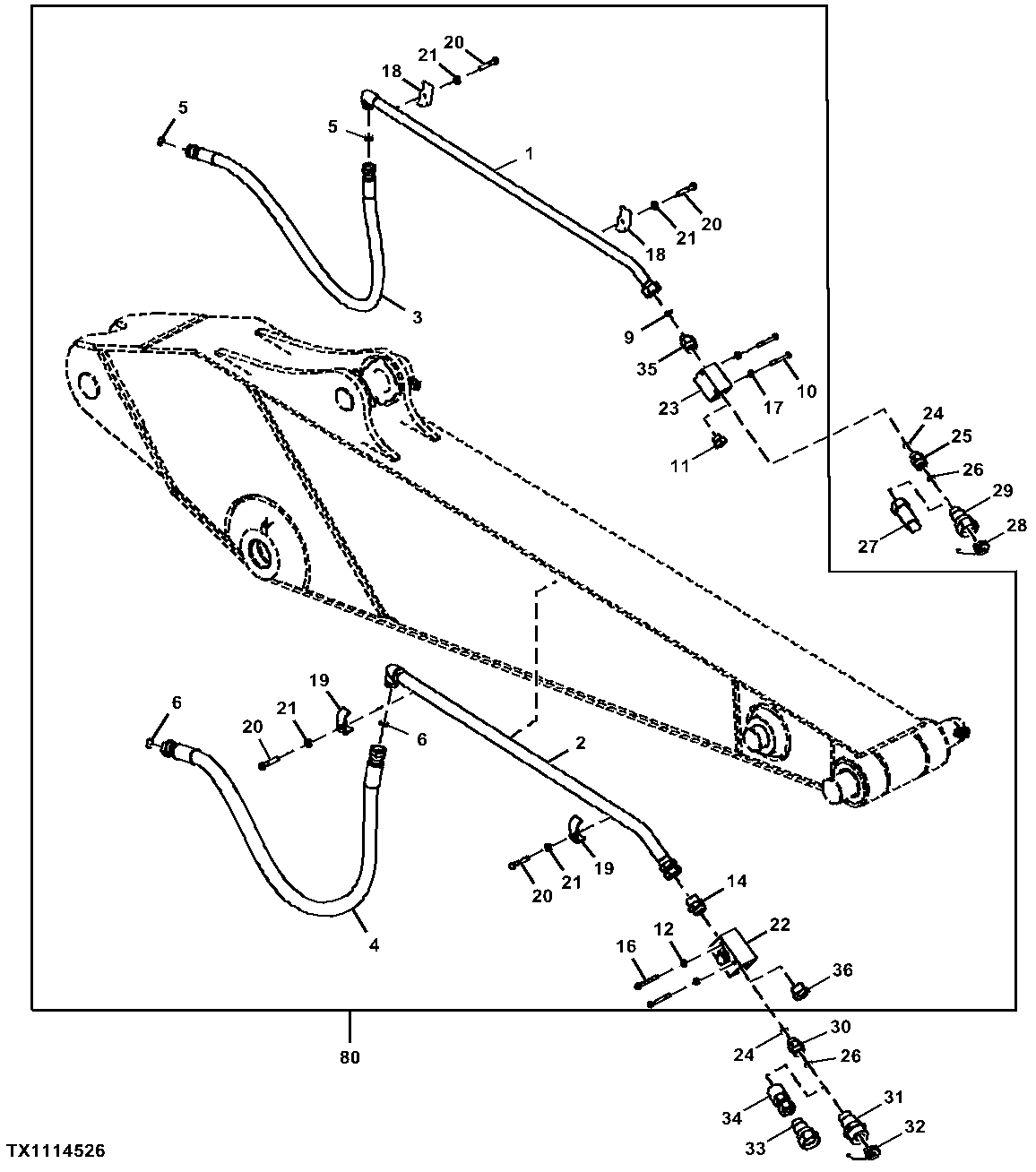

Arm Hi-Flow Auxiliary Lines, 3.2 m ( - 812858)
