Открытый узел

Batteries, Support, Cables, Wiring Harness and Relay

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TY23020	2	Dry Charged Battery	4D en_US_COLDCRANKINGAMPS , 1400en_US_MINUTERESERVE, SUB FOR DH100015, 4237922
2	4430289	4	Rod	-
3	14M7274	9	Nut	M10, SUB FOR J950010
4	4255762	1	Relay	Battery Relay, SUB FOR 8943795431
5	19M7288	2	Cap Screw	M8 X 30, SUB FOR J900830
6	24M7055	5	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
7	T28949	3	Clamp	SUB FOR 4190273
8	24M7028	5	Washer	10.500 X 20 X 2 mm, SUB FOR A590110
9	14M7025	4	Wing Nut	M10, SUB FOR M570010
10	19M7162	3	Cap Screw	M8 X 16, SUB FOR J900816
11	FF101926	1	Cover	-
12	19M7402	5	Cap Screw	M10 X 25, SUB FOR J901025
13	DH400872	1	Cable	-
14	DH400410	1	Battery Cable	-
15	4190266	2	Clip	-
16	4397839	1	Ground Cable	SUB FOR 4392330
17	12M7066	1	Lock Washer	10 mm, SUB FOR A590910
18	24M7346	8	Washer	11 X 20 X 2 mm, SUB FOR DH400703
19	FF100273	2	Bracket	-
20	FF100290	4	Spacer	-
21	FF101678	1	Battery Cable	-
22	FF101679	2	Cover	-
23	FF104372	1	Battery Cable	-
24	AT344623	1	Wiring Harness	Starter Protection Components On Another Page
24	AT372301	1	Wiring Harness	Starter Protection Components On Another Page
25	AT322385	1	Wiring Harness	Start Terminal Jumper Components On Another Page
26	19M8425	3	Cap Screw	M6 X 16, SUB FOR J900616
27	24M7054	3	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
28	DH400240	11	Tie Band	-

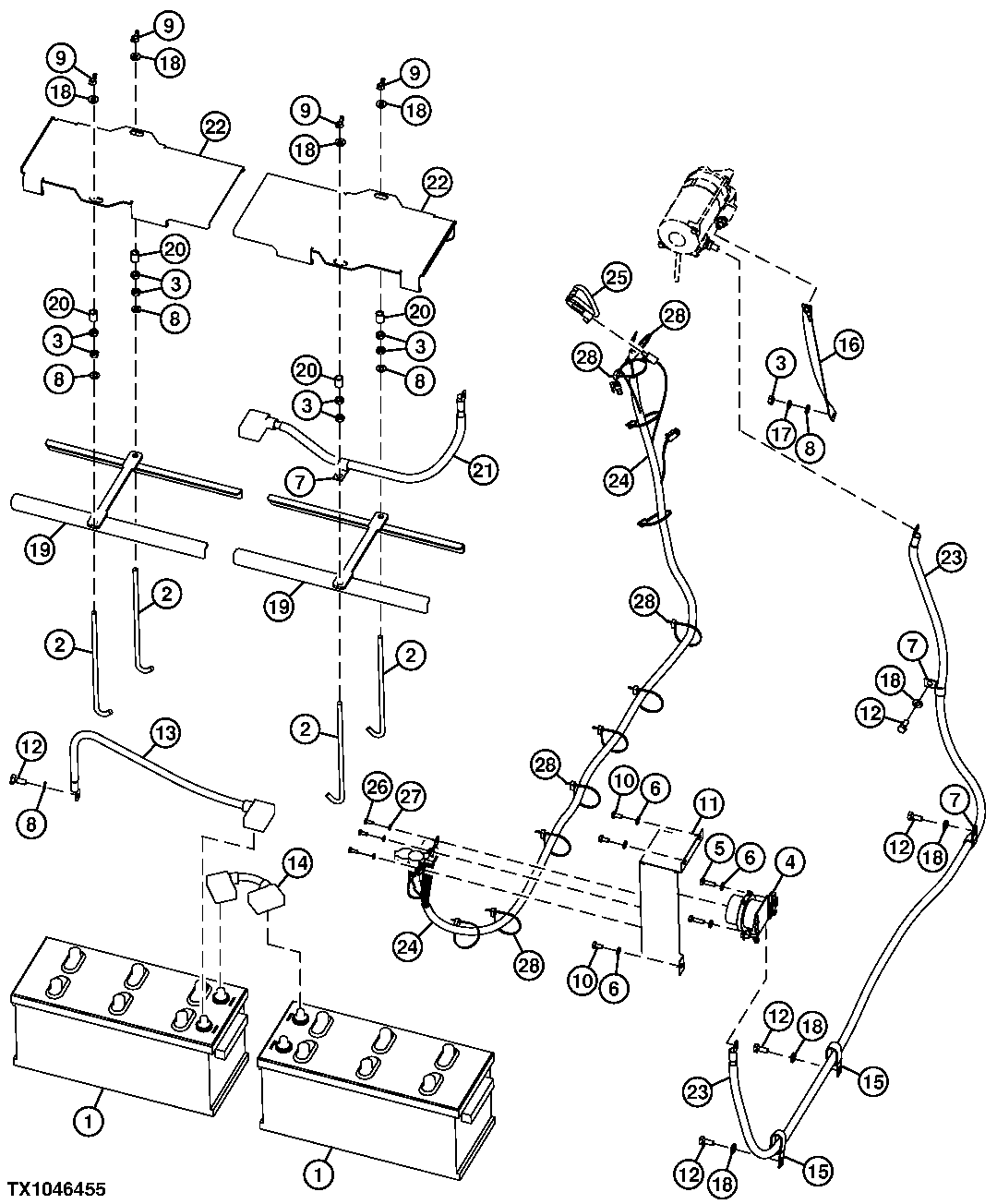

Batteries, Support, Cables, Wiring Harness and Relay

Нет текстового описания
