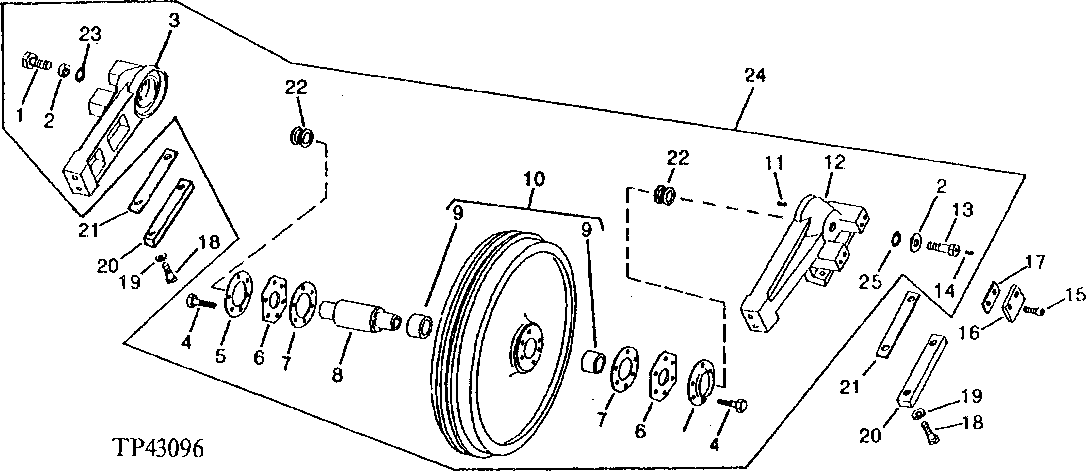

TRACK IDLER ASSEMBLY (RIGHT SIDE ILLUSTRATED) [01A22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3674	1	Cap Screw	HS, SAE 8, 3/4" X 1-3/4"
2	R78019	2	Washer	(SUB FOR T21397)
3	T105188	1	BRACKET	LEFT (SUB AT113581 WHICH CONSISTS OF T112719 LEFT IDLER BRACKET AND T112720 RIGHT IDLER BRACKET)
3	T112719	1	BRACKET	-
4	19H2923	12	Screw	3/8" X 1"
5	T33367	2	RING	-
6	T59942	2	PLATE	(SUB FOR T33366)
7	T38969	2	GASKET	0.3 MM (.012")
8	T16844	1	SHAFT	(ALSO ORDER 34H260 AND T13381)
9	T16881	2	BUSHING	-
10	AT104569	1	ROLLER SHELL	FRONT, (MARKED T105189)
11	T13381	1	DOWEL PIN	-
12	T105222	1	BRACKET	RIGHT
12	T112720	1	BRACKET	-
13	T105368	1	Fitting Plug	-
13	R28782	1	O-Ring	-
13	T126352	1	BOLT	(SUB FOR T77122 AND T121498, THIS APPLICATION) (SUB FOR T105366) (WHEN SUBBED FOR T77122, ALSO ORDER T105368 AND R28782)
14	T125615	1	Pipe Plug	(SUB FOR R21630, THIS APPLICATION)
15	19H2964	8	Cap Screw	7/16" X 1-1/8"
16	T27516	4	STRAP	-
17	T20850	1	STRAP	0.7 MM (.030")
18	19H2500	4	CAP SCREW	7/16" X 1-3/8"
19	12H293	4	Lock Washer	7/16"
20	T20851	2	STRAP	-
21	T20852	6	STRAP	0.7 MM (.030")
22	AT135802	2	SEAL	(SUB FOR AT78941 AND AT71677)
23	T16752	1	O-RING	-
24	AT104595	1	TRACK IDLER	(LEFT)
24	AT104596	1	TRACK IDLER	(RIGHT)
25	T13119	1	O-Ring	-

TRACK IDLER ASSEMBLY (RIGHT SIDE ILLUSTRATED) [01A22]
