Открытый узел

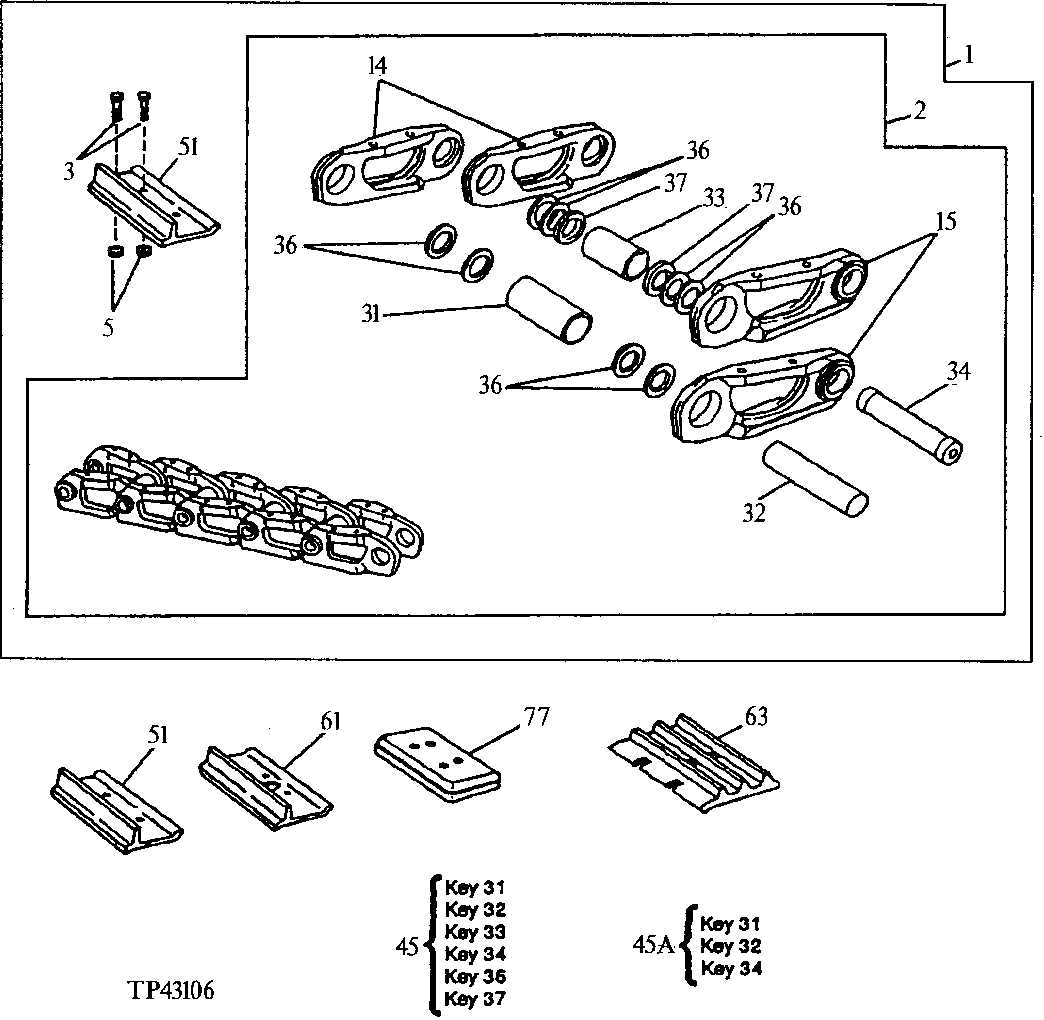

SEALED TRACK CHAIN, WITH NON-STRUTTED LINKS (36L) [01B08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT120429	2	TRACK ASSEMBLY WITH SHOES	355MM (14") OPEN CENTER,SINGLE BAR (36L) (SUB FOR AT120428, AT148531 AND AT148529)
1	AT113056	2	TRACK ASSEMBLY WITH SHOES	305MM (12") OPEN CENTER,THREE BAR (36L) (SUB FOR AT113454 AND AT148529)
1	AT120431	2	TRACK ASSEMBLY WITH SHOES	355MM (14") CLOSED CENTER,SINGLE BAR (36L) (SUB FOR AT120430 AND AT148532)
2	AT112966	1	TRACK CHAIN W/O SHOES	(36L) (SUB FOR AT113023 AND AT148528)
3	T40535	144	BOLT	(USE IF AVAILABLE) (USE WITH T14913 NUT) (SUB T130032 AND T129173)
3	T130032	144	BOLT	(USE WITH T129173 NUT) (SUB FOR T40535 - ALSO ORDER T129173)
5	T14913	144	NUT	(USE IF AVAILABLE) (USE WITH T40535 BOLT) (SUB T129173 AND T130032)
5	T129173	144	NUT	(USE WITH T130032 BOLT) (SUB FOR T14913 - ALSO ORDER T130032)
14	T112147	36	NON-STRUTTED LINK-LH	(SUB FOR T19000)
15	T112148	36	NON-STRUTTED LINK-RH	(SUB FOR T19001)
31	T19562	36	BUSHING	(USED FOR REGULAR LINKS AS WELL AS FOR MASTER LINK)
31	T112149	35	BUSHING	-
32	T19563	35	TRACK PIN	-
33	T19562	1	BUSHING	-
34	T54529	1	MASTER TRACK PIN	-
34	T61367	1	MASTER TRACK PIN	(OVERSIZED)
36	T112132	144	SPRING WASHER	-
37	T112150	2	WASHER	-
45	AT113024	1	PIN & BUSHING KIT	(INCLUDES (144) T112132, (36) T112149, (2) T112150, T19562, (36) T19563 AND T54529)
51	T75589	36	SINGLE BAR SHOE	355MM (14") (CAN NOT BE USED WITH T112407 355MM (14") SHOES)
51	T112407	36	SINGLE BAR SHOE	355MM (14") (CAN NOT BE USED WITH T75589 355MM (14") SHOE)
61	T75593	36	OPEN CENTER 1 BAR SHOE	355MM (14") (CAN NOT BE USED WITH T112408 355MM (14") SHOES)
61	T112408	36	OPEN CENTER 1 BAR SHOE	355MM (14") (CAN NOT BE USED WITH T75593 355MM (14") SHOES)
61	T75590	36	OPEN CENTER 1 BAR SHOE	(838MM (33")
63	T66947	36	OPEN CENTER 3 BAR SHOE	305MM (12")
63	T66948	36	OPEN CENTER 3 BAR SHOE	355MM (14")
77	-	36	Part 28	254MM (10") AT13110 NO LONGER AVAILABLE, ORDER DIRECT FROM SUPERIOR TIRE AND RUBBER - WARREN PA. 15365 (PHONE 800-289-1456)
45A	-	1	Part 20	(NO LONGER AVAILABLE) (SUB FOR AT56693) (ORDER (12) T112132, (3) T112149, (3) T19563, (36) T19562, (35) T19563 AND T54529)
