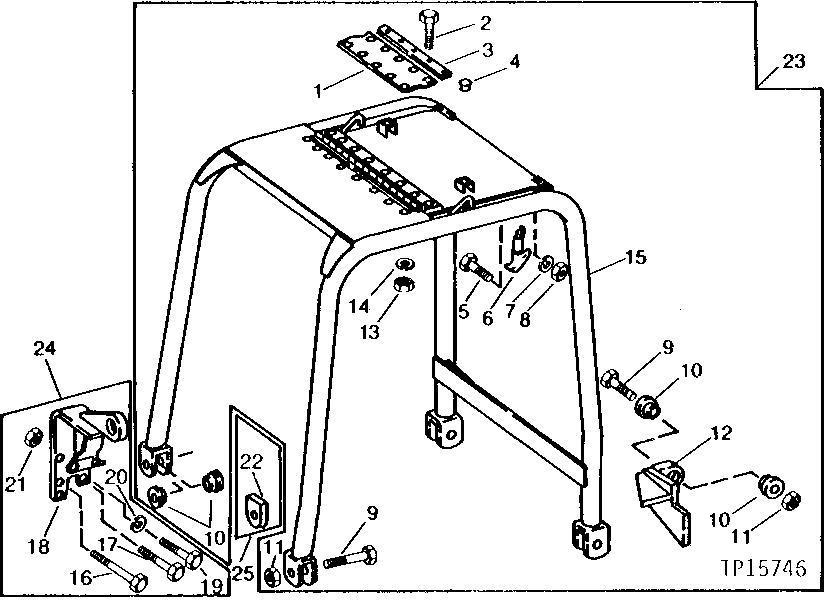

PROTECTIVE CANOPY (USE WITH BACKHOE) [01J22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T44251	1	ISOLATOR	-
2	03H1540	16	Bolt	5/16" X 3/4"
3	T44250	2	STRAP	-
4	H35062	2	PLUG	-
5	19H1895	2	CAP SCREW	1/2" X 3/4"
6	T44252	2	LATCH	ROOF
7	12H301	2	Lock Washer	1/2"
8	14H1040	2	Nut	1/2"
9	19H3314	4	Screw	1" X 5-1/4"
10	AT43155	8	ISOLATOR	-
11	T44249	4	LOCK NUT	-
12	AT45757	1	BRACKET	RIGHT REAR
12	AT45758	1	BRACKET	LEFT REAR
12	T43443	2	SUPPORT	(COMPONENT OF BRACKET)
13	14H785	16	Nut	5/16"
14	12H303	16	Lock Washer	5/16"
15	-	1	Part 17	(AT44875 NO LONGER AVAILABLE FURNISH COMPONENT PARTS AND AT86875)
16	08H4446	1	CAP SCREW	7/8" X 6-3/4"
17	19H2011	1	CAP SCREW	7/8" X 3"
18	AT104998	1	SUPPORT	RIGHT FRONT, (SUB FOR AT44868)
18	AT104999	1	SUPPORT	LEFT FRONT, (SUB FOR AT44869)
18	T43868	2	SUPPORT	(RIGHT AND LEFT) (COMPONENT OF SUPPORT)
19	19H3265	4	Cap Screw	HS, SAE 8, 1/2" X 1-7/8"
20	12H301	4	Lock Washer	1/2"
21	14H1040	4	Nut	1/2", (SUB FOR 14H809)
22	T46152	2	SUPPORT	-
23	-	1	Part 27	(AT44875 NO LONGER AVAILABLE FURNISH COMPONENT PARTS AND AT86875) (FOR 350D ALSO ORDER COMPONENTS OF AT53557 WHICH IS NO LONGER AVAILABLE)
24	-	1	Part 29	( AT53557 NO LONGER AVAILABLE)
25	-	1	Part 30	(AT53558 NO LONGER AVAILABLE)
-	T21387	2	BUMPER	(IN REAR ROOF SUPPORT)

PROTECTIVE CANOPY (USE WITH BACKHOE) [01J22]
