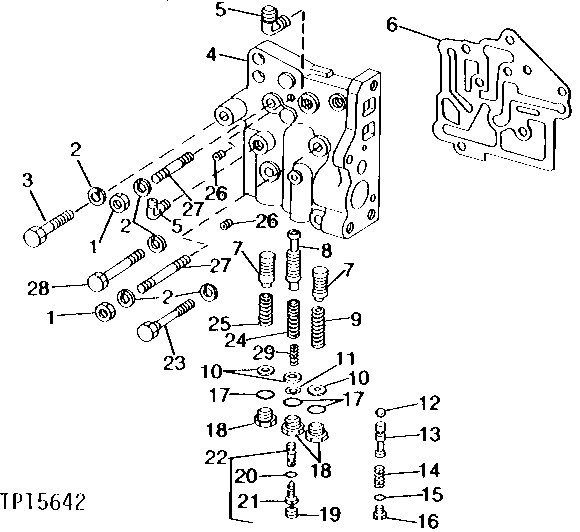

HYDRAULIC REVERSER RELIEF VALVE HOUSING [01C22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1040	2	Nut	1/2", (SUB FOR 14H809)
2	12H301	6	Lock Washer	1/2"
3	19H1805	2	CAP SCREW	1/2" X 2-1/4"
3	19H1781	2	CAP SCREW	1/2" X 3-1/2"
4	T48994	1	HOUSING	(MARKED T43451)
5	T20886	2	ELBOW FITTING	-
6	T23859	1	GASKET	IF AVAILABLE
6	T84541	1	GASKET	(SUB FOR T23859)
7	T13950	2	PISTON	-
8	T23924	1	PRESSURE RELIEF VALVE	-
9	T13949	1	SPRING	-
10	T15858	1	WASHER	1.52 MM (.060")
11	M3048T	1	Shim	(SUB FOR T14587, THIS APPLICATION) 0.61 MM (.024")
12	T13624	1	Ball	BYPASS VALVE
13	T23852	1	FLOW CONTROL HYD. VALVE	BYPASS
14	T23853	1	Spring	-
15	R26286	1	O-Ring	-
16	R27094	1	Drain Plug	-
17	T13213	3	WASHER	-
18	T73313	3	FITTING	-
19	15H275	1	Pipe Plug	1/4", HEX. CTSK.
20	R10093	1	O-Ring	-
21	R34028	1	Bolt	REGULATING
22	-	1	Part 24	(WHEN AR47611 IS NO LONGER AVAILABLE SUB R45573, R10093 AND R34028)
22	R45573	1	ORIFICE	(DOES NOT INCLUDE BOLT AND O-RING)
23	19H3550	1	Cap Screw	1/2" X 4", (SUB FOR M3231T)
24	T20877	1	SPRING	-
25	T13948	1	SPRING	-
26	15H558	2	Pipe Plug	1/8", HEX. CTSK.
27	T13923	2	STUD	-
28	19H1820	1	Cap Screw	1/2" X 3"
29	T60862	1	SPRING	-

HYDRAULIC REVERSER RELIEF VALVE HOUSING [01C22]
