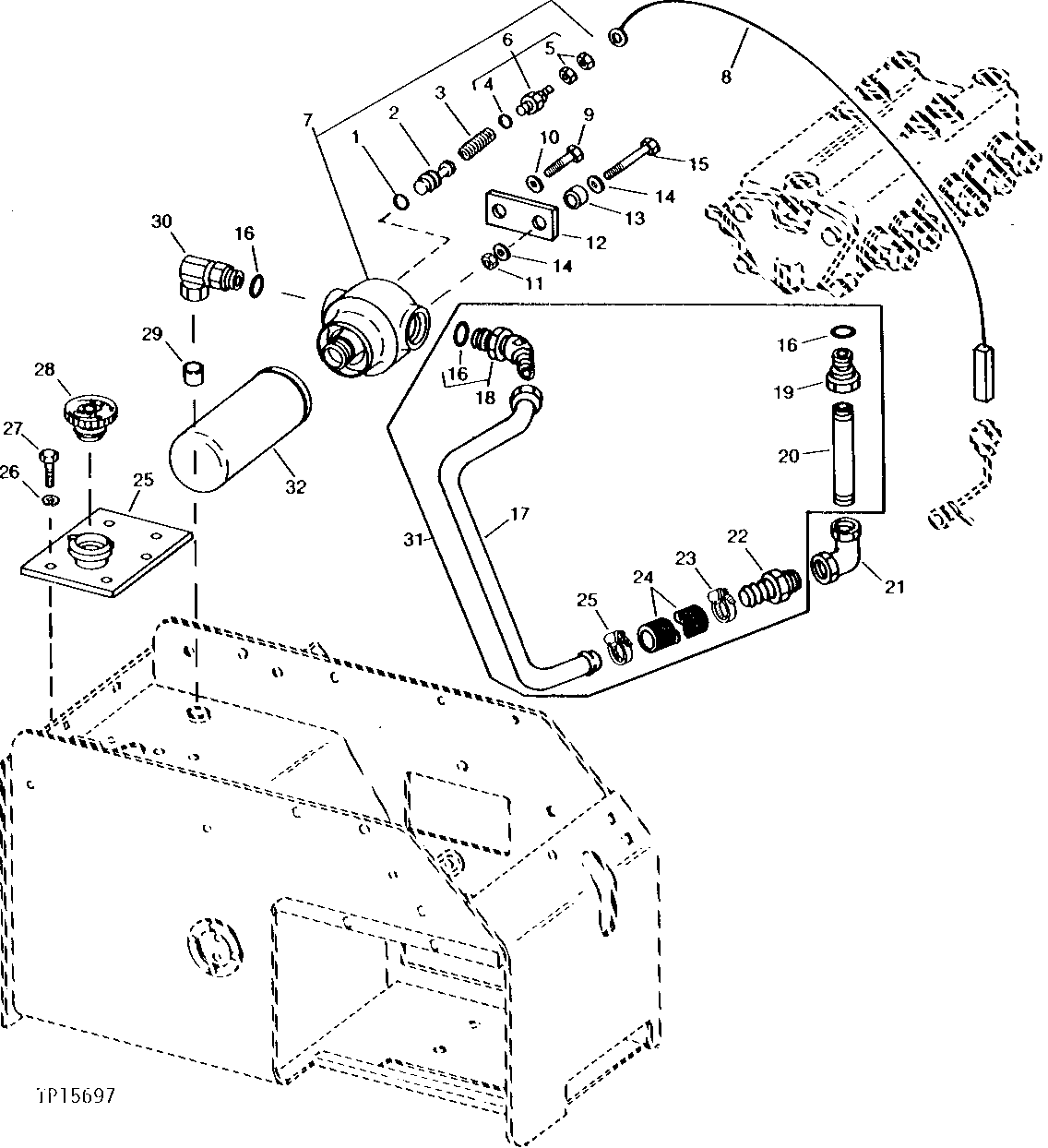

HYDRAULIC RETURN FILTER AND LINES (USE WITH LOADER) [02B10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	P46051	1	O-Ring	-
2	T71326	1	PISTON	-
3	T158876	1	COMPRESSION SPRING	(SUB FOR T73705)
4	R26375	1	O-Ring	-
5	14H778	2	Nut	0.190"
6	AT60644	1	Sender	-
7	AT70977	1	BASE	-
8	AT63422	1	WIRING LEAD	-
9	19H2127	1	Cap Screw	5/16" X 7/8"
10	24H1136	1	Washer	11/32" X 11/16" X 0.065"
11	14H1076	1	Nut	3/8"
12	AT22862	1	BRACKET	-
13	M40463	1	Washer	-
14	24H1305	2	Washer	13/32" X 13/16" X 0.065"
15	19H3483	1	Cap Screw	3/8" X 1-1/8"
16	R29936	3	O-Ring	-
17	AT73389	1	OIL LINE	-
18	AU43288	1	ELBOW FITTING	45°
19	AE35246	1	ADAPTER	-
20	T75432	1	THREADED NIPPLE	-
21	-	1	Part 21	1 X 90° ( 15H100 - NO LONGER AVAILABLE)
22	N150084	1	HOSE FITTING	HOSE
23	AR21839	2	Clamp	-
24	-	1	Part 24	(MAKE FROM U11186 BULK MATERIAL, CUT TO LENGTH)
25	AT63423	1	PLATE	-
26	12H304	6	Lock Washer	3/8"
27	19H2284	6	Cap Screw	3/8" X 7/8"
28	AT84988	1	FILLER CAP	(SUB FOR AU14021)
29	T71051	1	TUBE	-
30	AU42452	1	ADAPTER FITTING	90°
31	AT73390	1	MOUNTING PARTS	(AT73390 NO LONGER AVAILABLE)
32	AT120444	1	Oil Filter	(SUB FOR AT69852 AND AT120444)

HYDRAULIC RETURN FILTER AND LINES (USE WITH LOADER) [02B10]
