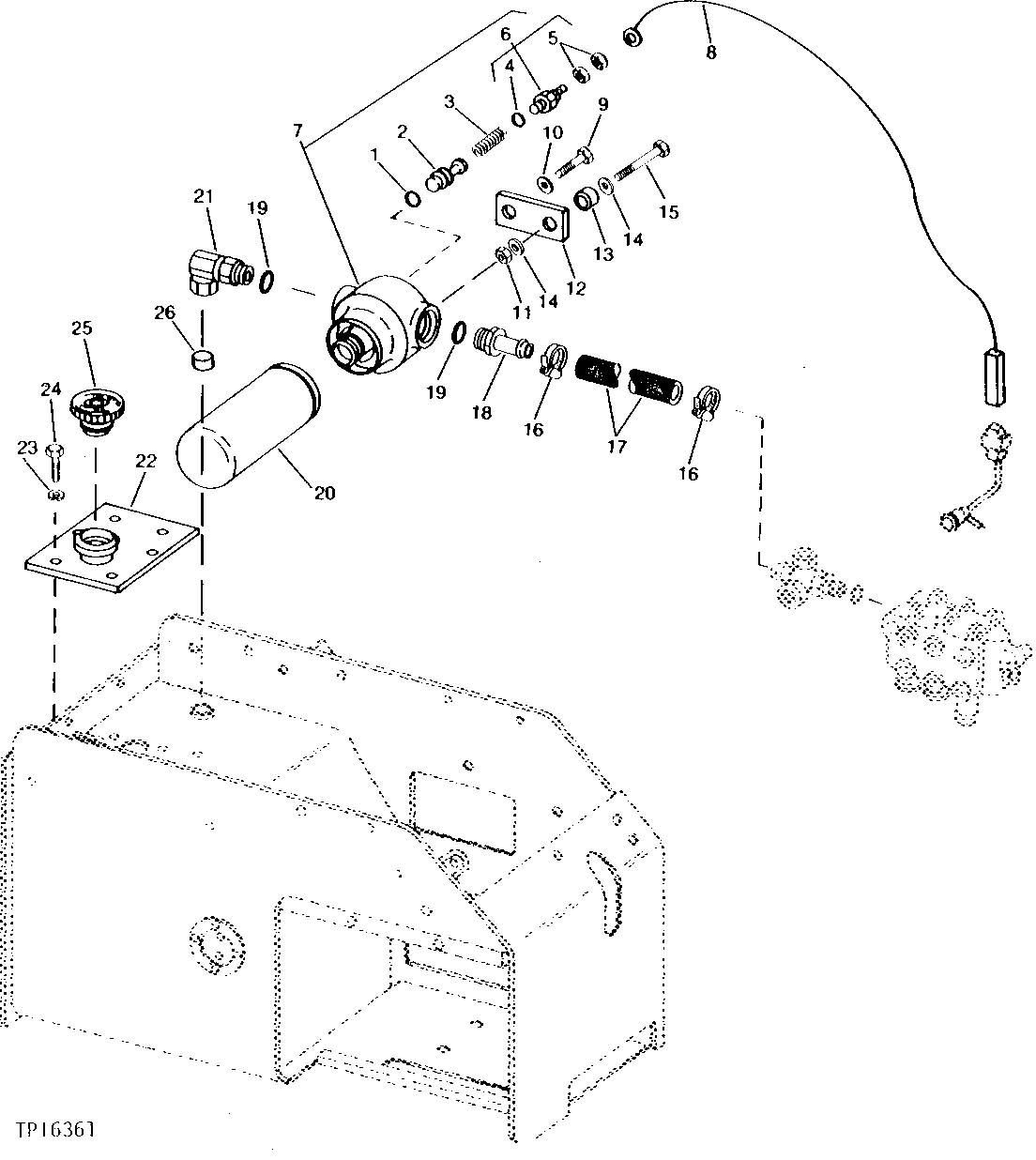

HYDRAULIC RETURN FILTER AND LINES (USE WITH BULLDOZER) [02B08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	P46051	1	O-Ring	-
2	T71326	1	PISTON	-
3	T158876	1	COMPRESSION SPRING	(SUB FOR T73705)
4	R26375	1	O-Ring	-
5	14H778	2	Nut	0.190"
6	AT60644	1	Sender	-
7	AT70977	1	BASE	-
8	AT63422	1	WIRING LEAD	-
9	19H2127	1	Cap Screw	5/16" X 7/8"
10	24H1136	1	Washer	11/32" X 11/16" X 0.065"
11	14H1076	1	Nut	3/8"
12	AT22862	1	BRACKET	EXTENSION
13	M40463	1	Washer	-
14	24H1305	2	Washer	13/32" X 13/16" X 0.065"
15	19H3483	1	Cap Screw	3/8" X 1-1/8"
16	AR21839	2	Clamp	-
17	T75672	1	HYDRAULIC HOSE - FABRICATE	(USE WITH 3 SPOOL VALVE WITHOUT REAR HYDRAULICS OR 2 SPOOL VALVE WITH REAR HYDRAULICS)
17	T75691	1	HYDRAULIC HOSE - FABRICATE	(USE WITH 3 SPOOL VALVE WITH REAR HYDRAULICS)
17	-	1	Part 19	(MAKE FROM T61939 BULK MATERIAL, CUT TO LENGTH) (USED WITH 2 SPOOL VALVE WITHOUT REAR HYDRAULICS)
18	T29747	1	Hose Fitting	-
19	R29936	3	O-Ring	-
20	AT120444	1	Oil Filter	(SUB FOR AT69852 AND AT113114)
21	AU42452	1	ADAPTER FITTING	UNION, 90°
22	AT63423	1	PLATE	FILLER
23	12H304	6	Lock Washer	3/8"
24	19H2676	6	Cap Screw	3/8" X 1"
25	AT84988	1	FILLER CAP	(SUB FOR AU14021)
26	R71787	1	Fitting	(SUB FOR T71051, THIS APPLICATION)

HYDRAULIC RETURN FILTER AND LINES (USE WITH BULLDOZER) [02B08]
