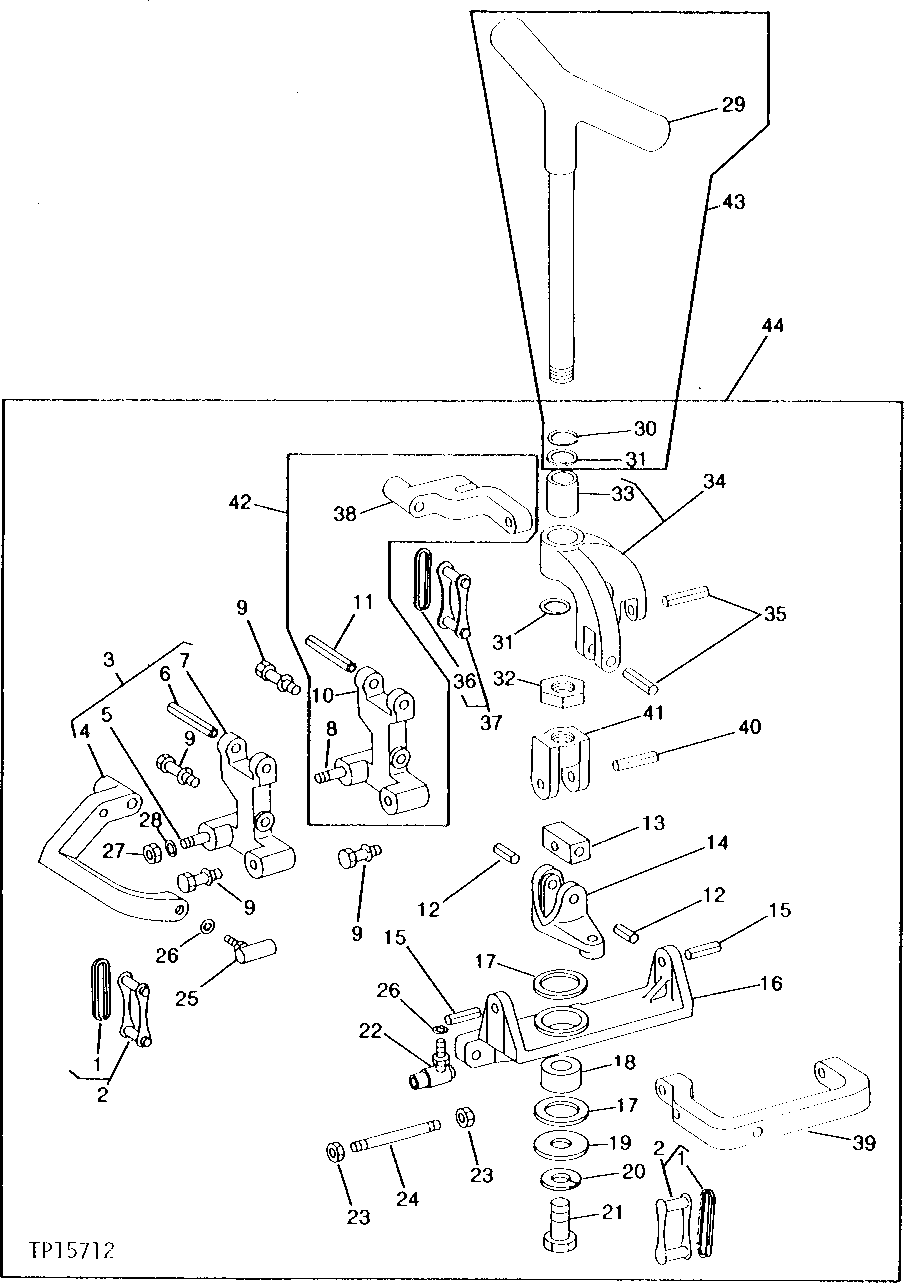

DOZER CONTROL VALVE LEVER AND LINKAGE (6305 BULLDOZER) [02D20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U13412	1	CLIP	-
2	U13414	2	CHAIN LINK	38.0 MM (1-1/2") PITCH, NO. 2060 CHAIN
3	AT64918	1	CONTROL	VALVE ATTACHING STANDARD AND REAR SPOOL LEVER
4	-	1	Part 4	REAR, SPOOL ( T68067 USE IF AVAILABLE)
5	U12854	1	STUD	-
6	34H333	1	Spring Pin	5/16" X 1-7/8"
7	-	1	Part 7	ATTACHING STANDARD ( T68066 USE IF AVAILABLE)
8	U12854	1	STUD	-
9	19H2571	4	Cap Screw	1/4" X 1-3/8"
9	12H302	4	Lock Washer	1/4"
10	-	1	Part 11	( T68066 USE IF AVAILABLE)
11	34H333	1	Spring Pin	5/16" X 1-7/8"
12	34H339	2	Spring Pin	5/16" X 3/4"
13	T68070	1	BAR	-
14	T68071	1	PIVOT	ROTARY
15	34H171	2	Spring Pin	3/8" X 1"
16	T68064	1	BASE	ROTARY PIVOT
17	U12861	2	WASHER	-
18	U12856	1	BUSHING	-
19	24H1204	1	WASHER	9/16" X 1-15/32" X 0.075"
20	12H292	1	Lock Washer	1/2"
21	19H3385	1	Cap Screw	1/2" X 1-1/8"
22	AU11709	1	Ball Joint	SPRING LOADED
23	14H649	2	Nut	1/4"
24	U12860	1	STUD	-
25	AN207028	1	Ball Joint	(SUB FOR T23688)
26	12H297	2	Lock Washer	1/4", INTERNAL-TOOTH
27	14H786	2	Nut	1/4"
28	12H302	2	Lock Washer	1/4"
29	-	1	Part 30	(SUB AT28083)
29	H34597	2	Plug	BUTTON
30	B387R	1	SNAP RING	-
31	T497T	2	WASHER	-
32	14H821	1	Nut	5/8"
33	U12857	1	BUSHING	-
34	AT64921	1	HANDLE	SLIDE
35	34H349	2	Spring Pin	3/8" X 1-1/4"
36	P24350	1	Clip	-
37	B5235H	1	Chain Link	19.0 MM (3/4") PITCH, NO. 60 CHAIN
38	-	1	Part 40	(SUB AT64919) (SUB FOR T68068)
39	T68065	1	LEVER	CENTER SPOOL
40	34H329	1	Spring Pin	5/16" X 1-1/4"
41	T68069	1	YOKE	HANDLE
42	AT64919	1	FLOW CONTROL HYD. VALVE	LINKAGE
43	AT28083	1	HANDLE	-
44	AT64924	1	KIT	LINKAGE

DOZER CONTROL VALVE LEVER AND LINKAGE (6305 BULLDOZER) [02D20]
