CROSSBAR ASSEMBLY (STANDARD TRACK) [01A21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

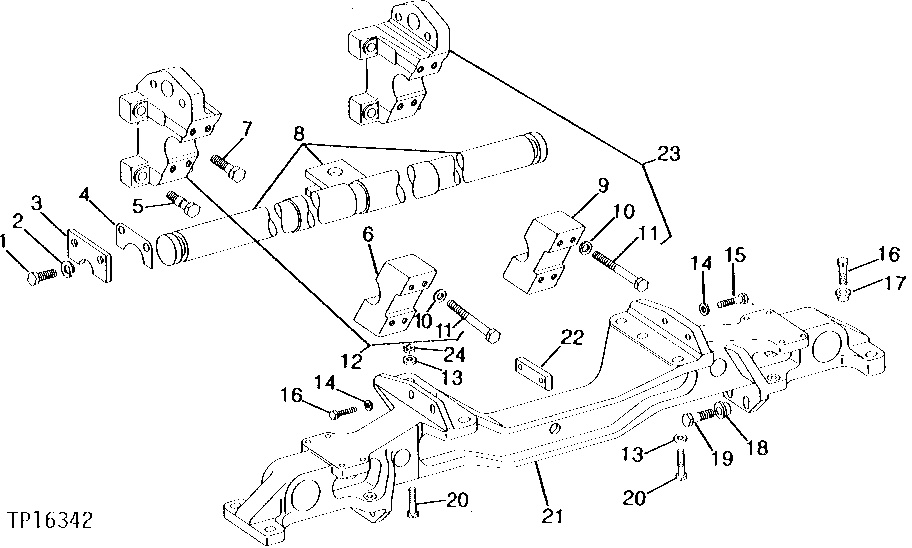

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2717	4	Cap Screw	3/4" X 1-3/4"
2	12H236	4	Lock Washer	3/4"
3	T21248	2	RETAINER	REAR BAR
4	T20751	1	SHIM	1.5 MM (.060")
5	T10042	4	SCREW	OUTER LOWER AND INNER UPPER
6	-	1	Part 6	(SUB AT35459)
7	19H2728	4	Cap Screw	HS, SAE 8, 3/4" X 3" OUTER UPPER AND INNER LOWER
8	AT45070	1	CROSSBAR	REAR
9	-	1	Part 9	(SUB AT35460)
10	T497T	8	WASHER	-
11	19H2718	8	Cap Screw	5/8" X 4-3/4"
12	AT35459	1	BRACKET	R.H. REAR BAR, (MARKED T36505)
13	T83426	8	Washer	(SUB FOR T17776, THIS APPLICATION)
14	24M7241	4	Washer	17 X 34 X 4 MM, (SUB FOR T40728)
15	19H2706	2	Cap Screw	HS, SAE 8, 5/8" X 2"
16	19H2710	10	Cap Screw	HS, SAE 8, 5/8" X 1-3/4"
17	T26160	8	BUSHING	FLANGED
18	T26161	4	BUSHING	FLANGED
19	19H2431	4	CAP SCREW	HS, SAE 8, 3/4" X 2-1/4"
20	19H2411	6	Cap Screw	3/4" X 2-1/2"
21	T34401	1	CROSSBAR	FRONT
21	19H2706	8	Cap Screw	5/8" X 2", (2 TO FRONT CROSSBAR TO LEFT SIDE FRAME TO CLUTCH HOUSING, 6 TO RIGHT AND LEFT SIDE FRAMES TO STEERING CLUTCH HOUSING
22	T34402	1	BAR	TAPPING
23	AT35460	1	BRACKET	L.H. REAR BAR, (MARKED T36505)
24	14H1058	2	Nut	(SUB FOR E54521)
