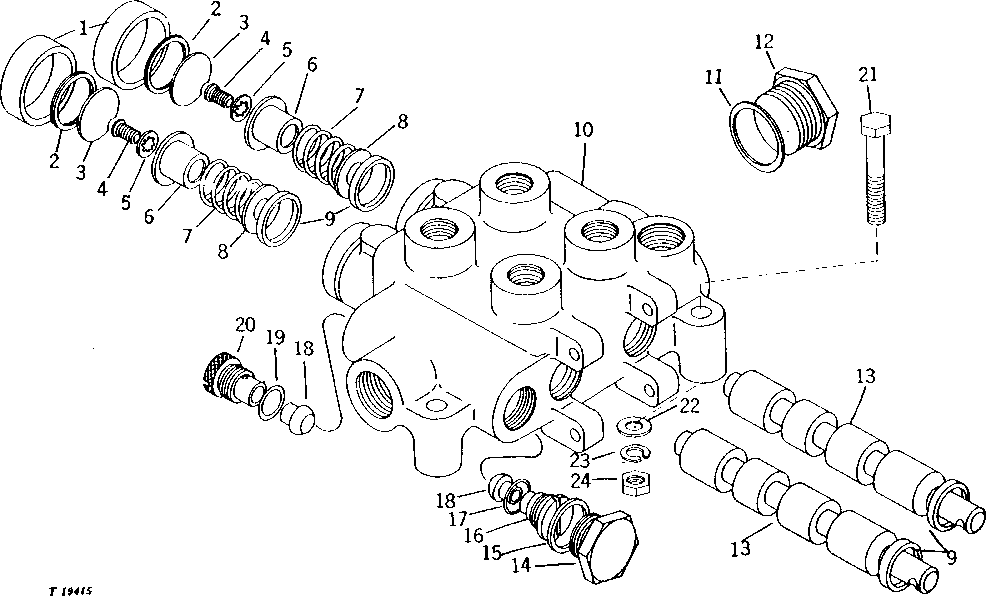

TWO SPOOL AUXILIARY VALVE (6305 BULLDOZER) [02K14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T10639	2	CAP	-
2	H35226	2	Snap Ring	(SUB FOR U11027)
3	T10632	2	CAP	STOP
4	21H1310	2	SCREW	1/4" X 1/2"
5	T10662	2	WASHER	-
6	W19896	2	LOCKING COLLAR	(SUB FOR T10631)
7	T10633	2	Spring	-
8	T10642	2	WASHER	-
9	T28004	4	O-Ring	QUAD
10	-	1	Part 10	VALVE, (SUB AU14057)
11	W16399	1	WASHER	-
12	T30693	1	FITTING PLUG	(ALSO ORDER W16399 GASKET)
13	-	2	Part 13	(SUB AU14057)
14	U30256	1	PLUG	-
15	AT161281	1	SEAL	(SUB FOR T10654)
16	U11574	1	PLUG	(SUB FOR W11894)
17	R26375	1	O-Ring	(SUB FOR T12047)
18	U13616	2	Pressure Relief Valve	(A)
19	32246	1	O-Ring	(A) (SUB FOR T12048)
20	U13613	1	PLUG	(A)
21	19H3031	2	Cap Screw	3/8" X 2-1/2"
21	19H2732	2	Cap Screw	3/8" X 2-3/4"
22	24H1305	3	Washer	13/32" X 13/16" X 0.065"
23	12H304	3	Lock Washer	3/8"
24	14H812	3	NUT	3/8"
..	AU14057	1	VALVE	ASSEMBLY, COMPLETE
..	-	1	Part 27	( AT63409 - NO LONGER AVAILABLE) (CONTAINS CONTROL VALVE, HOSES, SEAL, CLAMPS, FITTINGS, COUPLER LINK, CONTROL HANDLE, POWER BEYOND SLEEVE AND MISCELLANEOUS HARDWARE)
..	AT55838	1	KIT	CHECK PLUG
