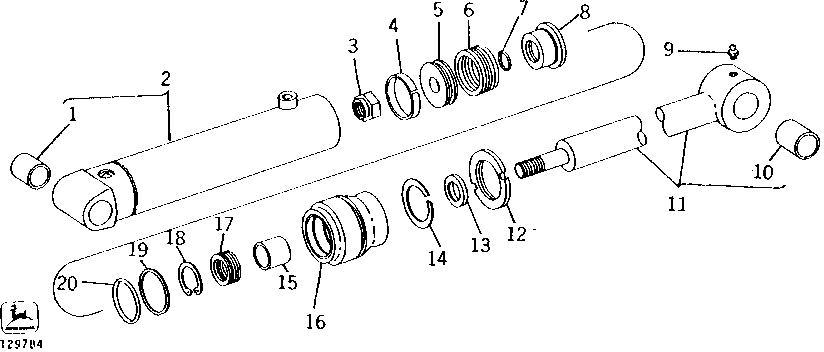

THREE-POINT HITCH CYLINDER ASSEMBLY [01I16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U10482	2	BUSHING	-
2	AT21660	1	HYDRAULIC CYLINDER BARREL	-
3	P45231	1	LOCK NUT	-
4	U17335	1	WEAR RING	(A)
5	U17340	1	PISTON	-
6	T54815	1	PACKING	(A) (SUB FOR U12965, THIS APPLICATION) (SUB FOR R72821)
7	R495R	1	O-Ring	(A)
8	U17339	1	PISTON	-
9	JD7759	1	Lubrication Fitting	-
10	U10052	1	BUSHING	-
11	AU13829	1	HYDRAULIC CYLINDER ROD	-
12	U10290	1	NUT	-
13	L1937C	1	SEAL	(A)
14	U10297	1	SNAP RING	-
15	U41824	1	WEAR RING	(A)
16	U42638	1	HYDR. CYLINDER ROD GUIDE	(ALSO ORDER U41824)
17	R76808	1	PACKING	(A) (SUB FOR U44947 AND T37124)
18	N107859	1	Snap Ring	(SUB FOR J17817)
19	R81194	1	BACK-UP RING	(A) (SUB FOR U13461, THIS APPLICATION)
20	F1870R	1	O-Ring	(A)
..	AU43102	1	HYDRAULIC CYLINDER	(COMPONENT EXCHANGE PROGRAM PART)
..	AR105453	1	HYDRAULIC CYLINDER KIT	(SUB FOR AT35935 AND AR96499)
..	-	1	Part 23	THREE-POINT ( AT51953 - NO LONGER AVAILABLE) (NOT ALL PARTS ARE INCLUDED ON THIS PAGE - SEE NUMERIC INDEX FOR AT51953)

THREE-POINT HITCH CYLINDER ASSEMBLY [01I16]
