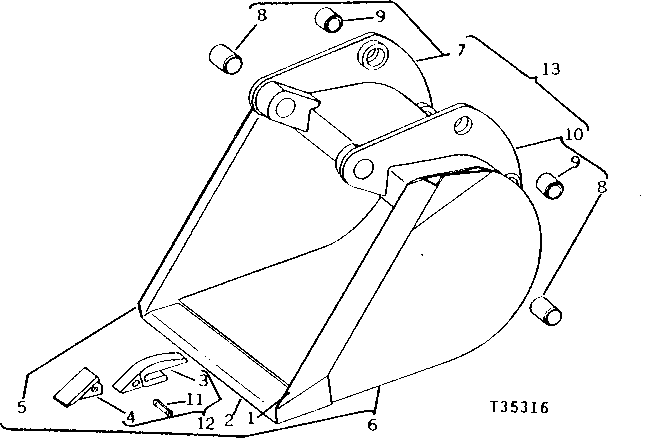

STANDARD BUCKETS (WITH CURVED PIVOT PLATES) (9300 BACKHOE) [03C15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T38870	1	CUTTING EDGE	R.H. (USE WITH AT37725) 12.7 MM X 127.0 MM X 762.0 MM (30"), FOR 914 MM (36") BUCKET
1	T38857	1	CUTTING EDGE	R.H. (USE WITH AT37722, AT37723 AND AT37724) 12.7 MM X 127.0 MM X 876.3 MM (18", 24" AND 30") FOR 457 MM, 609 MM AND 762 MM (18", 24" AND 30") BUCKETS
2	T38856	1	CUTTING EDGE	(USE WITH AT37722) 22.2 MM X 152.5 MM X 425.5 MM (18"), FOR 457 MM (18") BUCKET
2	T38862	1	CUTTING EDGE	(USE WITH AT37723) 22.2 MM X 152.5 MM X 425.5 MM (24"), FOR 457 MM (18") BUCKET
2	T38865	1	CUTTING EDGE	(USE WITH AT37724) 22.2 MM X 151.5 MM X 730.3 MM (30"), FOR 762 MM (30") BUCKET
2	T38869	1	CUTTING EDGE	(USE WITH AT37725) 22.2 MM X 152.5 MM X 425.5 MM (36"), FOR 457 MM BUCKET
3	U43792	1	Bucket Tooth Adapter	(SUB FOR (AR) U42750) 23.9 MM (15/16") (4 USED WITH AT37722 AND AT37723, 5 USED WITH AT37724, 6 USED WITH AT37725)
4	U42751	1	POINT	(4 USED WITH 457 MM AND 609 MM (18" AND 24") BUCKETS, 5 USED WITH 762 MM (30") BUCKETS, 6 USED WITH 914 MM (36") BUCKETS) (4 USED WITH AT37722 AND AT37723, 5 USED WITH AT37724, 6 USED WITH AT37725)
4	T56524	1	POINT	STARPOINT (4 USED WITH 457 MM AND 609 MM (18" AND 24") BUCKETS, 5 USED WITH 762 MM (30") BUCKETS, 6 USED WITH 914 MM (36") BUCKETS) (4 USED WITH AT37722 AND AT37723, 5 USED WITH AT37724, 6 USED WITH AT37725)
4	T230SP	1	Tooth	FORGED (4 USED WITH 457 MM AND 609 MM (18" AND 24") BUCKETS, 5 USED WITH 762 MM (30") BUCKETS, 6 USED WITH 914 MM (36") BUCKETS) (4 USED WITH AT37722 AND AT37723, 5 USED WITH AT37724, 6 USED WITH AT37725) (SUB FOR T54317)
5	T38871	1	CUTTING EDGE	(USE WITH AT37725) L.H. 12.7 MM X 127.0 MM X 762.0 MM (1/2" X 5" X 30"), FOR 914 MM (36") BUCKET
5	T38858	1	CUTTING EDGE	(USE WITH AT37722, AT37723 AND AT37724) L.H. 12.7 MM X 127.0 MM X 876.3 MM (1/2" X 5" X 34-1/2"), FOR 457 MM, 609 MM AND 762 MM (18", 24" AND 30") BUCKETS)
6	-	1	Part 13	457 MM (18") ( AT37722, USE IF AVAILABLE) (SUB AT114260)
6	-	1	Part 14	609 MM (24") ( AT37723, USE IF AVAILABLE) (SUB AT114257)
6	-	1	Part 15	762 MM (30") ( AT37724, USE IF AVAILABLE) (SUB AT114262)
6	-	1	Part 16	914 MM (36") ( AT37725, USE IF AVAILABLE) (SUB AT114256)
7	-	1	Part 17	L.H. (SUB AT36086)
8	T105987	2	BUSHING	(SUB FOR U42736)
9	T105988	4	Bushing	(SUB FOR U42739)
10	-	1	Part 20	R.H. (SUB AT36086)
11	T40910	1	PIN	(SUB FOR U13927) (4 USED WITH 457 MM AND 609 MM, 5 USED WITH 762 MM, AND 6 USED WITH 914 MM BUCKETS)
12	-	1	Part 22	23.9 MM (15/16") (4 USED WITH AT37722 AND AT37723, 5 USED WITH AT37724, 6 USED WITH AT37725) ( AU41838 - NO LONGER AVAILABLE) (SUB T40910, U43792, AND U42751)
13	AT36086	1	PLATE	BACK
