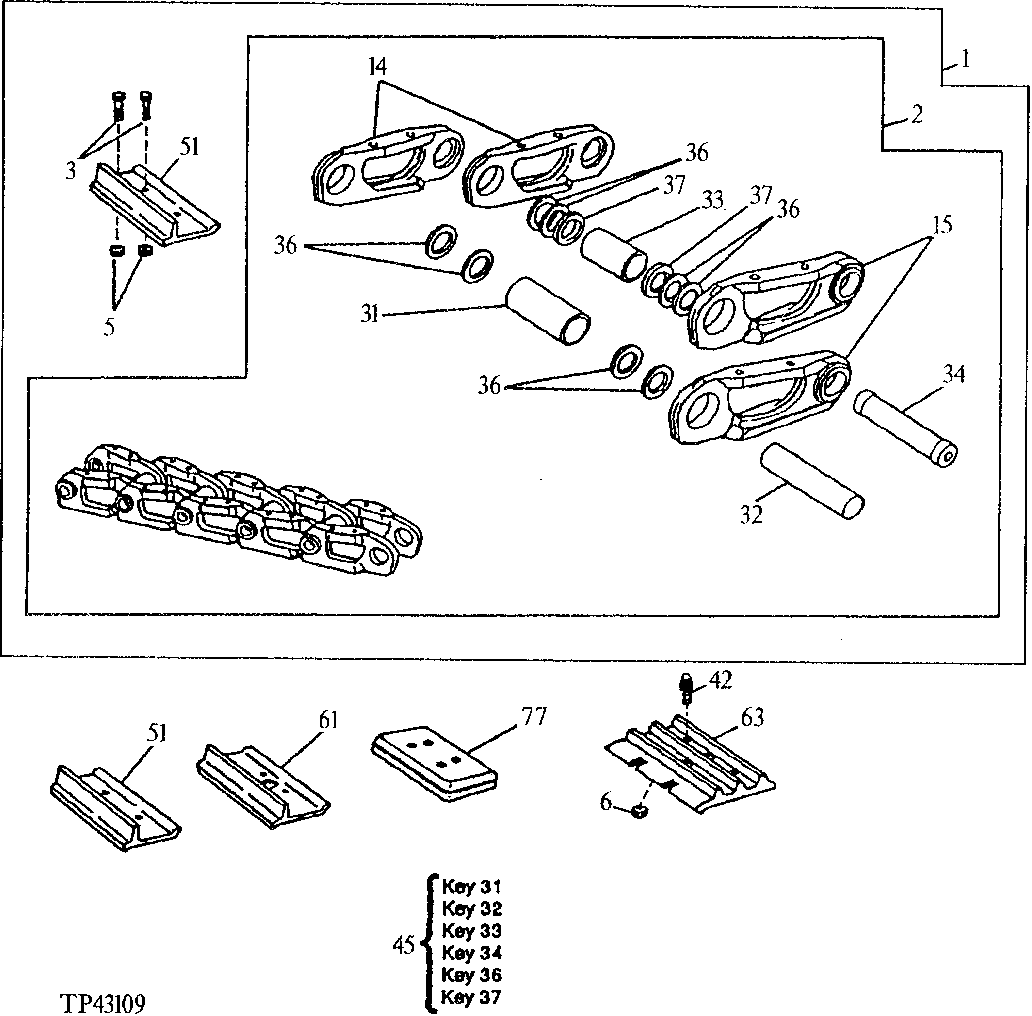

SEALED TRACK CHAIN, WITH NON-STRUTTED LINKS (36L) (SERIAL NO. 261195- ) [01B19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT120429	2	TRACK ASSEMBLY WITH SHOES	355MM (14") OPEN CENTER,TWO BAR (36L) (SUB FOR AT120428 AND AT148531)
1	AT113056	2	TRACK ASSEMBLY WITH SHOES	305MM (12") OPEN CENTER,THREE BAR (36L) (SUB FOR AT113454 AND AT148529)
1	AT120431	2	TRACK ASSEMBLY WITH SHOES	355MM (14") CLOSED CENTER,SINGLE BAR (36L) (SUB FOR AT120430 AND AT148532)
2	AT112966	1	TRACK CHAIN W/O SHOES	(36L) (SUB FOR AT113023 AND AT148528)
3	T40535	144	BOLT	(USE IF AVAILABLE) (USE WITH T14913 NUT) (SUB T130032 AND T129173)
3	T130032	144	BOLT	(USE WITH T129173 NUT) (SUB FOR T40535)
5	T14913	144	NUT	(USE IF AVAILABLE) (USE WITH T40535 BOLT) (SUB T129173 AND T130032)
5	T129173	144	NUT	(USE WITH T130032 BOLT) (SUB FOR T14913)
6	B30434	72	Lock Nut	(FOR SNOW STUD)
14	T112147	36	NON-STRUTTED LINK-LH	(SUB FOR T19000)
15	T112148	36	NON-STRUTTED LINK-RH	(SUB FOR T19001)
31	T19562	36	BUSHING	-
31	T112149	35	BUSHING	(USE WITH T112147 AND T112148 LINKS)
32	T19563	35	TRACK PIN	-
33	T19562	1	BUSHING	MASTER (USE WITH T112147 AND T112148 LINKS)
34	T54529	1	MASTER TRACK PIN	-
34	T61367	1	MASTER TRACK PIN	(OVERSIZED)
36	T112132	144	SPRING WASHER	(USE WITH T112147 AND T112148 LINKS)
37	T112150	2	WASHER	(USE WITH T112147 AND T112148 LINKS)
42	M3950T	72	STUD	SNOW
45	AT113024	1	PIN & BUSHING KIT	(INCLUDES (144) T112132, (36) T112149, (2) T112150, T19562, (36) T19563 AND T54529)
51	T14621	36	SINGLE BAR SHOE	305MM (12") (SUB FOR T14622)
51	T75589	36	SINGLE BAR SHOE	355MM (14") (SUB FOR T14615)
61	T75593	36	OPEN CENTER 1 BAR SHOE	355MM (14") (SUB FOR T17086)
61	T75590	36	OPEN CENTER 1 BAR SHOE	838MM (33") (SUB FOR T75275)
63	T66947	36	OPEN CENTER 3 BAR SHOE	305MM (12") (SUB FOR T14235)
63	T66948	36	OPEN CENTER 3 BAR SHOE	355MM (14") (SUB FOR T24698)
77	-	36	Part 28	254MM (10") AT13110 NO LONGER AVAILABLE, ORDER DIRECT FROM SUPERIOR TIRE AND RUBBER, WARREN PA. 15365 (PHONE 800-289-1456)
