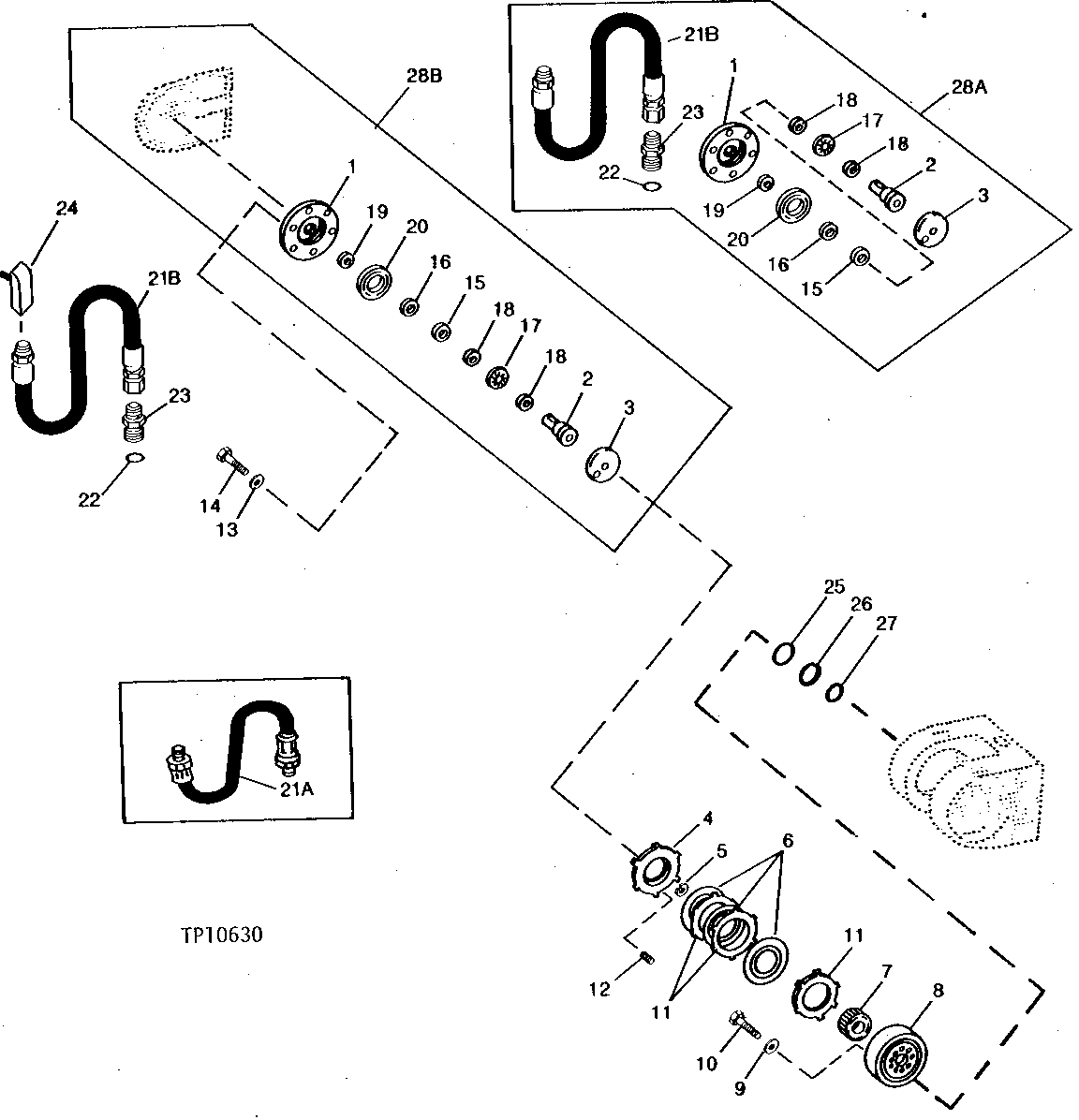

REPLACEMENT NO. 3315 POWER WINCH BRAKE AND CLUTCH DISK ASSEMBLY [02H01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	( T75406 USE IF AVAILABLE)
2	T81292	1	SPOOL	(SUB FOR T75405)
3	T75404	1	PISTON	-
4	T53242	1	CLUTCH PLATE	CLUTCH PRESSURE
5	T19810	1	SNAP RING	-
6	AT16844	3	DISK	(USE IF AVAILABLE) (SUB FOR AT114483)
6	AT142063	3	CLUTCH DISK	(SUB FOR AT16844)
7	T59150	1	HUB	-
8	T118795	1	BRAKE DRUM	(SUB FOR T65349)
9	T33177	6	WASHER	-
10	19H2469	6	Cap Screw	1/2" X 2-1/4"
11	T19615	3	DISK	-
12	U15753	6	SPRING	-
13	12H301	6	Lock Washer	1/2"
14	19H2473	6	Cap Screw	1/2" X 1-3/4"
15	T75467	1	O-Ring	-
16	H60815	1	Back-Up Ring	-
17	JD8841	1	THRUST BEARING	-
18	JD10245	2	THRUST BEARING RACE	-
19	T50979	1	SEAL	-
20	AT114103	1	SEAL	(SUB FOR AT73356)
22	R26448	1	O-Ring	-
23	R27212	1	Fitting	-
24	T12293	1	FITTING	-
25	T72840	1	WASHER	-
26	U11021	1	BACK-UP RING	-
27	T19803	1	SEAL	-
21A	AT75012	1	HYDRAULIC HOSE	355 MM LONG (1/4" X 9/16" X 14") (SUB AT76095, R26448 AND R27212)
21B	AT76095	1	HYDRAULIC HOSE - FABRICATE	346 MM LONG (1/4" X 9/16" X 13.6")
28A	AT75013	1	COVER	(SUB AT114208, THIS APPLICATION)
28B	AT114208	1	COVER	(SUB FOR AT77271) (ALSO ORDER T53242, AT76095, R26448 AND R27212, THIS APPLICATION)
28B	AT114208	1	COVER	(SUB FOR AT77271) (ALSO ORDER AT76095, R26448 AND R27212, THIS APPLICATION)
28B	AT114208	1	COVER	(SUB FOR AT77271) (ALSO ORDER AT76095, R26448 AND R27212, THIS APPLICATION)
28B	AT114208	1	COVER	(SUB FOR AT77271)
