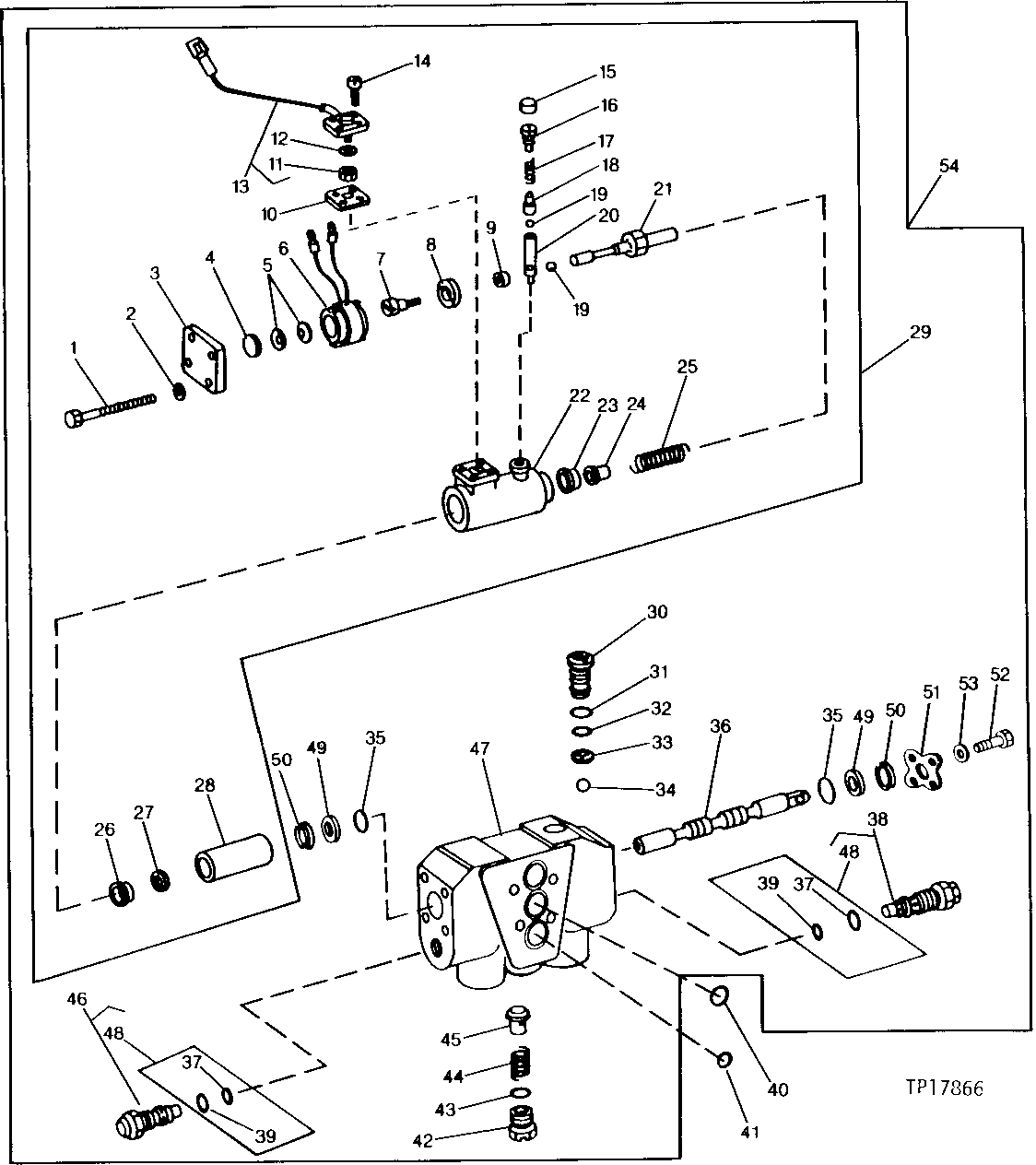

REPLACEMENT LOADER CONTROL VALVE BUCKET SECTION (WITH EXTERNAL SEALS) (SERIAL NO. 719062- ) [02I15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2340	4	CAP SCREW	1/4" X 5-1/2"
2	24H1286	4	Washer	9/32" X 1/2" X 1/16"
3	T61154	1	COVER	-
4	T61153	1	CAP	CAP
5	T61152	2	WASHER	-
6	AT168950	1	MAGNET	(SUB FOR AT58741) ELECTRO
7	T61150	1	SCREW	SHOULDER
8	T151328	1	ARMATURE	(SUB FOR T61148) ELECTRO-MAGNETIC
9	T61149	1	WASHER	ALIGNMENT
10	T61157	1	GASKET	FLANGE
11	14H1000	4	Nut	0.112"
12	12H354	4	LOCK WASHER	0.112" INTERNAL TOOTH, (SUB FOR T61155)
13	AT58740	1	ELECTRICAL CONNECTOR ASSY	-
14	37H25	4	SCREW	(SUB FOR (4) T61156)
15	T61158	1	COVER	-
16	T61159	1	SCREW	-
17	T61160	1	COMPRESSION SPRING	COMPRESSION
18	T61147	1	FOLLOWER	BALL
19	A4742R	2	Ball	STEEL
20	T61161	1	SLEEVE	BALL HOLDER
21	T61146	1	STUD	-
22	T61151	1	HOUSING	-
23	T34977	1	ROUND RETAINER	-
24	T61145	1	GUIDE	-
25	T34974	1	SPRING	CENTERING
26	T34975	1	ROUND RETAINER	-
27	T34973	1	WASHER	-
28	T34992	1	BUSHING	-
29	AT58739	1	DETENT	ELECTRO-MAGNETIC
30	U17397	1	HOUSING	-
31	U15192	1	O-Ring	-
32	T75984	1	O-Ring	(SUB FOR T15710, THIS APPLICATION)
33	U17398	1	RETAINER	-
34	U17411	1	BALL	-
35	R495R	2	O-Ring	(SUB FOR T57248)
36	-	1	Part 36	(SUB AT151262) (ALSO ORDER AT151244) (SUB FOR AT104192)
37	U15242	2	O-RING	-
38	AU14302	1	PRESSURE RELIEF VALVE	-
39	T44948	2	O-Ring	-
40	T30424	1	O-RING	-
41	T30423	2	O-RING	-
42	U17393	1	FITTING	-
43	U17409	1	O-Ring	-
44	U17406	1	SPRING	-
45	U17396	1	POPPET	-
46	AT43790	1	RELIEF VALVE	-
47	-	1	Part 47	(SUB AT151262) (ALSO ORDER AT151244) (SUB FOR AT104192)
48	AT56549	1	SEAL KIT	-
49	T75982	2	BACK-UP RING	-
50	T75976	2	WASHER	-
51	T106147	1	PLATE	(SUB FOR T75974)
52	19H2701	4	SCREW	1/4" X 5/8"
53	12H302	4	Lock Washer	1/4"
54	AT151262	1	SPOOL VALVE	(ALSO ORDER AT151244) (SUB FOR AT104192)
