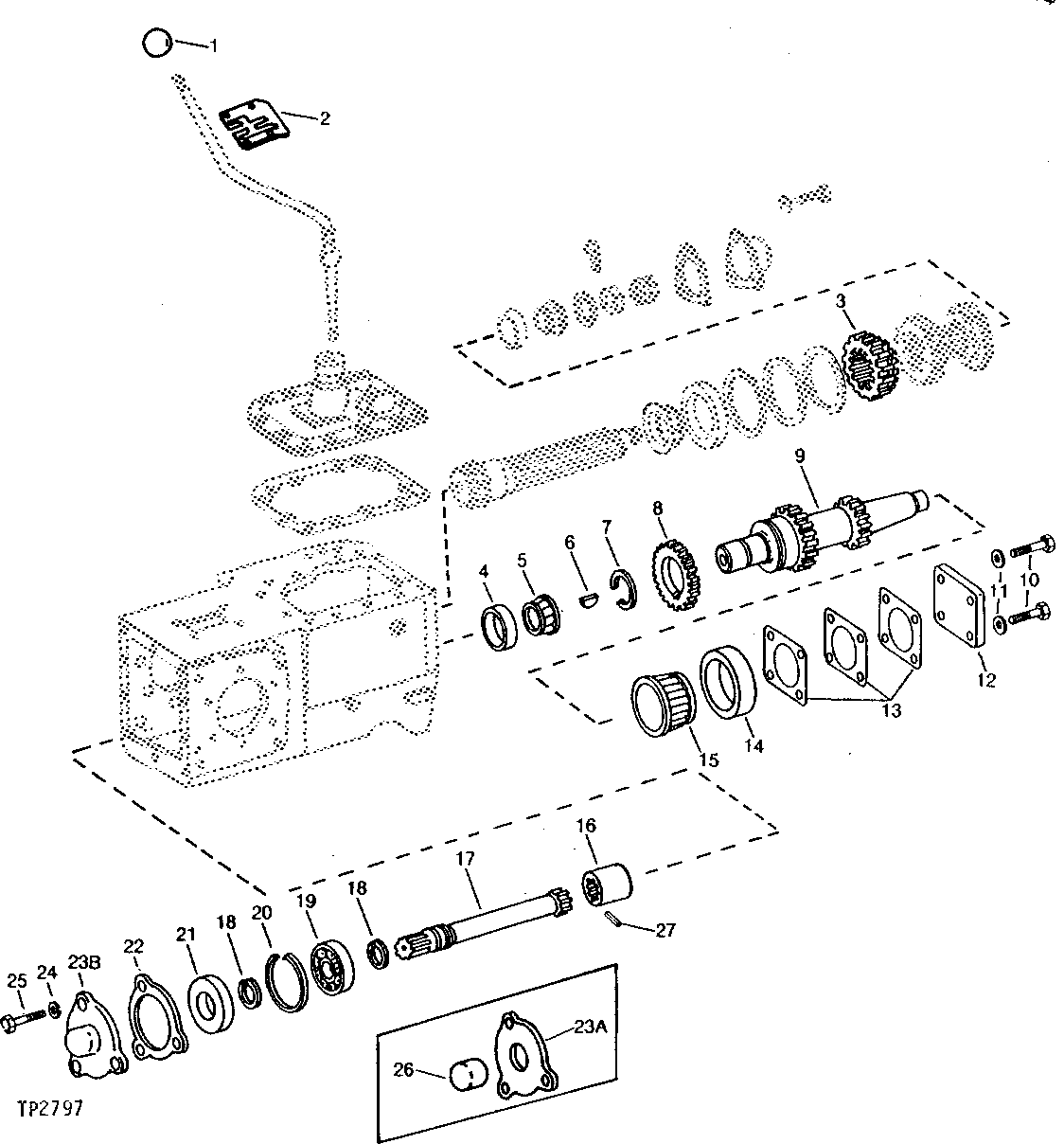

REDUCTION SHAFT WITH WINCH DRIVE OPTION [03H04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T11237	1	KNOB	(SUB FOR T21360)
2	T21359	1	GUIDE	-
3	T16326	1	GEAR	SECOND SPEED AND REVERSE
4	JD8230	1	Bearing Cup	-
5	JD8194	1	Bearing Cone	-
6	26H72	1	Shaft Key	1/8" X 5/8"
7	M2377T	1	Snap Ring	-
8	T16248	1	GEAR	(42 TEETH)
9	T37066	1	SHAFT	REDUCTION
10	19H2676	4	Cap Screw	3/8" X 1"
11	M359T	4	Washer	-
12	M234T	1	COVER	-
13	-	1	Part 13	(A) ( M136T NO LONGER AVAILABLE) 0.05 MM (.002") POWERSHAFT, FRONT
13	-	1	Part 14	(A) ( M137T NO LONGER AVAILABLE) 0.13 MM (.005") POWERSHAFT, FRONT
13	-	1	Part 15	(A) ( M138T NO LONGER AVAILABLE) 0.25 MM (.010") POWERSHAFT, FRONT
14	JD7443	1	BEARING CUP	-
15	JD7372	1	Bearing Cone	-
16	T24774	1	SPLINED COUPLING	-
17	T21346	1	SHAFT	-
18	M2353T	2	Snap Ring	-
19	JD9344	1	Ball Bearing	-
20	R43764	1	SNAP RING	-
21	T19388	1	Seal	OIL
22	T20941	1	GASKET	IF AVAILABLE
22	T84535	1	GASKET	(SUB FOR T20941)
24	12H293	3	Lock Washer	7/16"
25	19H3104	3	Cap Screw	7/16" X 1-1/4"
26	T21347	1	CAP	(SUB T64423) (USED WHEN WINCH HAS NOT BEEN INSTALLED)
27	34H385	1	Spring Pin	1/4" X 1-3/4"
23A	T21331	1	GUARD	(NOT REQUIRED WITH WINCH) (SUB T64423)
23B	T64423	1	SHIELD	(NOT REQUIRED WITH WINCH)
