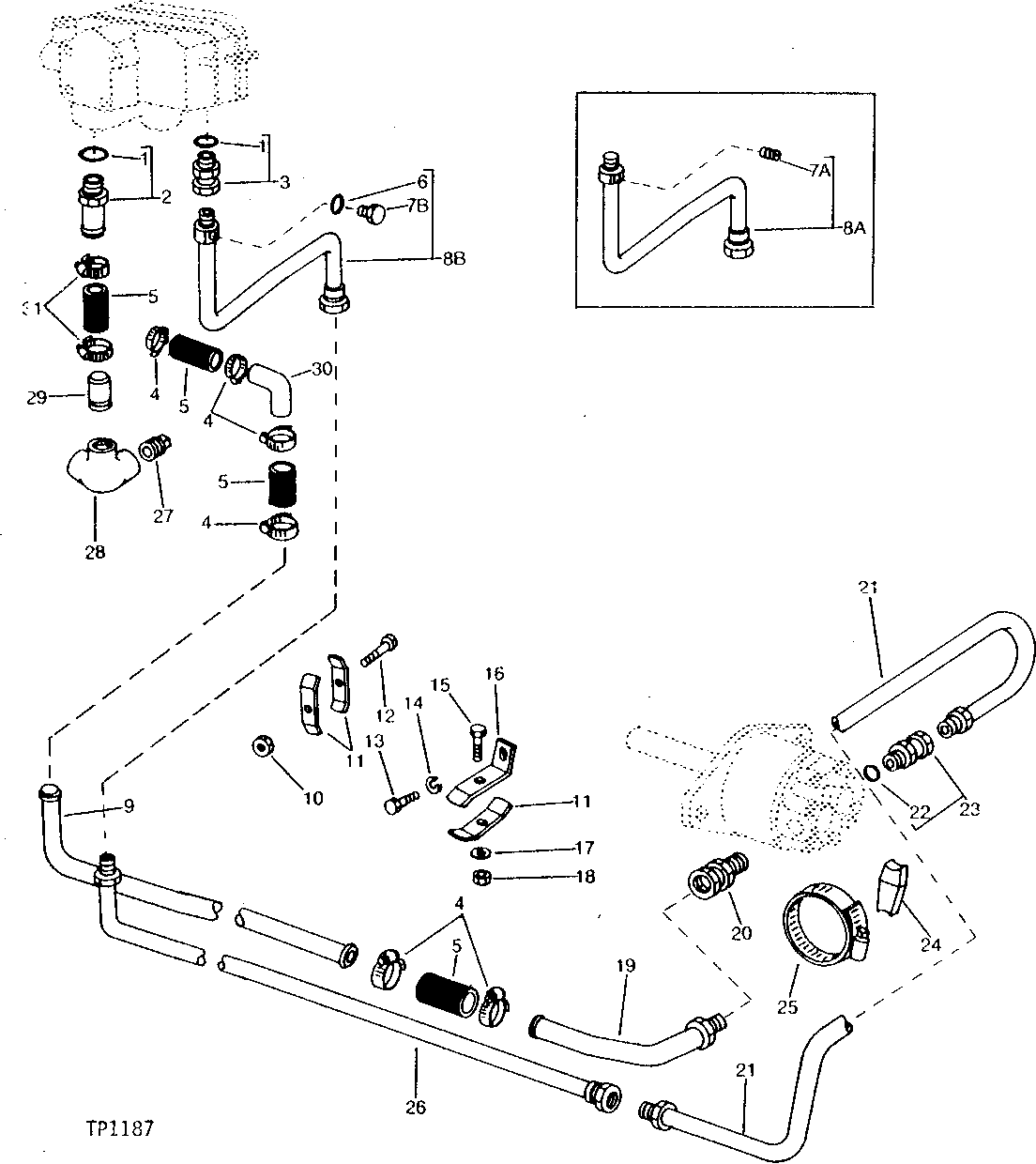

OIL LINES AND FITTINGS (LOADER PRESSURE AND RETURN CIRCUIT) [02J01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	2	O-Ring	-
2	AU14063	1	Hose Fitting	RETURN
3	AU13375	1	FITTING	UNION, 1" X 1-5/16"
4	AR21999	6	Hose Clamp	(SUB FOR AR21840)
5	L2033CU	3	HYDRAULIC HOSE	-
6	R26287	1	O-Ring	-
9	U17512	1	TUBE	SUCTION, INTERMEDIATE
10	T11234	2	Lock Nut	3/8"
11	U16862	3	CLAMP	-
12	19H3065	2	Cap Screw	3/8" X 2"
13	19H2664	1	Cap Screw	5/16" X 3/4"
14	24H1685	1	Washer	11/32" X 47/64" X 0.083"
15	19H3131	1	Cap Screw	5/16" X 2"
16	U16863	1	ANGLE	UPPER
17	24M7207	1	Washer	8.400 X 24 X 2 MM
18	T16464	1	Lock Nut	5/16"
19	AU14518	1	OIL TUBE	SUCTION, FRONT
20	JD150	1	UNION FITTING	UNION, 1" X 1"
21	AU14520	1	TUBE	(SUB AT55270) PRESSURE, FRONT
21	AT55270	1	OIL LINE	PRESSURE, FRONT
22	U12547	1	O-Ring	-
23	AU11654	1	FITTING	UNION, 3/4" X 1-1/16"
24	T25756	1	SPACER	-
25	AR21841	1	Clamp	-
26	AT52886	1	OIL LINE	PRESSURE, INTERMEDIATE
26	AU14509	1	TUBE	(SUB AT52886) PRESSURE, INTERMEDIATE
27	15H562	1	Pipe Plug	1", SQ. HD., CTSK.
28	U17033	1	ELBOW FITTING	SIDE OUTLET, 90°, 1"
29	29H747	1	THREADED NIPPLE	1" X 2-5/8"
30	T41113	1	TUBE	SUCTION
31	AR21999	2	Hose Clamp	(SUB FOR AR21840)
7A	U40054	1	Pipe Plug	PRESSURE TUBE
7B	R27216	1	DRAIN PLUG	-
8A	AU40772	1	TUBE	PRESSURE WITH PLUG, (SUB AT53364)
8B	AT53364	1	LINE	PRESSURE, WITH O-RING AND PLUG
