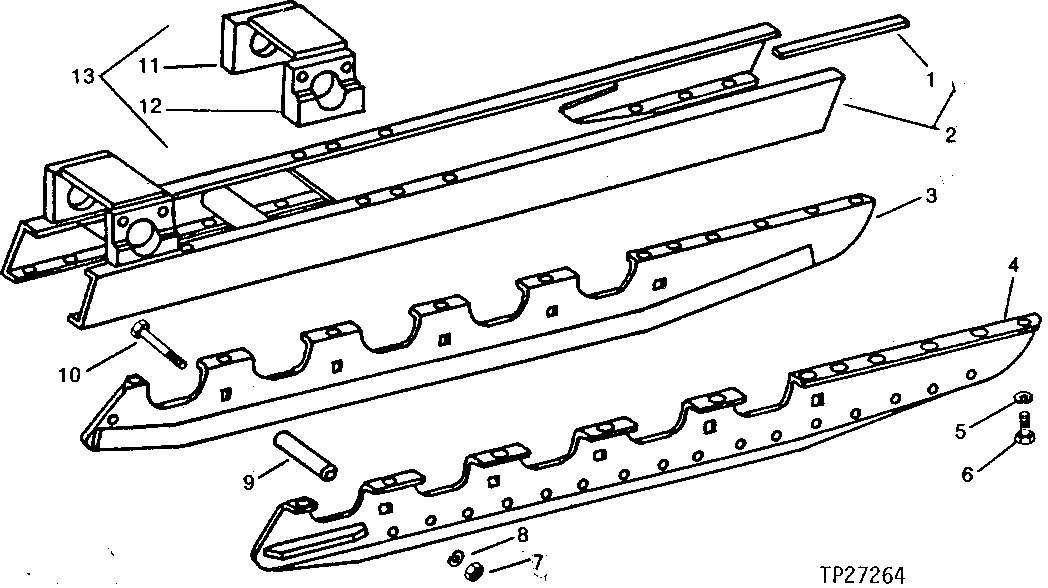

LOADER TRACK FRAMES AND ROCK GUARDS (SERIAL NO. -716749) [01B03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	4	Part 1	WEAR, (SUB (2) T126064) (SUB FOR AT18850 AND AT133230)
2	AT104813	1	FRAME	RIGHT WITH BRACKET (MUST BE TAPPED FOR 9/16" ROLLER BOLT) (SUB FOR AT45066 AND AT82508) (INCLUDES T126064) (WEAR STRIP)
2	AT104814	1	FRAME	LEFT WITH BRACKET (MUST BE TAPPED FOR 9/16" ROLLER BOLTS) (SUB FOR AT45067 AND AT82509) (INCLUDES T126064) (WEAR STRIP)
3	AT18872	2	GUARD	(INNER RIGHT AND OUTER LEFT)
4	AT18874	2	GUARD	(INNER LEFT AND OUTER RIGHT)
5	12H301	44	Lock Washer	1/2"
6	19H2643	44	Cap Screw	1/2" X 7/8"
7	14H1039	10	Nut	5/8"
8	12H294	10	Lock Washer	5/8"
9	28H1728	10	Bushing	-
10	03H2083	10	BOLT	5/8" X 8-1/4"
11	AT52178	1	BRACKET	(LEFT)
12	AT52177	1	BRACKET	(RIGHT)
13	-	2	Part 14	(AT52176 NO LONGER AVAILABLE) (SUB AT52177 AND AT52178) ((1) LEFT AND (1) RIGHT BRACKET FOR EACH SIDE) (REPLACEMENT)

LOADER TRACK FRAMES AND ROCK GUARDS (SERIAL NO. -716749) [01B03]

Нет текстового описания
