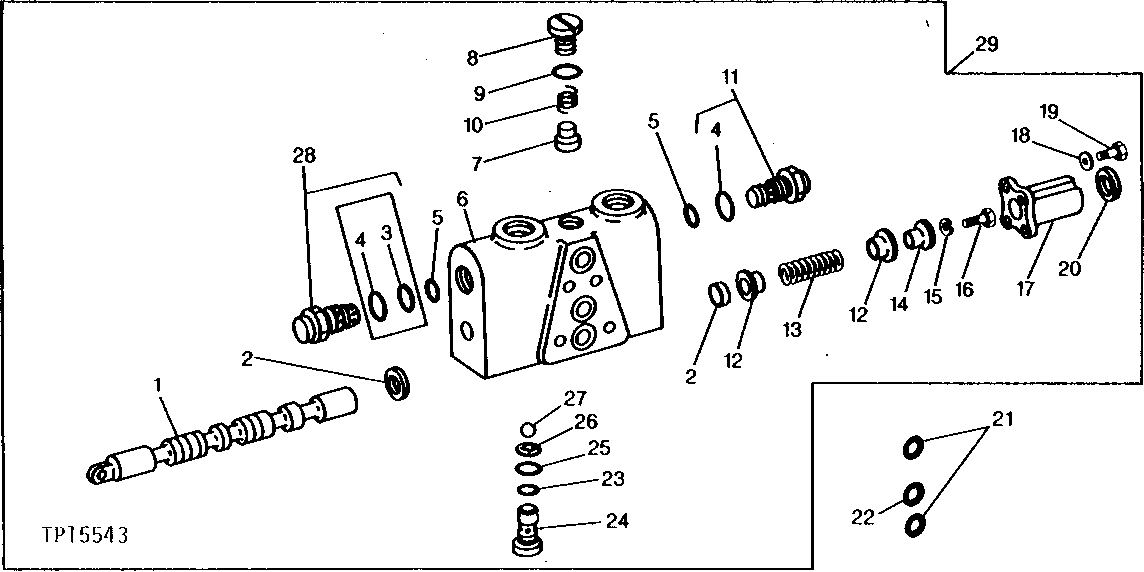

LOADER BUCKET VALVE SECTION (WITHOUT ELECTRIC RETURN-TO-DIG) (SERIAL NO. -294007) [02I07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	REGENERATION, (SUB AT43792)
2	T122063	2	O-RING	(A) (SUB FOR (2) T27593) V-TYPE
3	T44948	1	O-Ring	-
4	U15242	2	O-RING	(A)
5	T44948	2	O-Ring	(A) (SUB FOR U40424)
6	-	1	Part 6	(SUB AT43792)
7	U17396	1	POPPET	-
8	U17393	1	FITTING	-
9	U17409	1	O-Ring	(A)
10	U17406	1	SPRING	-
11	AT43790	1	RELIEF VALVE	8 619 KPA (86 BAR) (1250 PSI)
12	T75987	4	PLUG	(SUB FOR U17395)
13	T34974	2	SPRING	(SUB FOR U17403)
14	U17391	2	ROUND RETAINER	-
15	U11298	2	LOCK WASHER	SPLIT RING
16	19H3295	2	Screw	HS, SAE 8, 3/8" X 3/4", (SUB FOR U40662) SOCKET, HYDRAULIC,
17	T75985	1	COVER	(SUB FOR U17385)
18	12H302	4	Lock Washer	1/4"
19	21H1174	4	SCREW	1/4" X 1"
20	T75985	1	COVER	(SUB FOR U17387) BONNET, CAP
21	T30423	2	O-RING	-
22	T30424	1	O-RING	-
23	U15192	1	O-Ring	(A)
24	U17397	1	HOUSING	ANTI-CAVITATION, LOWER
25	T75984	1	O-Ring	(A) (SUB FOR T15710, THIS APPLICATION)
26	U17398	1	RETAINER	-
27	U17411	1	BALL	-
28	AU14302	1	PRESSURE RELIEF VALVE	RELIEF 17 238 KPA (173 BAR) (2500 PSI)
29	AT43792	1	VALVE	REGENERATIVE
30	AT56549	1	SEAL KIT	-
..	AU40433	1	SEAL KIT	REPAIR O-RING AND SEAL

LOADER BUCKET VALVE SECTION (WITHOUT ELECTRIC RETURN-TO-DIG) (SERIAL NO. -294007) [02I07]

Нет текстового описания
