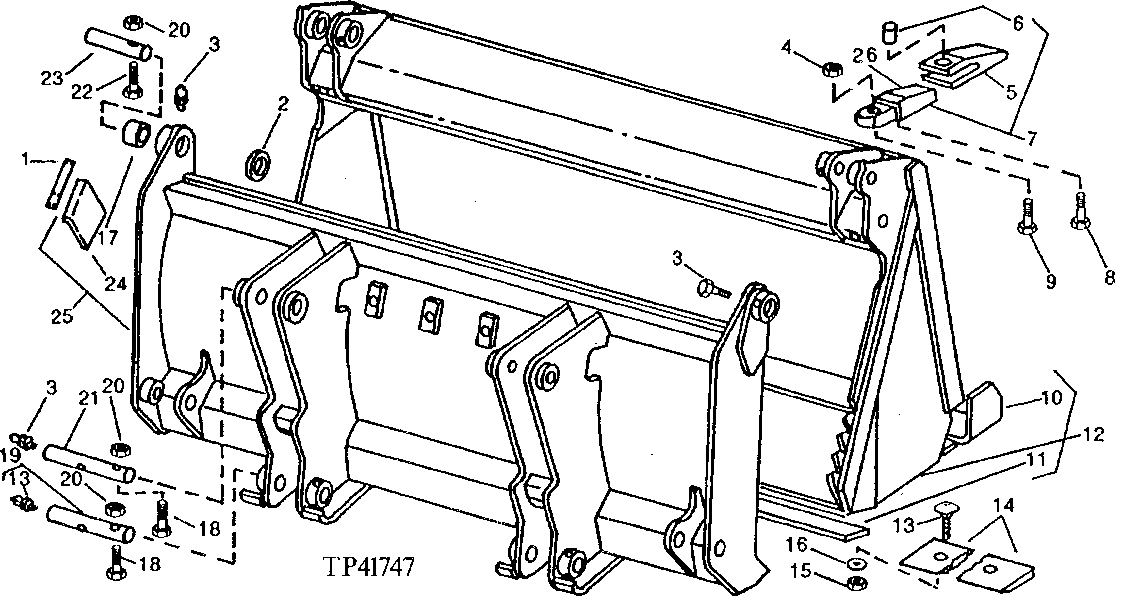

JOHN DEERE MULTI-PURPOSE BUCKET [02H13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T43671	1	LABEL	CLAM INDICATOR
2	24H1595	2	Washer	2-1/16" X 3" X 0.075"
3	JD7759	6	Lubrication Fitting	GREASE, STRAIGHT
4	H32811	16	Lock Nut	(SUB FOR U14502)
5	U13449	8	TOOTH	(ALSO ORDER 34M7070) TIP
6	T45155	8	SPRING PIN	GROOVE, 3/8" X 1-3/4"
7	-	8	Part 7	BUCKET ( AU40885 NO LONGER AVAILABLE)
8	10H1238	8	Bolt	HS, SAE 8, 1/2" X 2-3/4" NO. 3,
9	19H2735	8	Cap Screw	HS, SAE 8, 1/2" X 2"
10	T45864	1	DURA-MAX TM CUTTING EDGE	-
10	T84180	1	CUTTING EDGE	AUXILIARY - FOR USE WITH T45864, (USE WITH (8) BP12214 AND (8) 10H1238)
11	T45861	1	CUTTING EDGE	REAR
12	AT44608	1	CLAMSHELL BUCKET	(SUB AT53667)
12	AT53667	1	LOADER BUCKET	-
13	10H1047	7	Bolt	3/4" X 2-1/4", NO. 3
14	U16748	1	Cutting Edge	-
15	14H794	7	Nut	3/4"
16	12H236	7	Lock Washer	3/4"
17	U17220	2	BUSHING	-
18	19H1781	4	CAP SCREW	1/2" X 3-1/2"
19	AU14215	2	PIN FASTENER	LOWER BUCKET PIVOT
20	BP12214	6	Lock Nut	-
21	T32780	2	PIN FASTENER	UPPER BUCKET PIVOT
22	19H3550	2	Cap Screw	1/2" X 4"
23	T43502	2	PIN FASTENER	CLAM PIVOT
24	T43494	1	BUCKET LEVEL INDICATOR	-
25	AT44611	1	BLADE	-
26	U41344	8	BUCKET TOOTH ADAPTER	-
..	-	1	Part 29	( AT44627 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS) (FOR TRACTORS WITHOUT THIRD FUNCTION HYDRAULICS, (FOR TRACTORS WITHOUT REAR EQUIPMENT, ALSO ORDER AT36416 MOUNTING PARTS AND T33431 COUNTERWEIGHT)
