HYDRAULIC REVERSER OIL COOLER LINES [01D11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T26392	1	HOSE FITTING	-
2	AR21837	4	Clamp	-
2	AR21837	4	Clamp	-
3	T18513	1	HYDRAULIC HOSE - FABRICATE	13 MM X 444 MM (1/2" X 17-1/2")
4	T38040	1	Hose Fitting	(SUB FOR T18250)
6	T14073	2	Clamp	-
7	T16464	1	Lock Nut	-
8	-	2	Part 10	(CUT TO 2.68") (MAKE FROM TY22327) (SUB FOR T21148 AND T23092)
11	T20963	1	CLAMP	-
12	12H304	1	Lock Washer	3/8"
13	19H3385	1	Cap Screw	1/2" X 1-1/8"
15	M2395T	2	BUSHING	-
16	28H1686	1	Spacer	1/4" X 5/8"
17	19H3552	1	Cap Screw	5/16" X 1-1/2"
18	-	1	Part 23	(MAKE FROM TY22327) (SUB FOR T26393) 13 MM X 140 MM (1/2" X 5-1/2")
5A	T20958	1	OIL LINE	FRONT COOLER OUTLET, (SUB AT52312 AND AT52313)
5B	AT52312	1	OIL LINE	FRONT COOLER OUTLET
9A	AT18614	1	OIL LINE	REAR COOLER OUTLET, (SUB AT52312 AND AT52313)
9B	AT52313	1	OIL LINE	REAR COOLER OUTLET
10A	AT18616	1	OIL LINE	(SUB AT52314 AND AT52315) REAR COOLER INLET
10B	AT52314	1	OIL LINE	REAR COOLER INLET
14A	T20961	1	OIL LINE	FRONT COOLER INLET, (SUB AT52314 AND AT52315)
14B	AT52315	1	OIL LINE	FRONT COOLER INLET

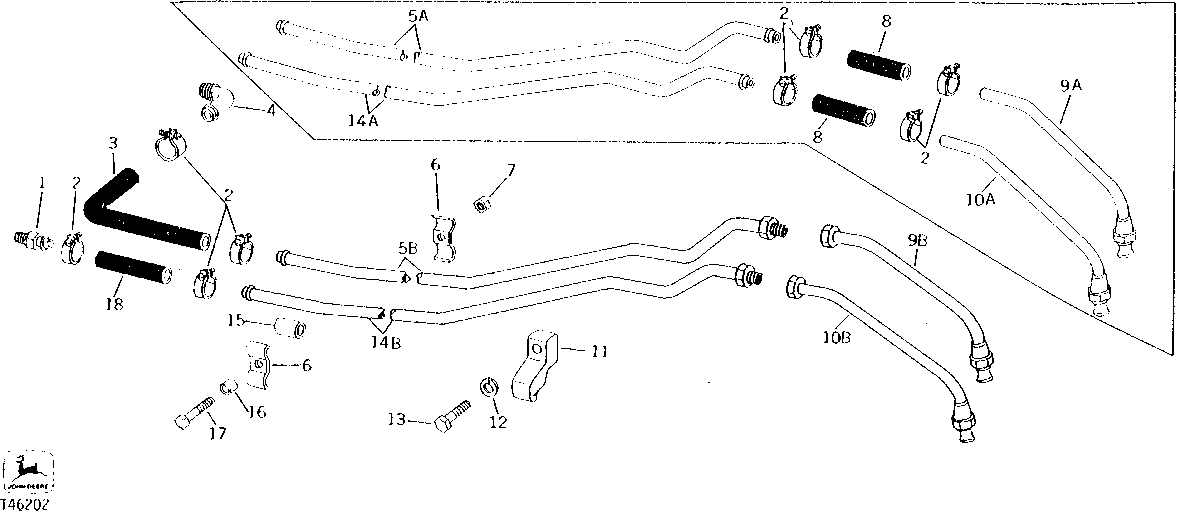

HYDRAULIC REVERSER OIL COOLER LINES [01D11]
