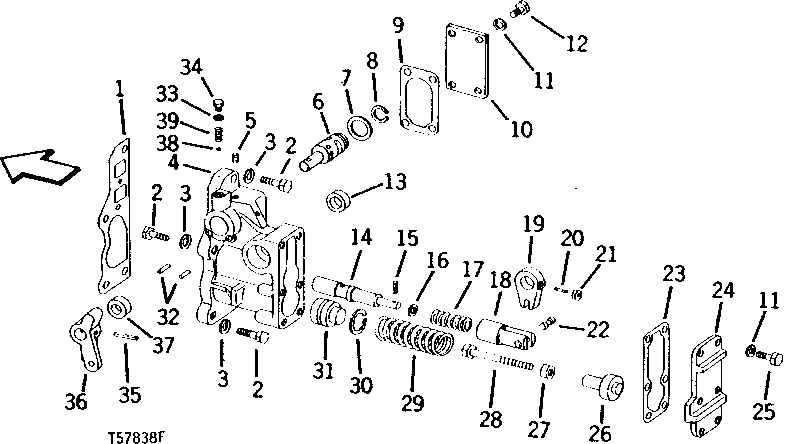

HYDRAULIC REVERSER ACCUMULATOR HOUSING ASSEMBLY [01D07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T84539	1	GASKET	(SUB FOR T23860)
1	T23860	1	GASKET	IF AVAILABLE
2	19H2993	4	Cap Screw	1/2" X 1-1/2"
3	12H301	4	Lock Washer	1/2"
4	T37792	1	HOUSING	-
5	15H558	1	Pipe Plug	1/8", HEX. CTSK.
6	T37793	1	FLOW CONTROL HYD. VALVE	FORWARD-REVERSE CLUTCH
7	24H1226	1	Washer	1/2" X 1-1/4" X 0.083", (SUB FOR 24H1474)
8	T13958	1	SNAP RING	-
9	T13951	1	GASKET	-
10	T13955	1	STRAP	-
11	12H304	10	Lock Washer	3/8"
12	19H1648	4	Cap Screw	3/8" X 3/4"
13	AM586T	1	SEAL	OIL
14	T23855	1	FLOW CONTROL HYD. VALVE	CLUTCH
15	34H243	1	SPRING PIN	1/8" X 1/2"
16	24H1341	1	Washer	17/32" X 15/16" X 0.060"
17	T23856	1	Spring	-
18	T23857	1	PISTON	CLUTCH VALVE
19	T13962	1	LEVER	CLUTCH VALVE
20	22H1006	1	SET SCREW	5/16" X 7/8"
21	14H611	1	Nut	5/16"
22	T13961	1	PIN	-
23	T13947	1	GASKET	IF AVAILABLE
23	T84540	1	GASKET	(SUB FOR T13947)
24	T13942	1	COVER	-
25	19H3483	6	Cap Screw	3/8" X 1-1/8"
26	T13941	1	EXHAUST CAP	-
27	14H732	1	Nut	3/8"
28	19H2700	1	Cap Screw	3/8" X 4-1/2"
29	T13940	1	SPRING	-
30	R35627	1	RING	(SUB FOR T13959 AND T43865)
31	T13943	1	PISTON	ACCUMULATOR
32	34H312	2	Spring Pin	1/4" X 1"
33	R26287	1	O-Ring	-
34	R27216	1	DRAIN PLUG	(SUB FOR R31631)
35	34H284	1	Spring Pin	3/16" X 1-1/4"
36	T35406	1	LEVER	FORWARD-REVERSE CONTROL
37	AT12820	1	Seal	OIL
38	T13624	1	Ball	STEEL
39	T27716	1	Compression Spring	-
..	AT42445	1	CONTROL VALVE	(INCLUDES ALL PARTS ON THIS PAGE AND PAGE 0360-1)
